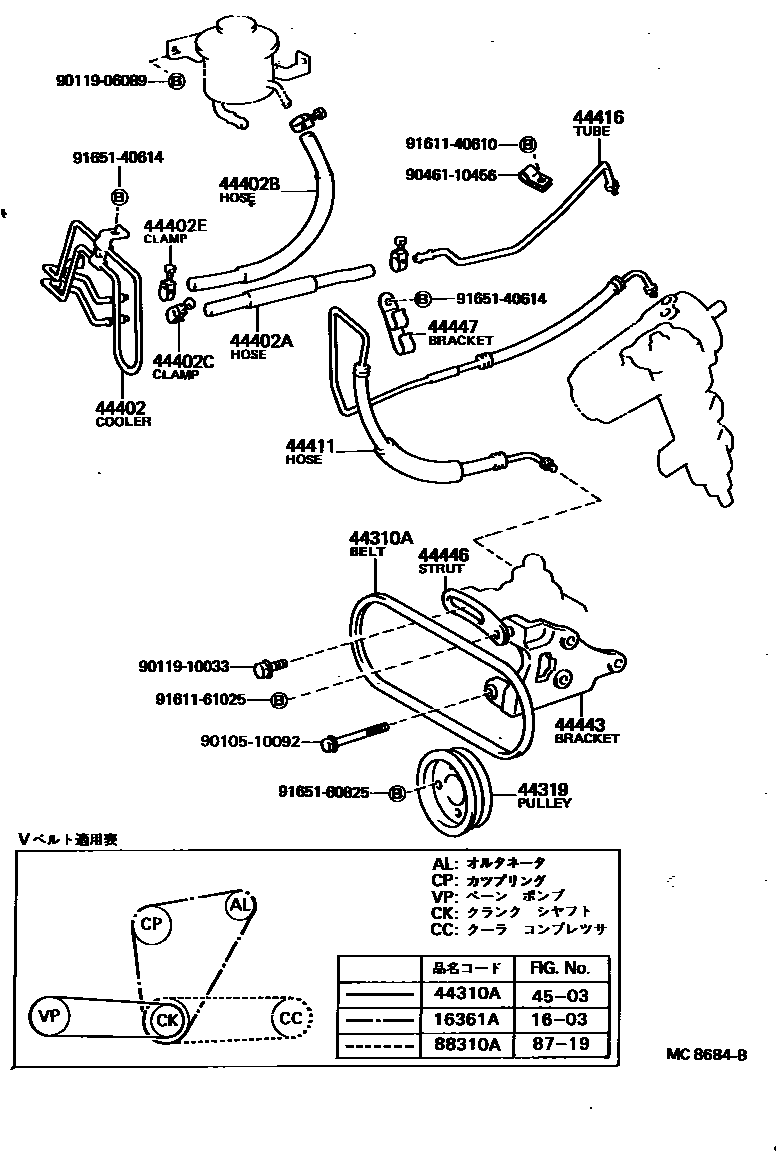

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02076iMTEU..MX61198110-198308

DOUBLE V BELTS,L=925

main90916-02119i2LTE..LX65198208-198211

DOUBLE V BELTS

main90916-02132i2LTE..LX65198211-198407

DOUBLE V BELTS

main90916-02133iL..LX60198211-198407

L=990

main99321-00850i18RGEU..RX63198009-198208

L=850

main99321-00885i13TU..TX60198009-198208

main99331-00880i21RU..RX60198009-198208

L=880

main99332-00985iL..LX60198009-198104

L=985

main99332-10985iL..LX60198104-198207

L=985

main99332-11000iL..LX60198207-198211

L=1000

main99332-51130i1GEU..GX6#198009-198308

main99363-01150i1SU..SX60198208-198407

main99364-01100i1GEU..GX61198308-198407

main99364-50830i2YPU..SX60198302-198407

*30

main99364-51160i1GGEU..GX61198208-198407

main99367-00920iMTEU..MX61198308-198407

44310ABELT, V(FOR VANE PUMP)

main90916-02080iLX6#198208-198407

main90916-02092iGX6#..EFI198009-198407

main90916-02107iMX61198110-198407

main99332-01055iSX60..LPG198302-198407

main99332-01080iTX60..XL198009-198208

main99332-51135iRX60198009-198208

main99363-00770iSX60..STD,XG,XL198208-198407

main99363-00960iGX61..TWC198208-198407

44319PULLEY, VANE PUMP DRIVE

main13477-18020iTX60..XL198009-198202

main13477-18021iTX60..XL198202-198208

main44319-14010iSX60..STD,XG,XL198208-198407

main44319-20010iSX60..LPG198302-198407

*30

main44319-30010iLX60198208-198305

main44319-30011iLX60198305-198407

main44319-30020iLX65198208-198407

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-22060iGX6#,MX61198009-198208

main44402-22090iGX61,MX61; SX60..STD,XG,XL198208-198407

44402AHOSE, POWER STEERING OIL COOLER INLET

main44412-22020iGX61198208-198407

main44412-22170iSX60..LPG198302-198407

main90445-18095iGX6#198009-198208

44402BHOSE, POWER STEERING OIL COOLER OUTLET

main44412-22020iMX61198204-198407

main44412-22030iGX6#,MX61198009-198204

main44412-22110iGX61..TWC; SX60..STD,XG,XL198208-198407

main44412-22160iSX60..LPG198302-198407

*30

44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE

main90460-01001×2iGX6#,MX61198009-198407

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-01001×2iGX6#,MX61198009-198407

44411HOSE, PRESSURE FEED

main44410-22031iTX60..XL198009-198208

main44411-22090iLX60,RX60..XG,XL198009-198208

main44411-22160iGX6#..EFI198009-198407

main44411-22210iMX61198110-198407

main44411-22230iLX60..DLX198208-198407

*30

main44411-22240iGX61..TWC198208-198407

main44411-22250iSX60..XG,XL198208-198407

main44411-22270iSX60..STD198208-198407

main44411-22300iSX60..LPG198302-198407

*30

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20020iLX60,RX60,TX60..XG,XL198009-198208

main44416-22090iGX6#,MX61198009-198407

44443BRACKET, PUMP

main44443-12010iTX60..XL198009-198208

main44443-14020iSX60..STD,XG,XL198208-198407

main44443-20030iRX60198009-198105

main44443-20031iRX60198105-198208

main44443-22020iLX60..XL198009-198208

main44443-22030iGX6#..EFI198009-198407

main44443-22050iGX61..TWC198208-198407

main44443-22060iLX6#198208-198407

main44443-28011iSX60..LPG198302-198407

*30

main44443-30070iMX61198110-198407

44446STRUT, ADJUSTING

main44446-14010iSX60..STD,XG,XL198208-198407

main44446-30050iLX6#198208-198407

main44446-30060iMX61198110-198407

44447BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT

main44447-22010iGX6#,MX61198009-198208

main44447-22030iGX61,MX61..EFI,TBO; SX60..STD,XG,XL198208-198407

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00880iGX6#..SGT,SXL198009-198109

main99322-00890iGX61..AVT; RX60198009-198109

main99322-00900iMX61..SGT198110-198208

main99322-00910iGX61..EFI198208-198308

main99322-00920iGX6#198109-198208

main99322-01240iRX63198009-198208

main99322-11250iLX65198208-198407

main99322-11270iLX60198009-198407

main99322-50950iTX60198009-198208

main99332-00910iMX61..AVT198110-198208

main99364-00850iGX61..EFI198308-198407

main99364-00860iGX61..TWC198208-198407

main99364-50810iSX60..CBR198208-198407

9010510092

main90105-10092

9011906089

main90119-06089

9011910033

main90119-10033

9046110456

main90461-10456

9161140610

main91611-40610

9161161025

main91611-61025

9165140614

main91651-40614

9165160825

main91651-60825

25 parts on this diagram · 8 diagrams in section
