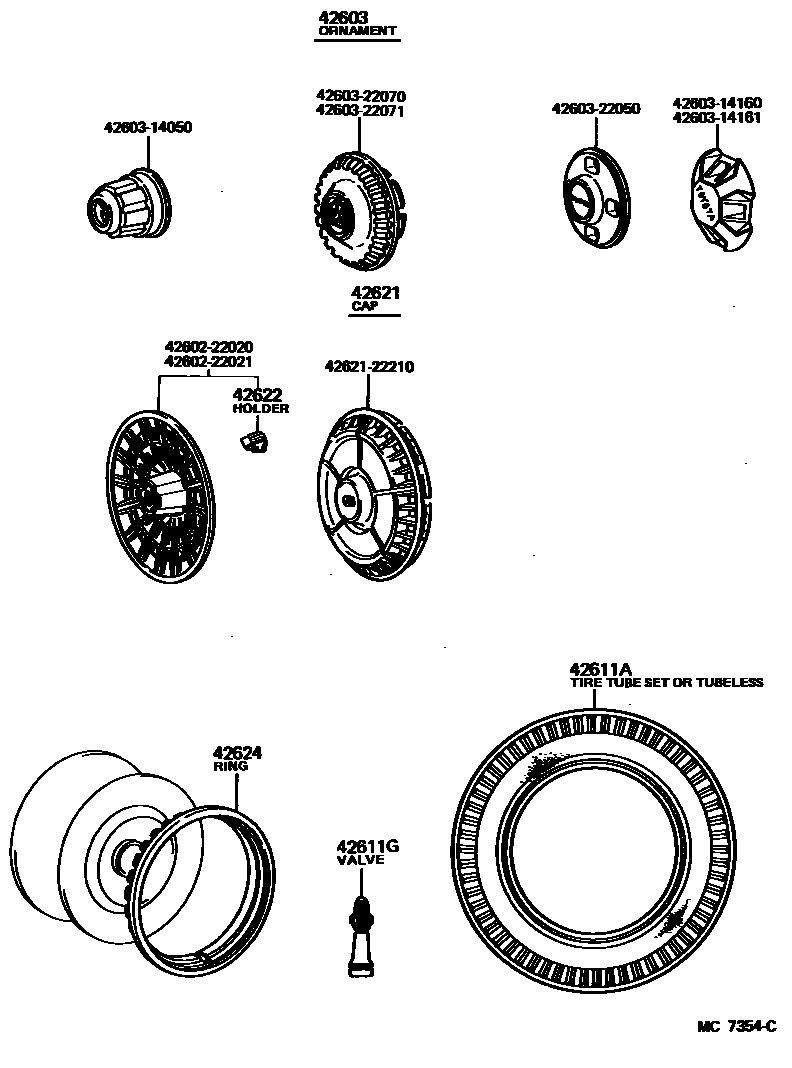

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14050×4iLX60,RX60,TX60..DLX,XL198009-198208

main42603-14160×4iMX61..AVT198208-198307

COLD SPEC

main42603-14161×4iMX61..AVT198307-198308

COLD SPEC

main42603-22050×4iGX61,MX61..AVT,SGT198208-198407

ALUMI WHEEL

main42603-22070×4iGX6#,RX6#..AVT,GT,SGT,SXL,XG; LX60..XL198009-198105

EXTRA

main42603-22071×4iGX6#,RX6#..GT,SGT,SXL,XG; LX60,MX61..SGT,XL198105-198208

EXTRA

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-22140×5iLX60,RX60,SX60,TX60..DLX,XL198105-198407

6.45-14-4,W/TUBE

main42652-14230×5iGX61..TWC198208-198407

195/70HR14

main42652-14350×5iGX61,MX61..AVT,SGT198208-198407

185/70SR14

main42652-22180×5iLX60,RX60,TX60198009-198105

6.45-14-4,TUBELESS

main42652-22240×5iGX60,LX60,RX60,TX60198009-198108

175SR14,TUBELESS

main42652-22250×4iGX61,MX61..AVT,SGT198403-198407

185/70HR14

main42652-22290×5iGX61,LX6#,SX60198208-198407

175SR14,TUBELESS

main42652-40040iGX61,LX6#,MX61,SX60198208-198407

T135/70D15,SPARE TIRE

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

42621CAP, WHEEL

main42602-22020×4iGX61..AVT198105-198109

main42602-22021×4iGX61,MX61..AVT198109-198407

main42602-22021-03×4iRX60..XG198109-198109

GX EXTRA,DARK SILVER METALLIC

main42621-22210×4iGX61,LX6#,MX61,SX60..SGT,SXL,XG,XL198208-198407

42622HOLDER, WHEEL CAP

main42622-30050×8iGX61,MX61..AVT198105-198407

42624RING, WHEEL CAP

main42624-14030×4iGX6#,LX60,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL198009-198105

main42624-14031×4iGX6#,LX60,MX61,RX6#,TX60..GT,SGT,SXL,XG,XL198202-198208

4260222020CAP SUB-ASSY, WHEEL

main42602-22020

4260222021CAP SUB-ASSY, WHEEL

main42602-22021

4260314050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14050

4260314160ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14160

4260314161ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14161

4260322050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-22050

4260322070ORNAMENT SUB-ASSY, WHEEL HUB

main42603-22070

4260322071ORNAMENT SUB-ASSY, WHEEL HUB

main42603-22071

4262122210CAP, WHEEL

main42621-22210

15 parts on this diagram · 2 diagrams in section
