TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

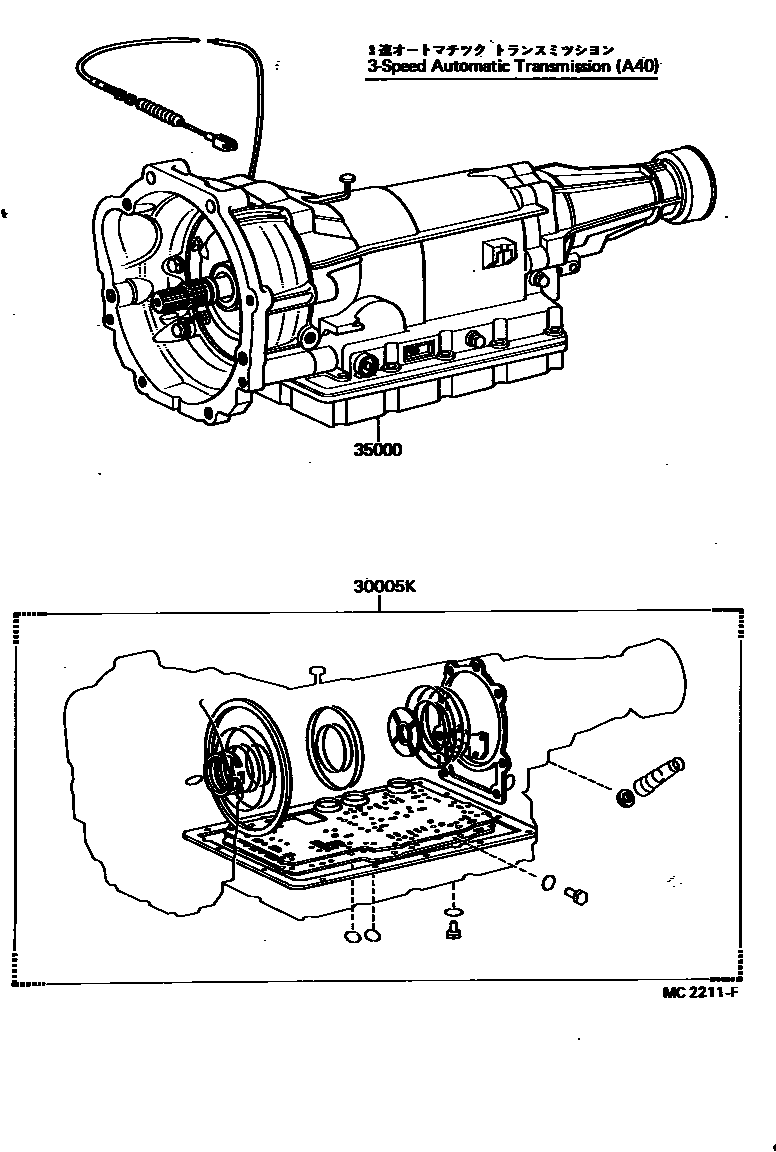

Parts diagram

30005KGASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-14011i198105-198108

A42DL

main04351-14012i198108-198209

A42DL

main04351-14013i198209-198407

main04351-22021i198009-198108

main04351-22022i198108-198108

main04351-22023i198108-198208

main04351-22031i198009-198108

A40D

main04351-22032i198208-198407

main04351-30060i198009-198104

main04351-30061i198104-198108

main04351-30062i198108-198209

main04351-30063i198209-198407

main04351-30071i198110-198209

main04351-30072i198209-198407

main04351-30083i198302-198407

35000TRANSMISSION ASSY, AUTOMATIC

main35000-22461i198009-198208

main35000-22613i198009-198108

main35000-22614i198108-198208

main35000-22641i198009-198208

A40D

main35000-22661i198009-198208

A40D,W/ESC

main35000-22720i198009-198202

main35000-22722i198202-198208

main35000-22870i198105-198208

A42DL

main35000-22880i198105-198208

A42DL,W/ESC

main35000-22890i198110-198208

main35000-2A040i198302-198407

W/ESC

main35000-2A060i198208-198407

main35000-2A070i198208-198407

main35000-2A080i198208-198407

W/ESC

main35000-2A120i198208-198308

main35000-2A121i198308-198407

main35000-2A140i198208-198407

main35000-2A180i198208-198407

main35000-2A200i198302-198407

2 parts on this diagram · 2 diagrams in section
