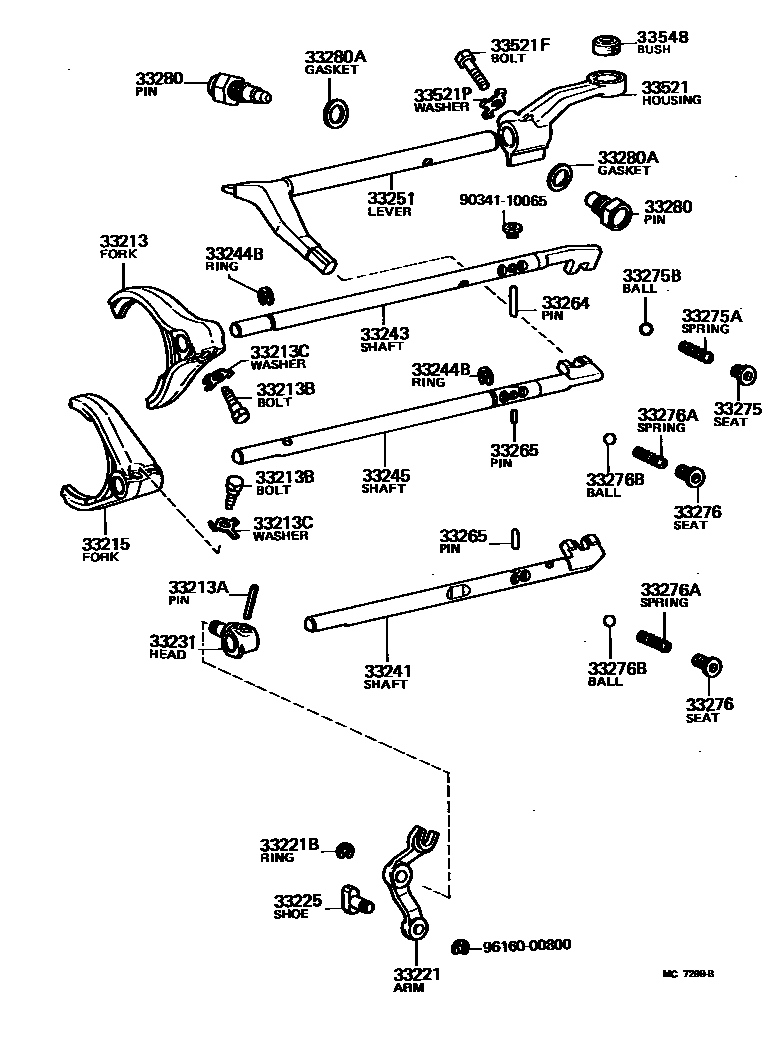

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1

33213FORK, 1ST & 2ND SHIFT

main33212-22020iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

sub33212-30050

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05016iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

33213BBOLT(FOR SHIFT FORK SET)

main90113-06005×2iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

sub90105-06143

33213CWASHER, LOCK(FOR SHIFT FORK SET)

main90215-09002×2iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

33215FORK, 3RD & 4TH SHIFT

main33213-22030iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

sub33213-22040

33221ARM, REVERSE SHIFT

main33221-22010iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

33221BRING, E(FOR REVERSE SHIFT ARM)

main90523-10002iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198304

main96160-01000iGX61,LX60,SX60..5F198304-198407

33225SHOE, SHIFT ARM

main33225-22010iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

33231HEAD, REVERSE SHIFT

main33231-22010iGX6#,LX60,RX6#,SX60..5F198009-198407

main33231-22020iGX60,RX60,TX60..4F198009-198208

33241SHAFT, REVERSE SHIFT FORK

main33241-22010iGX60,RX60,TX60..4F198009-198208

main33244-22020iGX6#,LX60,RX6#,SX60..5F198009-198407

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-22020iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)

main90520-12003×2iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

33245SHAFT, 3RD & 4TH SHIFT FORK

main33240-22020iGX61,LX60,SX60..5F198304-198407

sub33240-22021

main33243-22030iLX60,SX60..5F198301-198304

33251LEVER, SHIFT & SELECT

main33251-22030iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198301

main33251-22050iGX61..5F198301-198304

sub33251-22051

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-22010iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

33265PIN, SHIFT INTERLOCK, NO.2

main33265-22010iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

main33266-22010iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

main90250-06007iGX6#,LX60,RX6#,SX60..5F198009-198407

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90341-12004iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-13004iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

sub90501-14123

33275BBALL, SHAFT DETENT

main90360-10003iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main90341-12005×2iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

sub90341-12018

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-13004×2iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

sub90501-14123

33276BBALL, SHIFT DETENT, NO.2

main90360-10003×2iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

33280PIN ASSY, REVERSE RESTRICT

main33280-22020iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

RH

main33280-22030iGX6#,LX60,RX6#,SX60..5F198009-198407

LH

main90341-18009iGX60,RX60,TX60..4F198009-198208

LH

33280AGASKET, REVERSE RESTRICT PIN

main90430-18007×2iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

sub90430-18008

33521HOUSING, SHIFT LEVER

main33502-22180iGX6#,LX60,RX6#..5F198102-198407

main33502-22190iGX60,RX60..4F198102-198208

main33502-22200iTX60..4F198102-198208

main33502-22210iSX60..5F198208-198407

sub33502-30260

main33521-22100iGX6#,LX60,RX6#..5F198009-198102

main33521-22110iGX60,RX60..4F198009-198102

main33521-22120iTX60..4F198009-198102

33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)

main90105-08079iGX61,LX60,SX60..5F198303-198407

main90113-08001iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198303

33521PWASHER, LOCK (FOR SHIFT LEVER HOUSING)

main90215-09001iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198303

33548BUSH, SHIFT LEVER

main33548-31010iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

9034110065

main90341-10065

9616000800

main96160-00800

30 parts on this diagram · 2 diagrams in section
