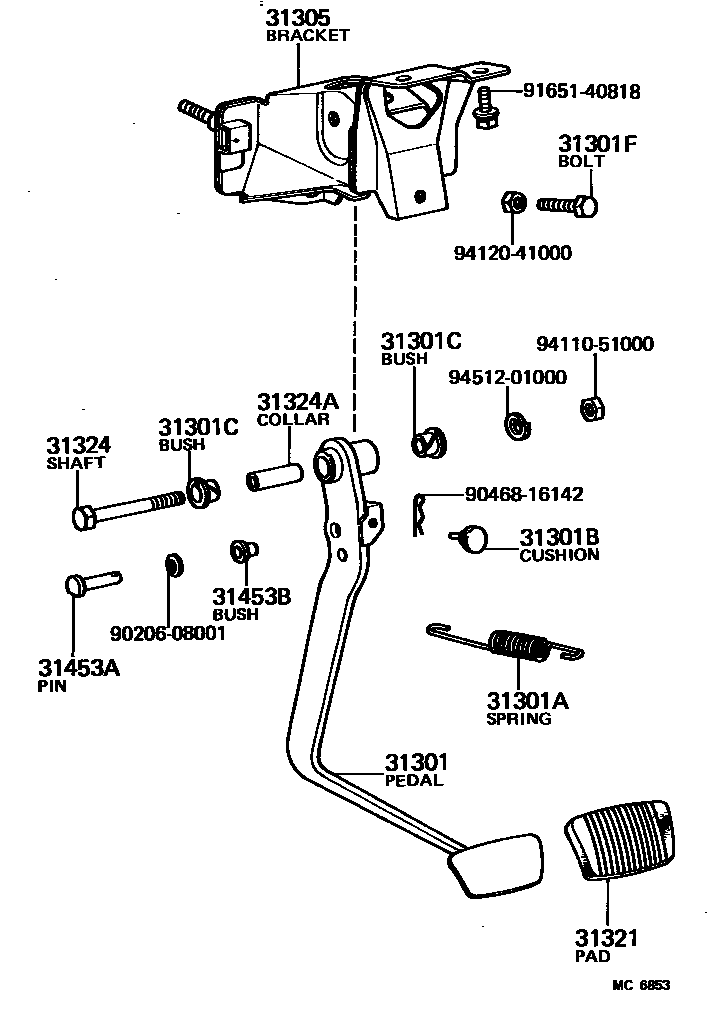

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-22080iGX6#,LX60,RX6#,TX60..MTM198009-198208

main31301-22100iGX61,LX60,SX60..5F..(CBR,DSL,EFI)198208-198407

main31301-22120iGX61..5F..TWC198208-198407

31301ASPRING(FOR CLUTCH PEDAL)

main90506-12467iGX6#,LX60,RX6#,TX60..MTM198009-198208

main90507-20005iGX61..5F..TWC198208-198407

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iGX6#,LX60,RX6#,TX60..MTM198009-198208

main90541-07010iGX61..5F..TWC198208-198407

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13192×2iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

31305BRACKET SUB-ASSY, CLUTCH PEDAL

main55107-22050iTX60..4F198009-198208

main55107-22070iGX6#,LX60,RX6#..MTM198009-198208

main55107-22090iGX61..5F..TWC198208-198407

31321PAD, CLUTCH PEDAL

main31321-30040iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

31324SHAFT, CLUTCH PEDAL

main90101-10039iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iGX6#,LX60,RX6#,SX60,TX60..MTM198207-198407

main90240-08027iGX6#,LX60,RX6#..MTM198009-198207

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

9020608001

main90206-08001

9046816142

main90468-16142

9165140818

main91651-40818

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

17 parts on this diagram · 4 diagrams in section
