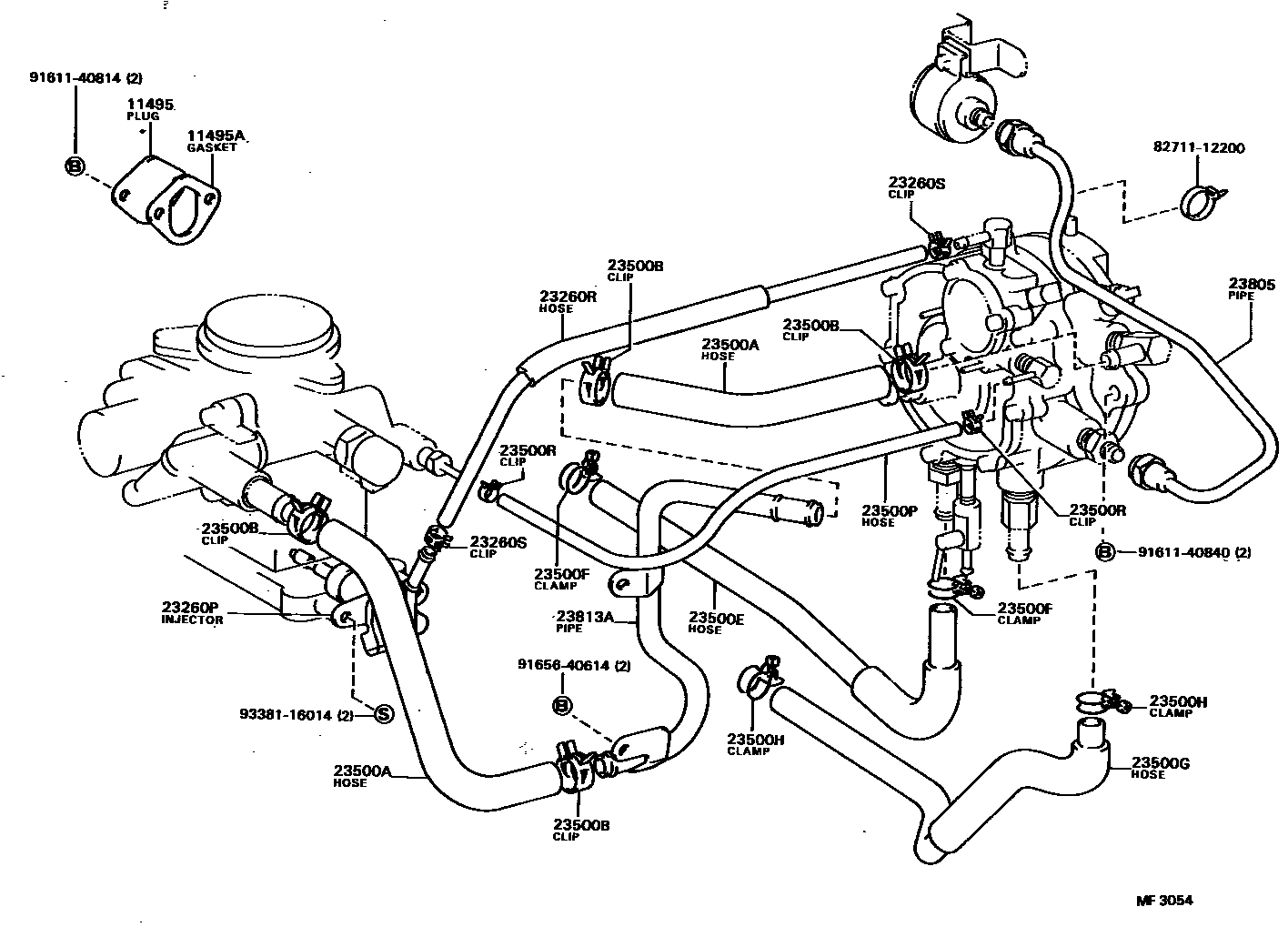

LPG(CARBURETOR) FUEL PIPE

11495PLUG, PLATE(FOR CYLINDER BLOCK)

main11495-40010i2YPU..SX60198302-198407

*30

11495AGASKET, FUEL PUMP(FOR CYLINDER BLOCK PLATE PLUG)

main90923-05005i2YPU..SX60198302-198407

*30

23260PINJECTOR ASSY, LPG

main23260-72010i2YPU..SX60198302-198407

*30

23260RHOSE, LPG INJECTOR

main23274-72020i2YPU..SX60198302-198407

*30

23260SCLAMP OR CLIP(FOR LPG INJECTOR HOSE)

main90467-13001×2i2YPU..SX60198302-198407

*30

23500AHOSE, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR)

main23271-72020i2YPU..SX60198302-198407

*30,REGULATOR SIDE

main23273-72020i2YPU..SX60198302-198407

*30,CARBURETOR SIDE

23500BCLAMP OR CLIP, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR)

main90467-20134×4i2YPU..SX60198302-198407

*30

23500EHOSE, WATER(FOR LPG REGULATOR INLET)

main16261-72040i2YPU..SX60198302-198407

*30

23500FCLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE)

main96112-10220×2i2YPU..SX60198302-198407

*30

23500GHOSE, WATER(FOR LPG REGULATOR OUTLET)

main16264-72010i2YPU..SX60198302-198407

*30

23500HCLAMP OR CLIP(FOR LPG REGULATOR OUTLET WATER HOSE)

main96112-10220×2i2YPU..SX60198302-198407

*30

23500PHOSE, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR)

main23820-72010i2YPU..SX60198302-198407

*30

23500RCLAMP OR CLIP, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR)

main96132-30400×2i2YPU..SX60198302-198407

*30

23805PIPE SUB-ASSY, LPG REGULATOR

main23805-72020i2YPU..SX60198302-198407

*30

23813APIPE, LPG FUEL

main23813-72020i2YPU..SX60198302-198407

*30

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9161140814

main91611-40814

9161140840

main91611-40840

9165640614

main91656-40614

9338116014

main93381-16014

20 parts on this diagram · 1 diagram in section
