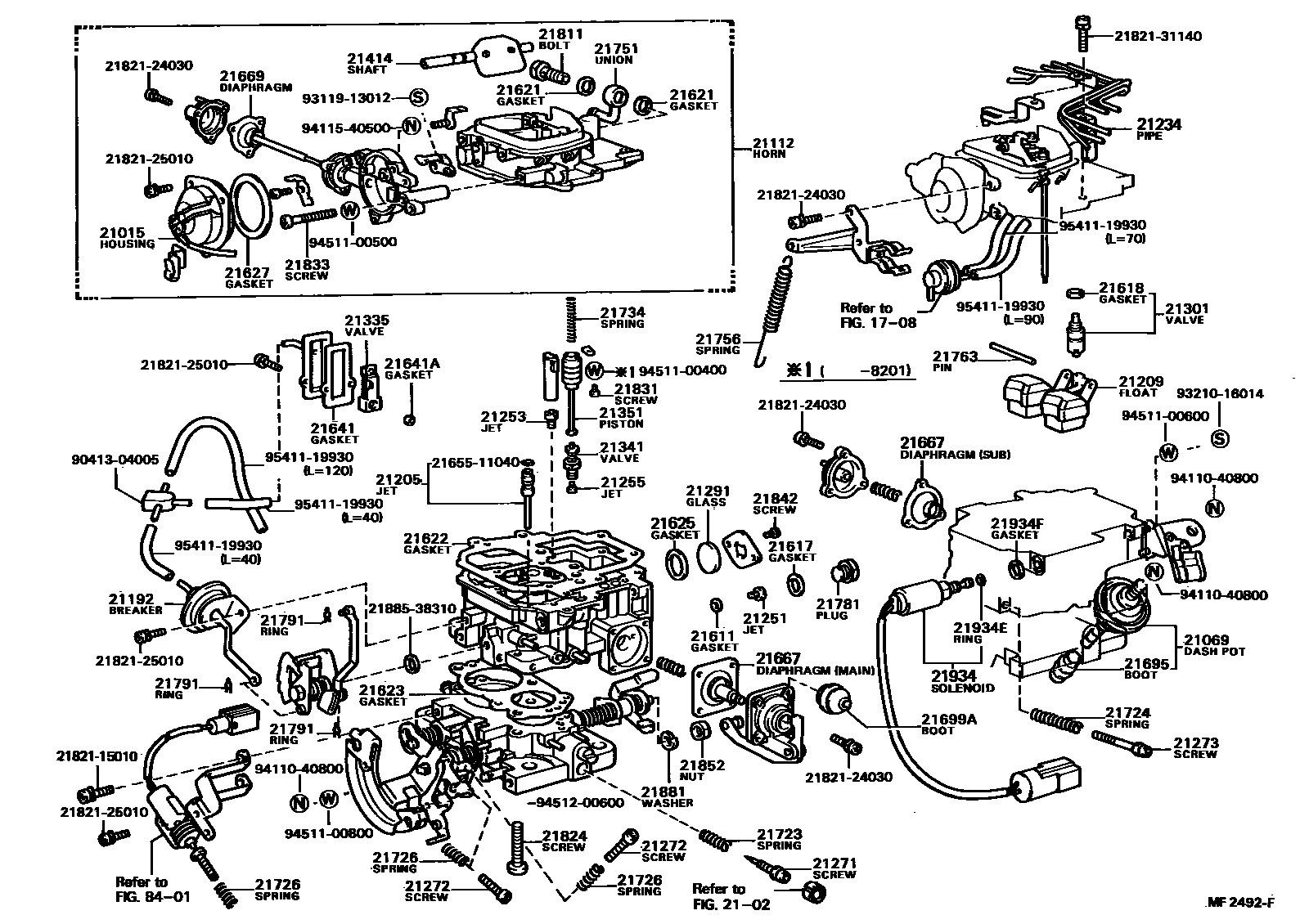

CARBURETOR
1708
21015HOUSING SUB-ASSY, COIL
2102
21069DASH POT SUB-ASSY
21112HORN, AIR
21192BREAKER
21205JET SUB-ASSY, SLOW
21251JET, 1ST MAIN
ID=1.01
ID=1.03
ID=1.14
ID=1.16
21253JET, 2ND MAIN
ID=1.56
ID=1.80
21255JET, POWER
ID=0.47
ID=0.50
21272SCREW, 1ST IDLE ADJUSTING
21273SCREW, THROTTLE ADJUSTING
21301VALVE SUB-ASSY, NEEDLE
21335VALVE, THERMOSTATIC
21341VALVE, POWER
21351PISTON, POWER
21611GASKET, MAIN JET
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21621GASKET, UNION NIPPLE
21625GASKET, LEVEL GAGE
21641GASKET(FOR THERMOSTATIC VALVE COVER)
21641AGASKET(FOR THERMOSTATIC VALVE COVER NO.2)
21695BOOT(FOR DASH POT)
21699BOOT(FOR PUMP PLUNGER)
21699ABOOT(FOR ACCELERATION PUMP)
21723SPRING, IDLE ADJUSTING
21724SPRING, THROTTLE ADJUSTING
21726SPRING, 1ST IDLE ADJUSTING
21734SPRING, POWER PISTON
21751UNION, NIPPLE
21756SPRING, BACK(FOR THROTTLE SHAFT)
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
sub21791-13011
21811BOLT, UNION NIPPLE
21824SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)
21831SCREW, POWER PISTON STOP
*4-0.7PX9.1-6.5
21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21852NUT, THROTTLE LEVER SET
21881WASHER, LOCK(FOR THROTTLE SHAFT)
21934ERING, O(FOR SOLENOID VALVE)
21934FGASKET
8401
2165511040RING, O(FOR LIFTER ROD)
main21655-11040
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182124030SCREW, 2ND THROTTLE VALVE SET
main21821-24030
2182125010SCREW, 2ND THROTTLE VALVE SET
main21821-25010
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2188538310
main21885-38310
9041304005
main90413-04005
9311913012
main93119-13012
9321016014
main93210-16014
9411040800
main94110-40800
9411540500
main94115-40500
9451100400
main94511-00400
9451100500
main94511-00500
9451100600
main94511-00600
9451100800
main94511-00800
9451200600
main94512-00600
9541119930
main95411-19930
73 parts on this diagram · 5 diagrams in section
