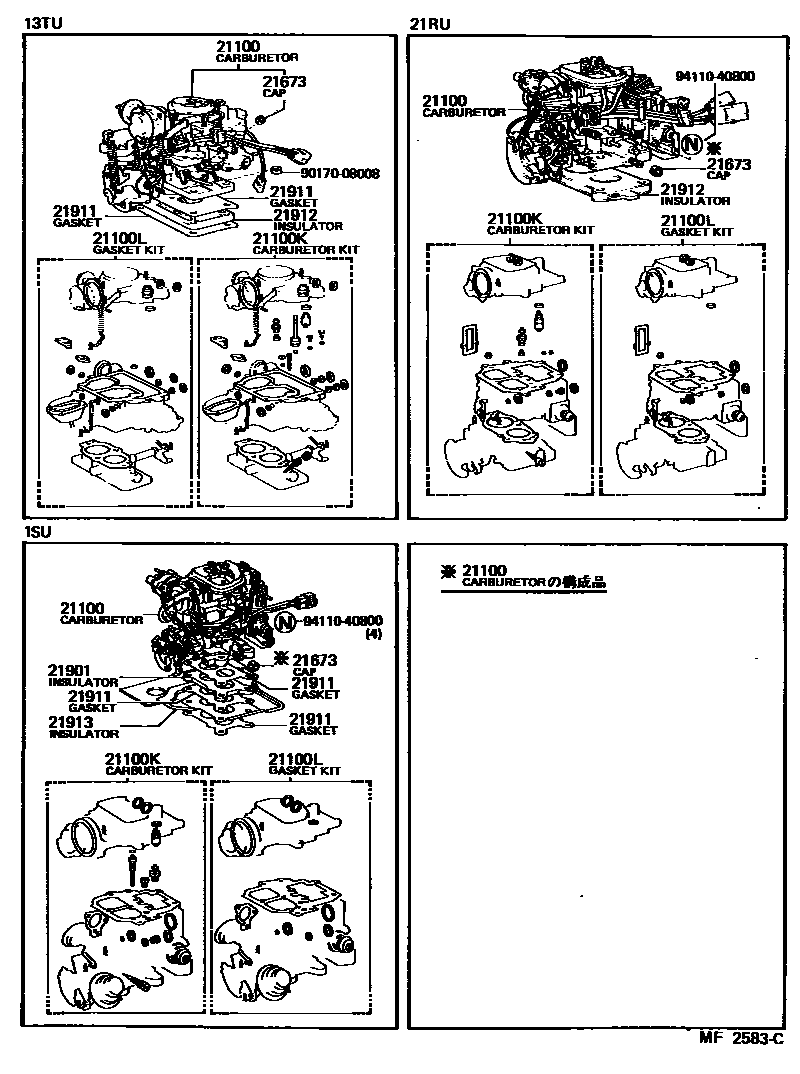

CARBURETOR ASSEMBLY

21100CARBURETOR ASSY

main21100-18090i13TU..TX60..3FC198009-198208

main21100-18130i13TU..TX60..4F198009-198208

main21100-37040i21RU..RX60198009-198208

main21100-63070i1SU..SX60..5F198208-198308

main21100-63080i1SU..SX60..4FC198208-198308

main21100-63160i1SU..SX60..5F198307-198308

COLD SPEC

main21100-63160i1SU..SX60..5F198308-198407

main21100-63170i1SU..SX60..4FC198308-198407

main21100-63170i1SU..SX60..4FC198307-198308

COLD SPEC

21100KCARBURETOR KIT

main04211-18061i13TU..TX60..3FC198009-198208

main04211-18080i13TU..TX60..4F198009-198208

main04211-37020i21RU..RX60198009-198208

main04211-63031i1SU..SX60198208-198407

21100LGASKET KIT, CARBURETOR

main04212-18010i13TU..TX60..4F198009-198208

main04212-28012i13TU..TX60..3FC198009-198208

main04212-37040i21RU..RX60198009-198012

main04212-37041i21RU..RX60198012-198208

main04212-63010i1SU..SX60198208-198407

21673CAP, IDLE LIMIT

main21673-13280i13TU..TX60198206-198407

main21673-38020i21RU..RX60198009-198206

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-63010i1SU..SX60198208-198407

21911GASKET, CARBURETOR

main21911-26010i13TU..TX60198009-198208

main21911-63010i1SU..SX60198208-198407

21912INSULATOR, CARBURETOR HEAT

main21912-26021i13TU..TX60198009-198208

main21912-37020i21RU..RX60198009-198208

21913INSULATOR, CARBURETOR HEAT, NO.2

main21902-63010i1SU..SX60198208-198405

main21902-63011i1SU..SX60198405-198407

9017008008

main90170-08008

9411040800

main94110-40800

10 parts on this diagram · 1 diagram in section
