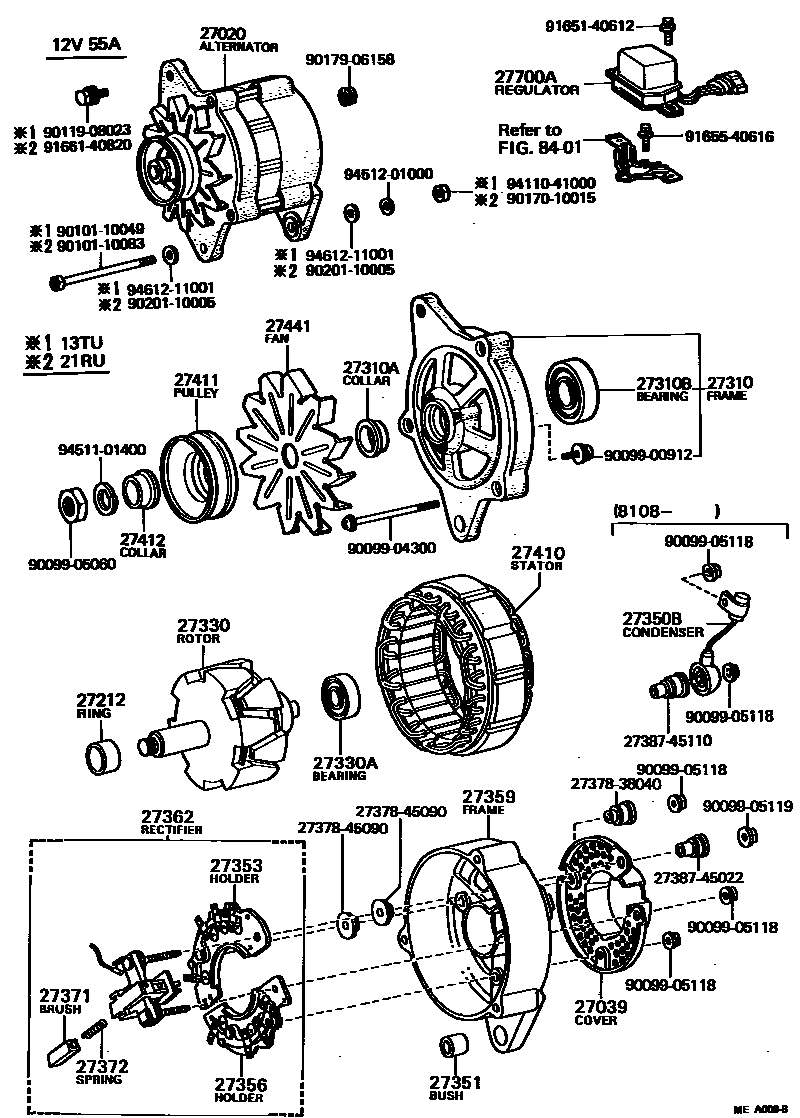

ALTERNATOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0010 1 0011 1 0012 1 0013 1

27020ALTERNATOR ASSY

main27020-34021i21RU,13TU..RX60,TX60198009-198208

main27020-54012iL..LX60198009-198407

main27020-54070iL..LX60198009-198407

main27020-54180i2LTE..LX65198208-198407

main27020-63010i1SU..SX60198208-198407

main27020-70010i1GEU..GX6#198009-198208

12V 55A

main27020-70020i1GEU..GX6#198009-198208

12V 60A

main27060-34020i18RGEU..RX63198009-198208

12V 60A

main27060-43020iMTEU..MX61198110-198208

main27060-43030iMTEU..MX61198110-198308

main27060-43060iMTEU..MX61198308-198407

main27060-70040i1GEU..GX61198208-198308

main27060-70050i1GGEU..GX61198208-198407

main27060-70080i1GEU..GX61198308-198407

main27060-72020i2YPU..SX60198302-198407

27039COVER, ALTERNATOR REAR END

main27039-45110i21RU,13TU..RX60,TX60198009-198208

12V 55A

main27039-56090iL..LX60198009-198407

12V 55A

main27039-63020i1GGEU..GX61198208-198303

12V 70A

main27039-63021i1GGEU..GX61198303-198407

12V 70A

main27039-70080i1GEU..GX61198308-198407

12V 60A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27333-57060i2LTE..LX65198208-198407

12V 60A

main27412-45070i21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60198009-198308

12V 55A,60A,65A

main27412-54040iL..LX60198009-198407

12V 55A,60A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-34050i21RU,13TU..RX60,TX60198009-198208

12V 55A

main27310-38061i18RGEU..RX63198009-198208

12V 60A

main27310-43040iMTEU..MX61198110-198308

12V 65A

main27310-45110iMTEU..MX61198207-198208

12V 60A

main27310-54011iL..LX60198009-198012

12V 55A

main27310-54012iL..LX60198012-198407

12V 55A

main27310-54070iL..LX60198009-198105

12V 60A

main27310-54080iL..LX60198105-198407

12V 60A

main27310-54130i2LTE..LX65198208-198407

12V 60A

main27310-61070iMTEU..MX61198110-198207

12V 60A

main27310-63010i1SU..SX60198208-198407

12V 55A

main27310-63020i1GGEU..GX61198208-198407

12V 70A

main27310-70010i1GEU..GX6#198009-198208

12V 55A,60A

main27310-70030i1GEU..GX61198208-198308

12V 65A

main27310-70080i1GEU..GX61198308-198407

12V 60A

main27310-72010iMTEU..MX61198308-198309

12V 60A

main27310-72050iMTEU..MX61198309-198407

12V 60A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i1SU..SX60198308-198407

12V 55A

main27412-57060i2LTE..LX65198208-198407

12V 60A

main27412-63020i1GGEU..GX61198208-198210

12V 70A

main90099-19251iL..LX60198009-198407

12V 55A,60A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10120iL..LX60198009-198407

12V 55A,60A

main90099-10125i2YPU..SX60198302-198407

*30,12V 55A

main90099-10137i2LTE..LX65198208-198407

12V 60A

main90099-10141i1GGEU..GX61198208-198309

12V 70A,OD=42

main90099-10152i1G#,MTEU..GX61,MX61198309-198407

12V 60A,70A,OD=43

27330ROTOR ASSY, ALTERNATOR

main27330-15070i18RGEU,MTEU..MX61,RX63198009-198208

12V 60A

main27330-43040i1GEU..GX61198208-198308

12V 65A

main27330-45070i21RU,13TU..RX60,TX60198009-198208

12V 55A

main27330-45090i1GEU..GX6#198009-198208

12V 55,60A

main27330-54011iL..LX60198009-198407

12V 55A

main27330-54070iL..LX60198009-198407

12V 60A

main27330-54180i2LTE..LX65198404-198407

12V 60A

main27330-63010i1SU..SX60198208-198407

12V 55A

main27330-63020i1GGEU..GX61198208-198303

12V 70A

main27330-63021i1GGEU..GX61198303-198407

12V 70A

main27330-64030i2LTE..LX65198208-198404

12V 60A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60198009-198308

12V 55A,60A,65A

main90099-10140i1GGEU..GX61198208-198407

12V 70A

27350FRAME ASSY, RECTIFIER END

main27350-54010iL..LX60198009-198407

12V 55A

main27350-54070iL..LX60198009-198105

12V 60A

main27350-54130i2LTE..LX65198208-198404

12V 60A

main27350-54180i2LTE..LX65198404-198407

12V 60A

main27350-57061iL..LX60198105-198407

12V 60A

27350BCONDENSER, ALTERNATOR

main90099-52065i21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60198009-198308

12V 55A,60A,65A

main90099-52066iL..LX60198009-198407

12V 55A,60A

main90099-52082i2LTE..LX65198208-198407

12V 60A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i21RU,13TU,18RGEU,1SU,MTEU..MX61,RX6#,SX60,TX60198009-198308

12V 55A,60A,65A

main27351-56013iL,2LTE..LX6#198009-198407

12V 55A,60A

main27351-70010i1GEU..GX6#198009-198407

12V 55A,60A,65A

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-34021i21RU,13TU..RX60,TX60198009-198208

12V 55A

main27353-54010iL..LX60198009-198407

12V 55A

main27353-54180i2LTE..LX65198208-198407

12V 60A

main27353-57070iL..LX60198009-198407

12V 60A

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-34021i21RU,13TU..RX60,TX60198009-198208

12V 55A

main27356-54010iL..LX60198009-198407

12V 55A

main27356-54180i2LTE..LX65198208-198407

12V 60A

main27356-57070iL..LX60198009-198407

12V 60A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16010iMTEU..MX61198308-198404

12V 60A

main27359-24100i21RU,13TU..RX60,TX60198009-198208

12V 55A

main27359-28030i18RGEU..RX63198207-198208

12V 60A

main27359-34080i18RGEU..RX63198009-198207

12V 60A

main27359-43020iMTEU..MX61198110-198308

12V 60A,65A

main27359-43050iMTEU..MX61198404-198407

12V 60A

main27359-63010i1SU..SX60198208-198407

12V 55A

main27359-63020i1GGEU..GX61198208-198404

12V 70A

main27359-63021i1GGEU..GX61198404-198407

12V 70A

main27359-70010i1GEU..GX6#198009-198208

12V 55A,60A

main27359-70030i1GEU..GX61198208-198308

12V 65A

main27359-70080i1GEU..GX61198308-198404

12V 60A

main27359-70081i1GEU..GX61198404-198407

12V 60A

main27359-72040i2YPU..SX60198302-198407

*30,12V 55A

27362RECTIFIER ASSY, W/BRUSH

main27362-34021i21RU,13TU..RX60,TX60198009-198208

12V 55A

main27362-43040i18RGEU,MTEU..MX61,RX63198009-198308

12V 60A,65A

main27362-63011i1SU..SX60198208-198407

12V 55A

main27362-70010i1GEU..GX6#198009-198011

12V 55A

main27362-70011i1GEU..GX6#198011-198208

12V 55A

main27362-70020i1GEU..GX6#198009-198011

12V 60A

main27362-70021i1GEU..GX6#198011-198208

12V 60A

main27362-72040i2YPU..SX60198302-198407

*30,12V 55A

27371BRUSH, ALTERNATOR

main27371-31011×2i21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60198009-198308

12V 55A,60A,65A

main27371-44071×2i2YPU..SX60198302-198407

*30,12V 55A

main27371-56070×2iL,2LTE..LX6#198009-198407

12V 55A,60A

main27371-63020×2i1GGEU..GX61198208-198407

12V 70A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60198009-198308

12V 55A,60A,65A

main27372-56070×2iL,2LTE..LX6#198009-198407

12V 55A,60A

main27372-63020×2i1GGEU..GX61198208-198407

12V 70A

main90099-17114×2i2YPU..SX60198302-198407

*30,12V 55A

27410STATOR ASSY, ALTERNATOR

main27410-41080i1GEU..GX6#198009-198208

12V 55A

main27410-43040i1SU..SX60198208-198407

12V 55A

main27410-45120i18RGEU,1GEU,MTEU..GX6#,MX61,RX63; 21RU,13TU..RX60,TX60198009-198208

12V 55A; 12V 60A

main27410-54010iL..LX60198009-198208

12V 55A

main27410-54070iL..LX60198009-198407

12V 60A

main27410-54180i2LTE..LX65198208-198407

12V 60A

main27410-64010iL..LX60198208-198407

12V 55A

main27410-72040i2YPU..SX60198302-198407

*30,12V 55A

27411PULLEY, ALTERNATOR

main27411-26111i18RGEU..RX63198009-198208

12V 60A

main27411-31042i21RU,13TU..RX60,TX60198009-198208

12V 55A

main27411-41071iMTEU..MX61198110-198308

12V 60A,65A

main27411-43050iMTEU..MX61198308-198407

12V 60A

main27411-45010i1GEU..GX6#198009-198308

12V 55A,60A,65A

main27411-54020iL..LX60198009-198407

12V 55A,60A

main27411-54170i2LTE..LX65198208-198407

12V 60A

main27411-63011i1SU..SX60198208-198407

12V 55A

main27411-70050i1GGEU..GX61198208-198210

12V 70A

main27411-70051i1GGEU..GX61198210-198407

12V 70A

main27411-70090i1GEU..GX61198308-198407

12V 60A

main27411-72040i2YPU..SX60198302-198407

*30,12V 55A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i21RU,13TU..RX60,TX60198009-198208

12V 55A

main27412-44031i18RGEU..RX63198009-198208

12V 60A

27441FAN, ALTERNATOR

main27441-34030i21RU,13TU..RX60,TX60198009-198208

12V 55A

main27441-34111i2YPU..SX60198302-198407

*30,12V 55A

main27441-44050iMTEU..MX61198110-198308

12V 65A

main27441-45110i18RGEU,1GEU,MTEU..GX6#,MX61,RX63198009-198208

12V 55A,60A

main27441-54040iL..LX60198009-198407

12V 55A

main27441-54070iL..LX60198009-198407

12V 60A

main27441-63030i1SU..SX60198208-198407

12V 55A

main27441-64030i2LTE..LX65198208-198407

12V 60A

main27441-70040i1GEU..GX61198208-198308

12V 65A

27700AREGULATOR ASSY, GENERATOR

main27700-27050i21RU,13TU..RX60,TX60198009-198208

12V 55A

main27700-41050i1GEU..GX6#198009-198208

12V 55A,60A

main27700-43010i1GEU..GX61198208-198308

12V 65A

main27700-54030iL..LX60198009-198208

12V 55A

main27700-57060iL,2LTE..LX6#198009-198407

12V 60A

main27700-63010iL..LX60198208-198407

12V 55A

main27700-63020i1GGEU..GX61198208-198304

12V 70A

main27700-63021i1GGEU..GX61198304-198407

12V 70A

main27700-63030i2YPU..SX60198302-198407

*30,12V 55A

main27700-63040i1SU..SX60198208-198407

12V 55A

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

2737838040INSULATOR, ALTERNATOR, NO.1

main27378-38040

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110049

main90101-10049

9010110083

main90101-10083

9011908023

main90119-08023

9017010015

main90170-10015

9017906158

main90179-06158

9020110005

main90201-10005

9165140612

main91651-40612

9165540616

main91655-40616

9166140820

main91661-40820

9411041000

main94110-41000

9451101400

main94511-01400

9451201000

main94512-01000

9461211001

main94612-11001

45 parts on this diagram · 12 diagrams in section
