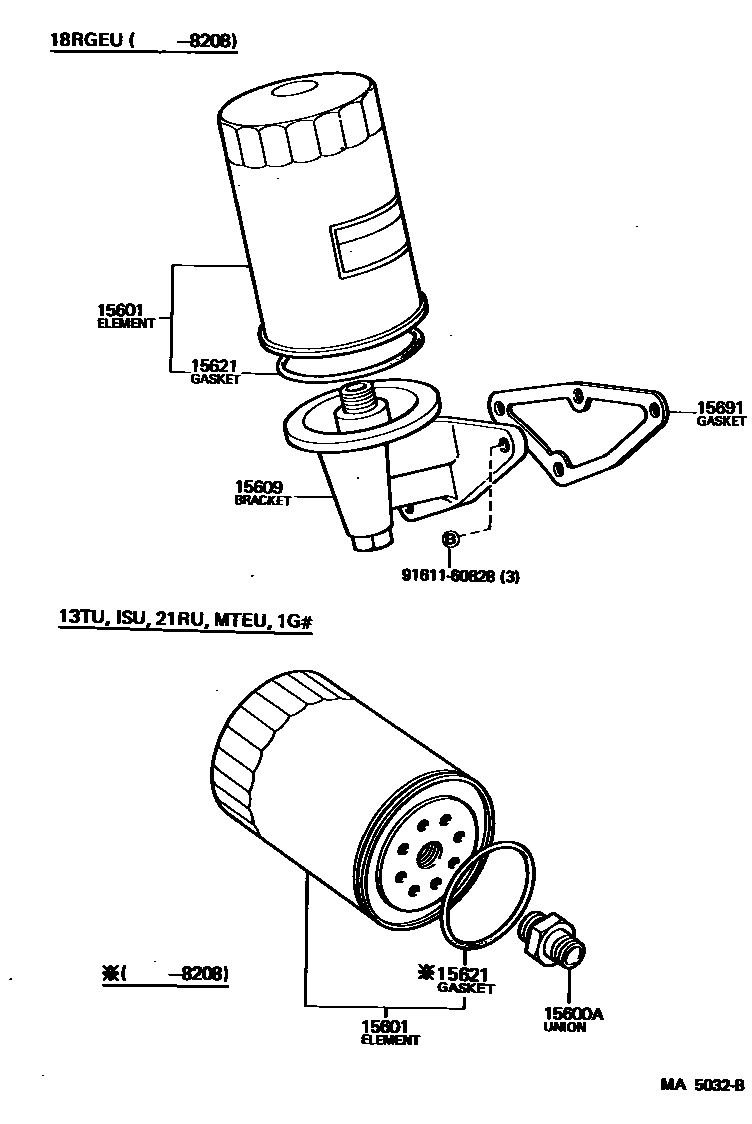

OIL FILTER

0001 1 0002 1 0006 1

15600AUNION(FOR OIL FILTER)

main15116-54010198009-198407

main90404-19002198009-198407

main90404-20173198009-198407

15601FILTER SUB-ASSY, OIL

main15600-25010198009-198208

main15600-41010198009-198407

main15601-13010198208-198306

main15601-13011198306-198407

main15601-33020198009-198306

main15601-33021198306-198407

main15601-44011198009-198407

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54010198009-198205

main15609-54011198205-198406

main15609-54012198406-198407

main15609-54030198208-198406

main15609-54031198406-198407

main15609-71010198302-198407

main15609-88271198009-198208

15621GASKET, OIL FILTER BODY

main15621-22010198009-198208

main15621-41010198009-198208

15691GASKET, OIL FILTER

main15691-54010198009-198108

main15691-54011198108-198203

main15691-54012198203-198407

main15691-71010198302-198407

main15691-88270198009-198208

9161160828

main91611-60828

6 parts on this diagram · 3 diagrams in section
