ENGINE OVERHAUL GASKET KIT

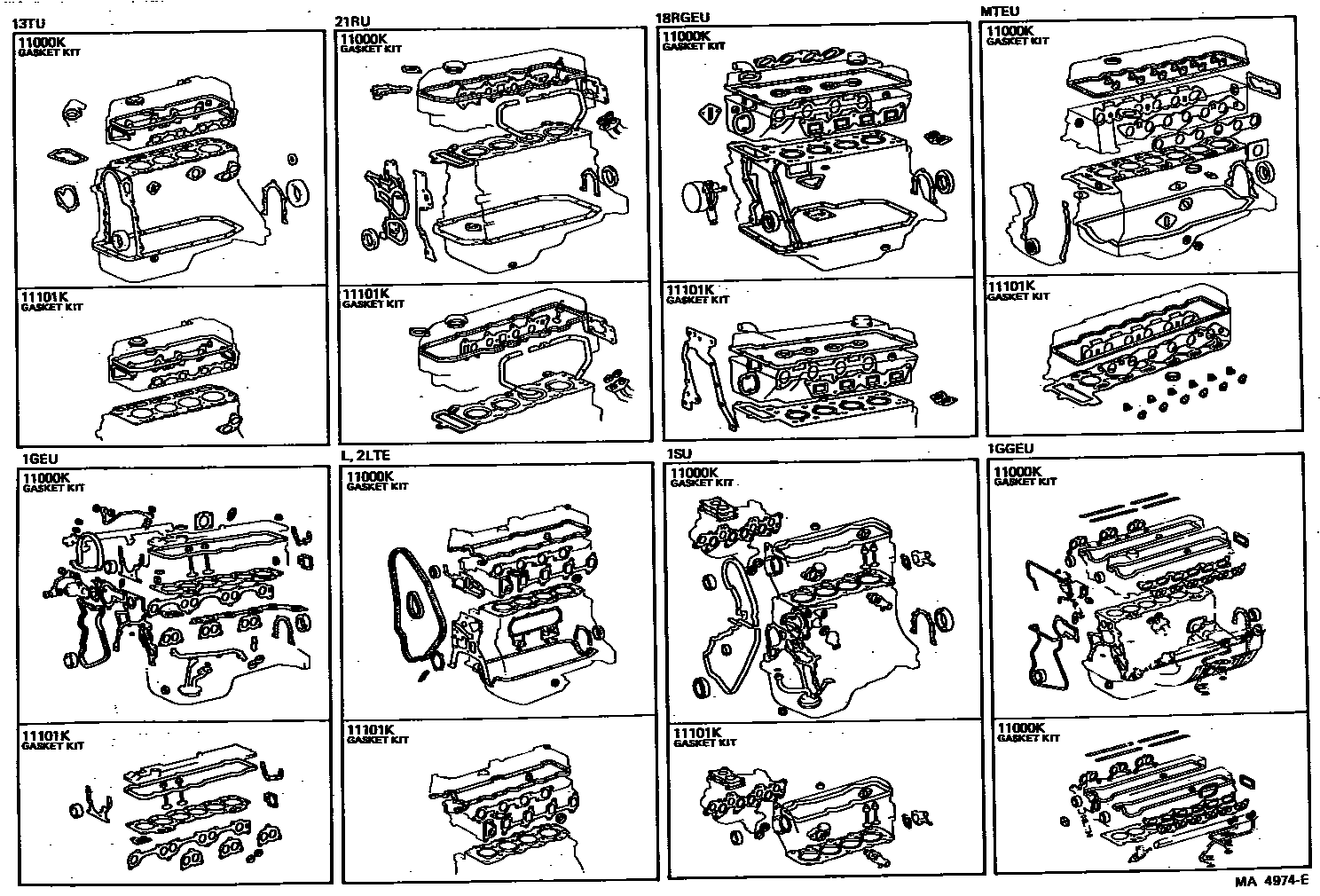

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-28014i198009-198101

main04111-28015i198101-198201

main04111-28017i198201-198208

main04111-34074i198009-198107

main04111-34075i198107-198208

main04111-37030i198009-198208

main04111-41090i198110-198407

main04111-54021i198009-198101

main04111-54022i198101-198105

main04111-54023i198105-198107

main04111-54024i198107-198108

main04111-54030i198108-198111

main04111-54031i198111-198201

main04111-54032i198201-198204

main04111-54033i198204-198208

main04111-54034i198208-198407

main04111-54040i198208-198407

main04111-63010i198208-198407

main04111-70011i198009-198208

main04111-70012i198208-198407

main04111-70020i198208-198407

main04111-72010i198302-198407

*30

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-28014i198009-198101

main04112-28015i198101-198201

main04112-28016i198201-198208

main04112-34036i198009-198107

main04112-34037i198107-198208

main04112-37030i198009-198208

main04112-41090i198110-198407

main04112-54011i198009-198107

main04112-54012i198107-198108

main04112-54020i198108-198111

main04112-54021i198111-198208

main04112-54022i198208-198407

main04112-54030i198208-198407

main04112-63010i198208-198407

main04112-70010i198009-198407

main04112-70020i198208-198407

main04112-72010i198302-198407

*30

2 parts on this diagram · 2 diagrams in section
