SHORT BLOCK ASSEMBLY

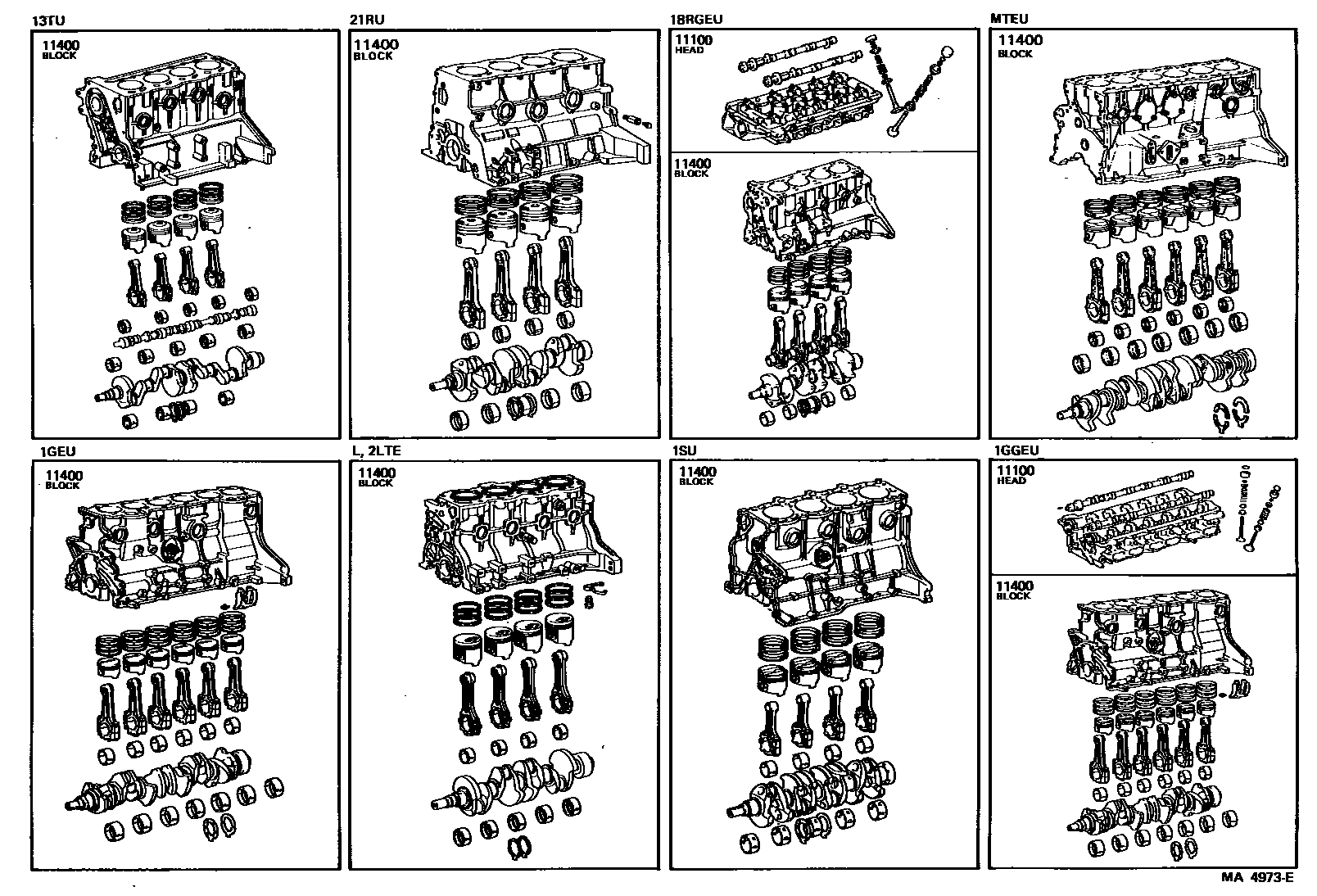

Parts diagram

11100HEAD ASSY, SHORT

main11100-88270i198009-198208

main11100-88280i198208-198407

11400BLOCK ASSY, SHORT

main11400-18011i198009-198207

main11400-18012i198207-198208

main11400-37030i198009-198208

main11400-41060i198110-198302

main11400-41061i198302-198308

main11400-41090i198308-198407

main11400-41091i198407-198407

main11400-54010i198009-198105

main11400-54011i198105-198107

main11400-54013i198304-198407

main11400-54020i198107-198202

main11400-54021i198202-198304

main11400-54040i198208-198308

main11400-54041i198308-198407

main11400-54042i198407-198407

main11400-63010i198208-198407

main11400-70010i198009-198012

main11400-70011i198012-198407

main11400-72010i198302-198407

*30

main11400-88270i198009-198106

main11400-88280i198106-198208

main11400-88300i198208-198407

2 parts on this diagram · 2 diagrams in section
