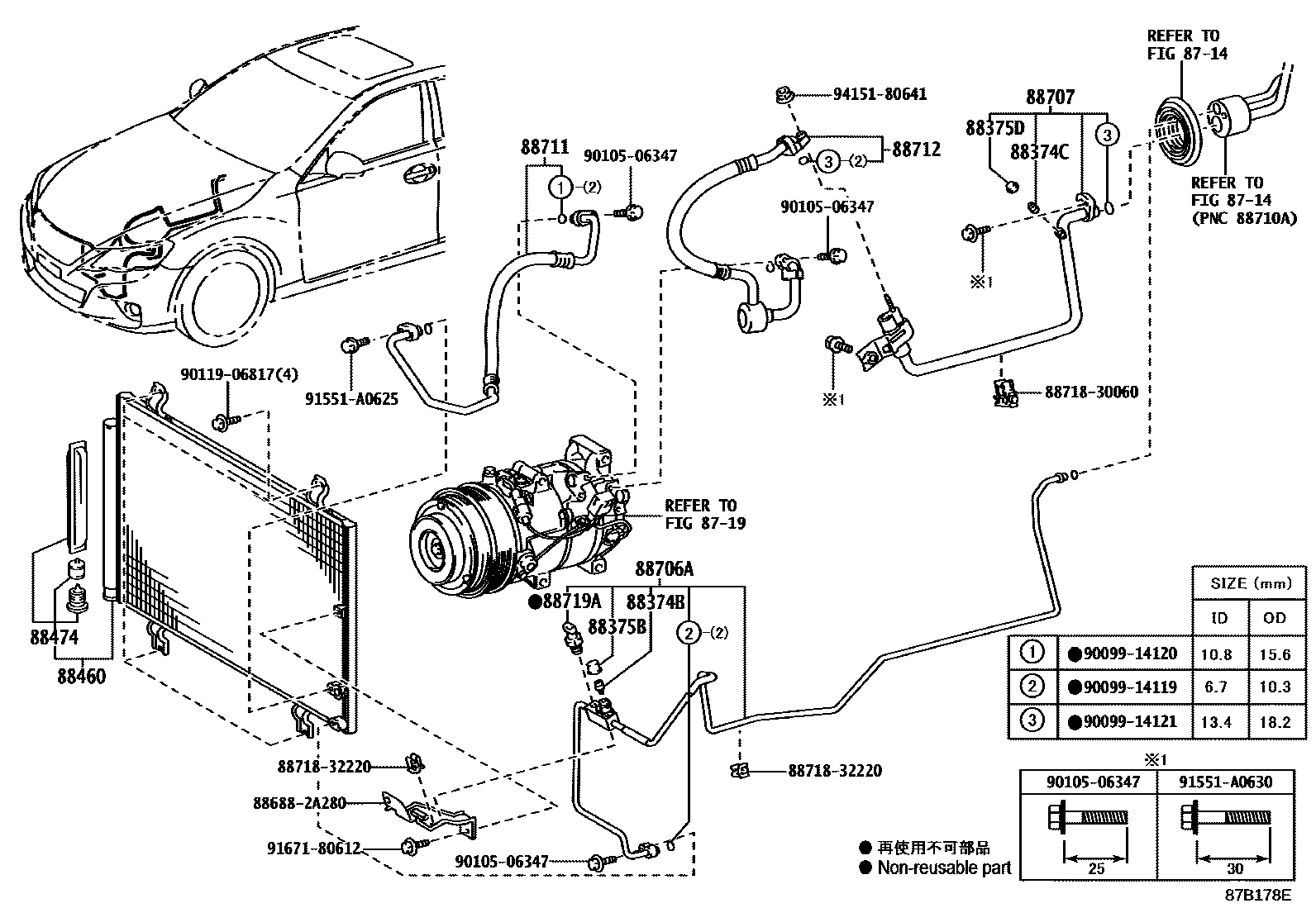

HEATING & AIR CONDITIONING - COOLER PIPING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iGRX13#200910-201208

88374CVALVE, SERVICE, NO.2

main88374-30010iGRX13#200910-201208

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iGRX13#200910-201208

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iGRX13#200910-201208

88460CONDENSER ASSY, COOLER

main88460-22630iGRX13#200910-201208

88474DRYER, COOLER

main88474-17010iGRX13#200910-201208

88706ATUBE SUB-ASSY, LIQUID, A

main88706-22050iGRX13#200910-201208

88707PIPE SUB-ASSY, SUCTION

main88707-22060iGRX13#200910-201208

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-2A120iGRX13#200910-201208

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-30160iGRX13#200910-201208

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGRX13#200910-201208

886882A280BRACKET, COOLER DIAPHRAGM

main88688-2A280

8871830060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30060

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506347

main90105-06347

9011906817

main90119-06817

91551A0625

main91551-A0625

91551A0630

main91551-A0630

9167180612

main91671-80612

9415180641

main94151-80641

25 parts on this diagram · 1 diagram in section
