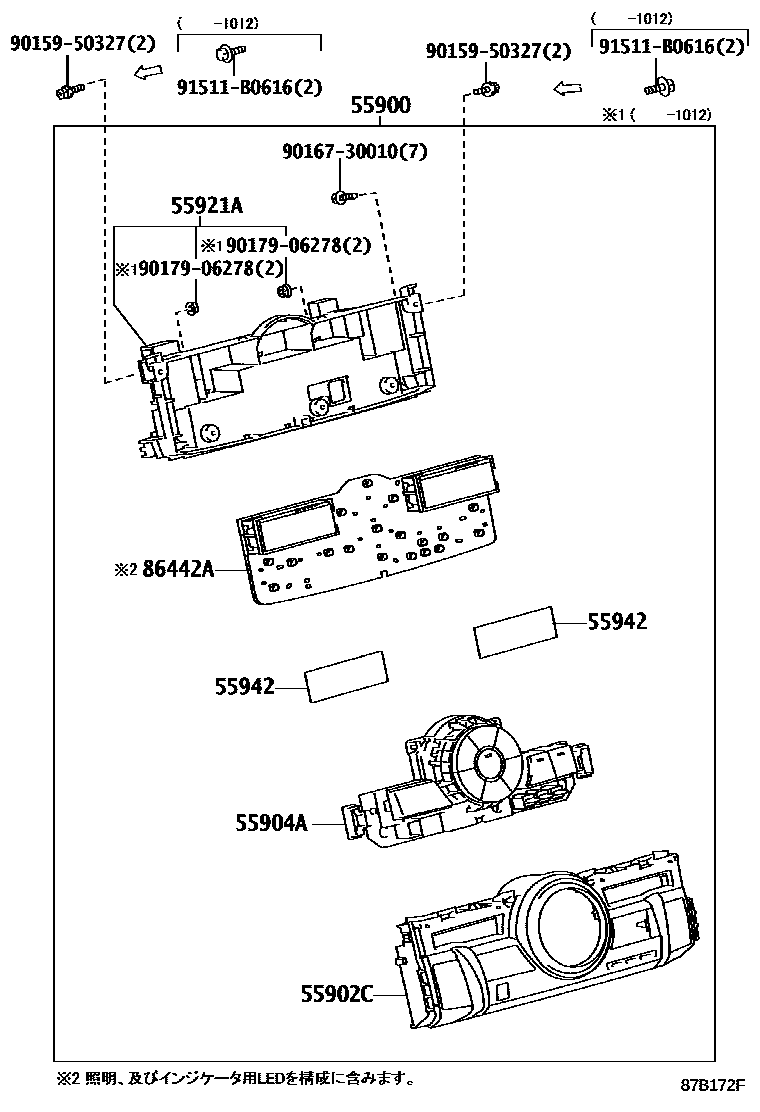

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1��������� 0002 1������ 0003 1������ 0004 1���

55900CONTROL ASSY, AIR CONDITIONER

main55900-22680iGRX133..PREM200910-201012

sub90159-50327

main55900-22681iGRX133..PREM201012-201208

main55900-22720iGRX13#..PREM201208-201611

main55900-22790iGRX13#..250S,25RDS,35RDS201611

main55900-22670supersedes 55900-22660iGRX13#..250G,350S200910-201012

sub90159-50327

main55900-22671supersedes 55900-22661iGRX13#..250G,350S201012-201208

main55900-22690iGRX130,135201010-201012

sub90159-50327

main55900-22691iGRX130,135201012-201208

main55900-22710supersedes 55900-22700iGRX13#..250G,350S201208-201611

main55900-22730iGRX130..250G201407-201611

main55900-22740iGRX130..250G201407-201611

main55900-22750iGRX133201903

main55900-22760iGRX133..350S201505-201510

main55900-22780supersedes 55900-22770iGRX130,135..250G201611

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-22170iGRX13#200910-201208

main55902-22171iGRX13#201611

main55902-22200iGRX130..250G201407-201611

main55902-22210iGRX133201903

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-22180supersedes 55904-22170iGRX133..PREM200910-201208

55921ARETAINER, HEATER CONTROL

main55921-22110iGRX13#200910-201012

sub90159-50327

main55921-22111iGRX13#201611

55942GUARD, HEATER CONTROL

main55942-22020×2iGRX13#201611

86442ABOARD, HEATER CONTROL SWITCH

main86442-22030iGRX13#..250G,350S200910-201208

main86442-22040supersedes 86442-22100iGRX133..PREM200910-201208

main86442-22050iGRX13#..250G,350S201208-201611

main86442-22060iGRX13#..PREM201208-201611

main86442-22110iGRX13#..250S,25RDS,35RDS201611

main86442-22090iGRX133..350S201505-201510

9015950327

main90159-50327

9016730010

main90167-30010

9017906278

main90179-06278

91511B0616

main91511-B0616

10 parts on this diagram · 4 diagrams in section
