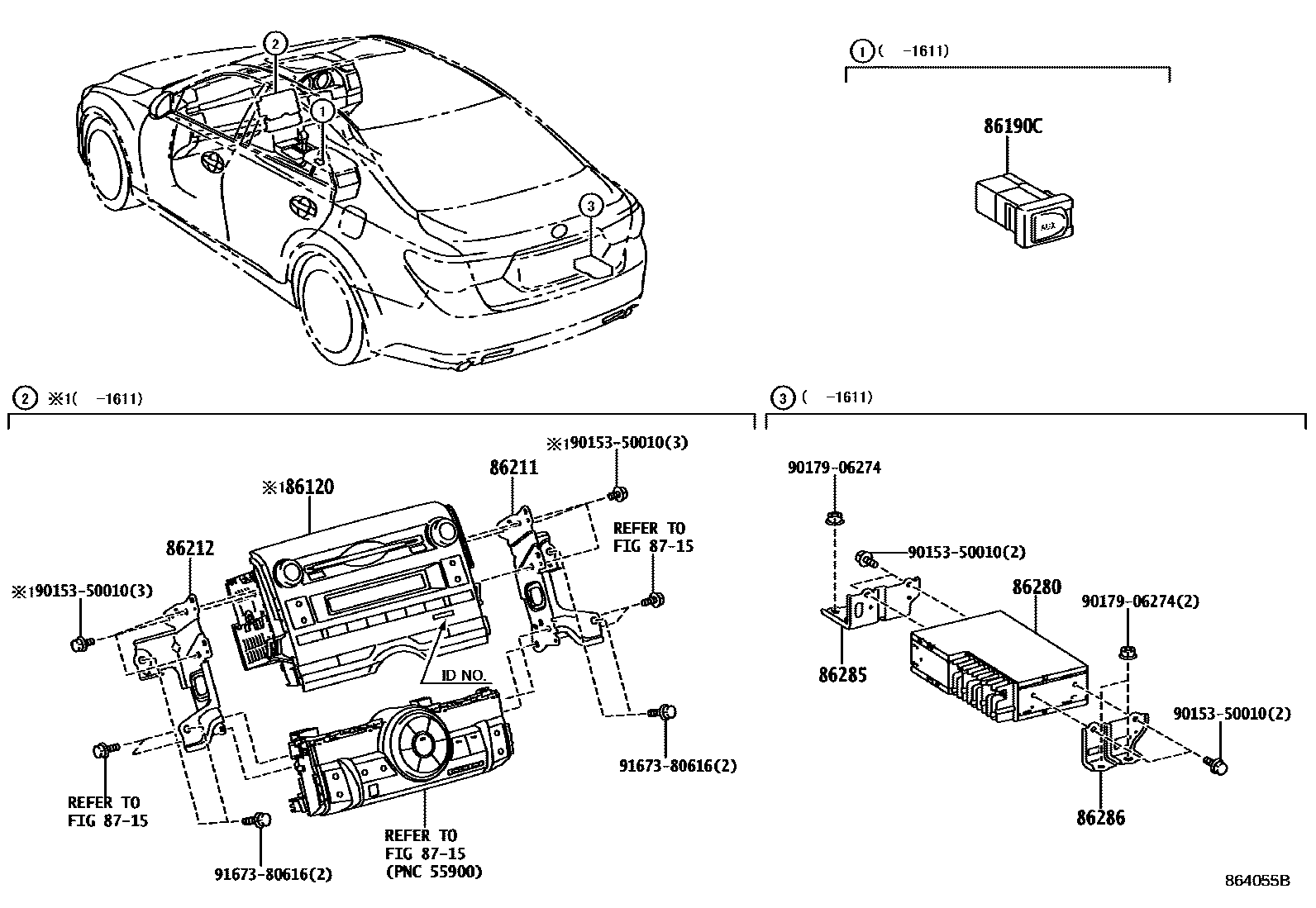

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1������ 0003 1������

86120RECEIVER ASSY, RADIO

main86120-22A80iGRX133..PREM200910-201208

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-48010iGRX133..350S200910-201208

main86190-52060supersedes 86190-48010iGRX133..PREM201208-201611

86211BRACKET, RADIO, NO.1

main86211-22240iGRX13#200910-201208

86212BRACKET, RADIO, NO.2

main86212-22220iGRX13#200910-201208

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-22220iGRX133..PREM200910-201208

main86280-22230iGRX133..PREM201208-201611

86285BRACKET, AMPLIFIER, NO.1

main86285-22090iGRX133..PREM200910-201208

86286BRACKET, AMPLIFIER, NO.2

main86286-22020iGRX133..PREM200910-201208

8715

9015350010

main90153-50010

9017906274

main90179-06274

9167380616

main91673-80616

11 parts on this diagram · 3 diagrams in section
