REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

85330FMOTOR & PUMP ASSY, RR WASHER

85330SBUSH, REAR WASHER JAR

85347PACKING, REAR WASHER

85348RJOINT, REAR WASHER HOSE, NO.1

85348SJOINT, REAR WASHER ELBOW, NO.1

85348TJOINT, REAR WASHER HOSE, NO.2

85348UJOINT, REAR WASHER HOSE, NO.3

85348VJOINT, REAR WASHER HOSE, NO.4

85348YJOINT, REAR WASHER HOSE, NO.5

85349FJOINT, REAR WASHER HOSE, NO.1

85349GJOINT, REAR WASHER HOSE, NO.2

85349HJOINT, REAR WASHER HOSE, NO.3

85355RVALVE, REAR WASHER HOSE

85371NCLAMP, REAR WASHER HOSE

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6

85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7

85373CTUBE, REAR WASHER RUBBER

85373DPIPE, REAR WASHER

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

85376CSPRING, WASHER HOSE

85389CPROTECTOR, WASHER

9017910015

9095006117

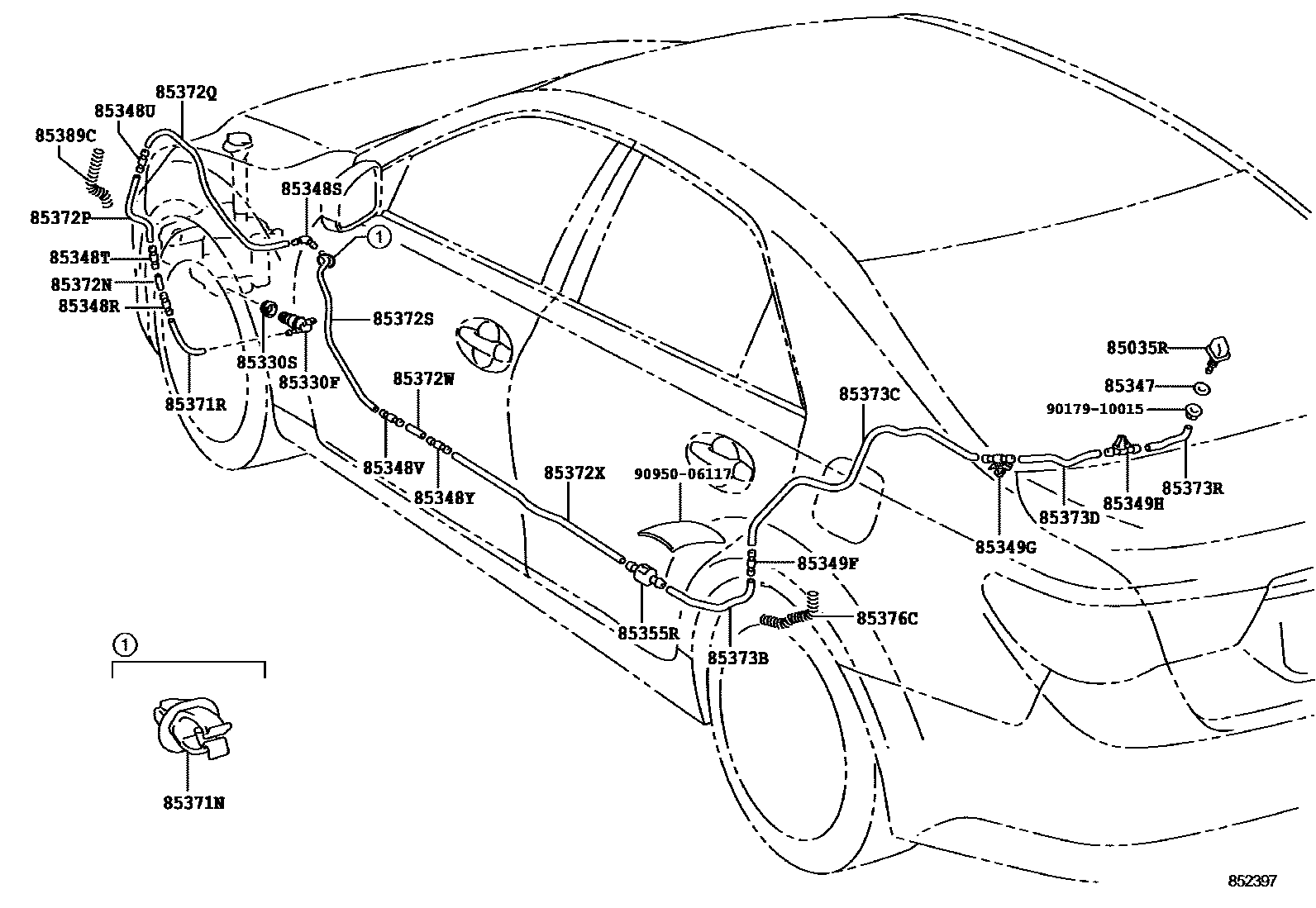

30 parts on this diagram · 1 diagram in section
