SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1�������� 0003 1�������� �������� 0004 1��� 0005 1��� 0006 1������������ 1/2 0007 1������������ 2/2 0008 1������� 0009 1��� 0010 1���,���,��� & �������

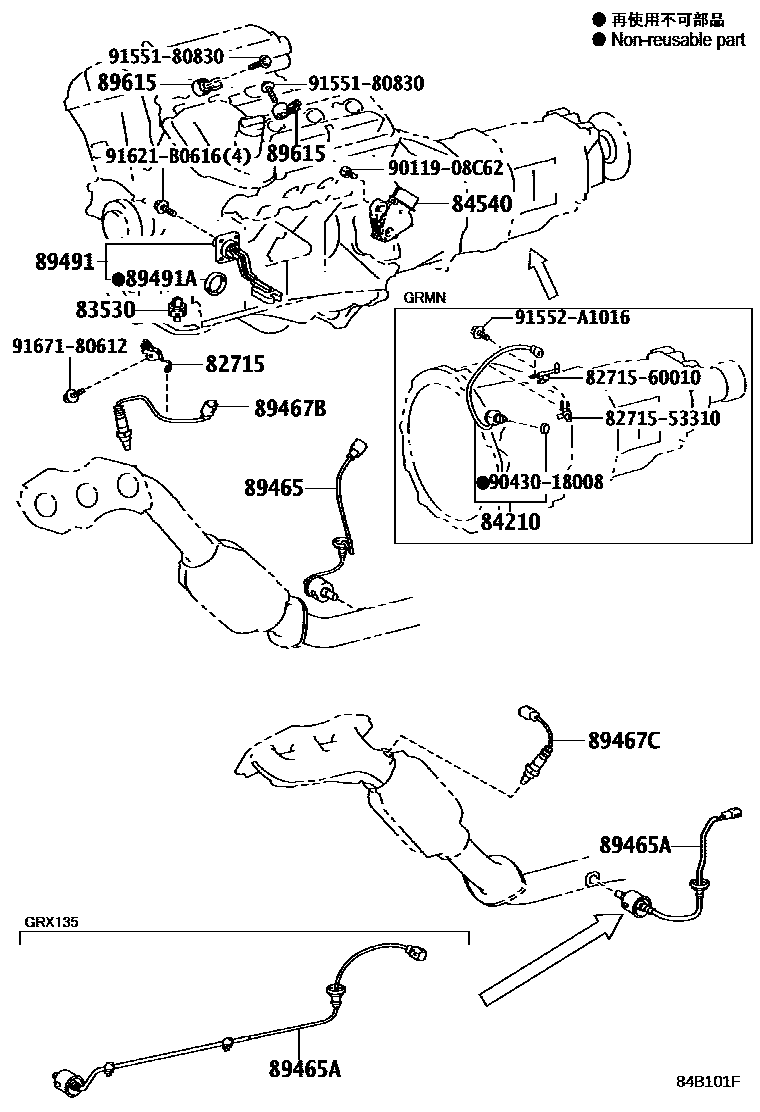

82715BRACKET,WIRING HARNESS CLAMP

main82715-22850iGRX13#200910-201208

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGRX13#201611

main83530-60020iGRX13#200910-201208

84210SWITCH ASSY, BACK-UP LAMP

main84210-14040iGRX133..350S201505-201510

84540SWITCH ASSY, NEUTRAL START

main84540-04010iGRX133201611-201912

main84540-71010iGRX13#201208-201309

89465SENSOR, OXYGEN

main89465-30730iGRX13#201611

89465ASENSOR, OXYGEN NO.2

main89465-30730iGRX130,133200910-201208

main89465-53230iGRX135201611

89467BSENSOR, AIR FUEL RATIO

main89467-22050iGRX13#201611

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-22030iGRX130,133200910-201208

main89467-22040iGRX135201208-201611

89491SENSOR, ENGINE OIL LEVEL

main89491-30060iGRX130,133200910-201108

main89491-30061iGRX130,133201109-201208

main89491-30070iGRX135200910-201108

main89491-30071iGRX135201109-201208

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iGRX13#201611

89615SENSOR, KNOCK CONTROL

main89615-20090×2iGRX13#200910-201208

8271553310BRACKET,WIRING HARNESS CLAMP

main82715-53310

8271560010BRACKET,WIRING HARNESS CLAMP

main82715-60010

9011908C62

main90119-08C62

9043018008

main90430-18008

9155180830

main91551-80830

91552A1016

main91552-A1016

91621B0616

main91621-B0616

9167180612

main91671-80612

19 parts on this diagram · 10 diagrams in section
