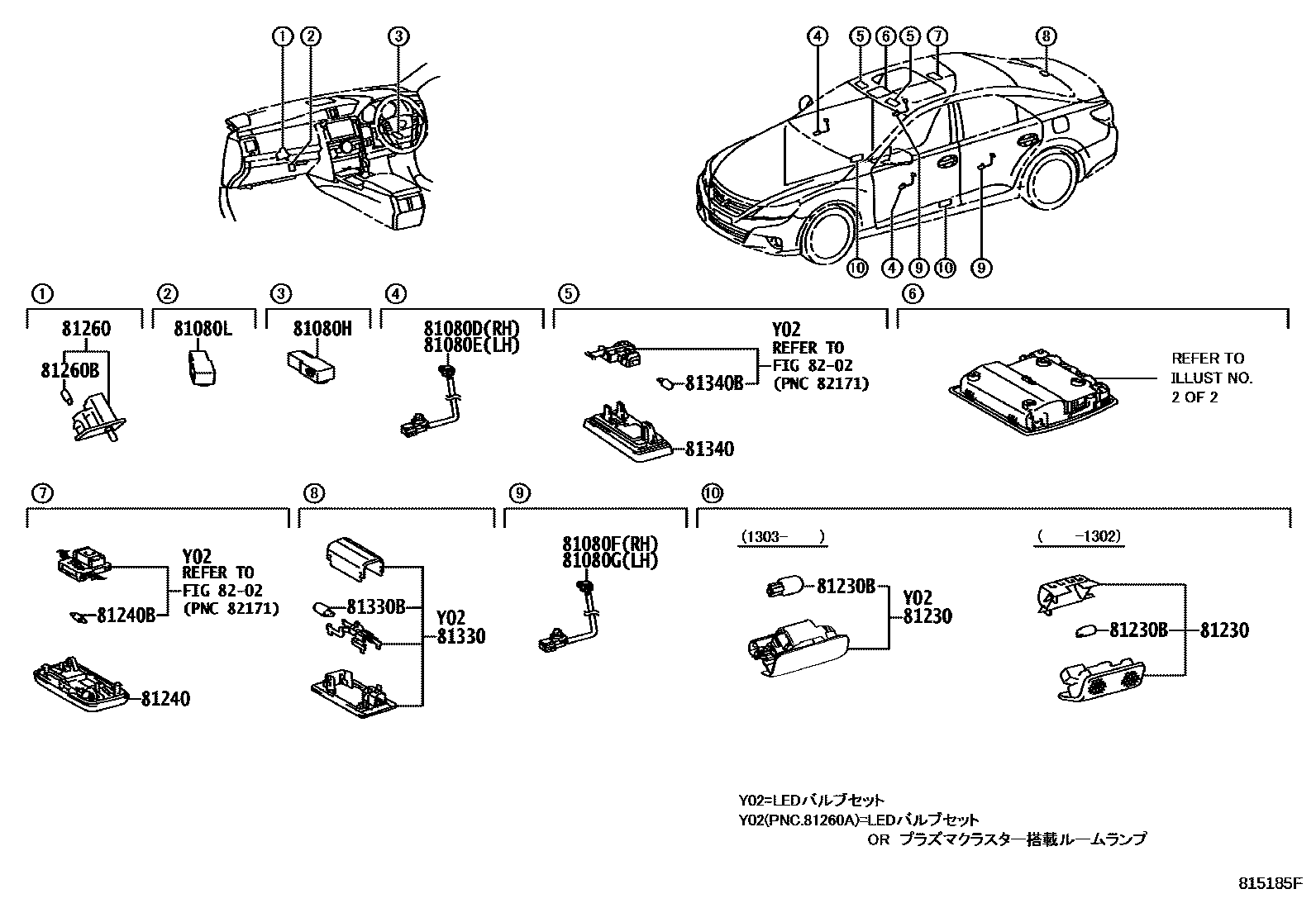

INTERIOR LAMP
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81230BBULB(FOR COURTESY LAMP)
81240LAMP ASSY, ROOM, NO.1
SHELL,TRIM0#
FLAXEN,TRIM0#
LT.GRAY,TRIM22,23,24,25,26
BLACK,TRIM26
FLAXEN,TRIM0#
LT.GRAY,TRIM2#
BLACK,TRIM26
81240BBULB, ROOM LAMP, NO.1
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
LT.GRAY,TRIM2#
81340BBULB (FOR VANITY LAMP)
8202
17 parts on this diagram · 2 diagrams in section
