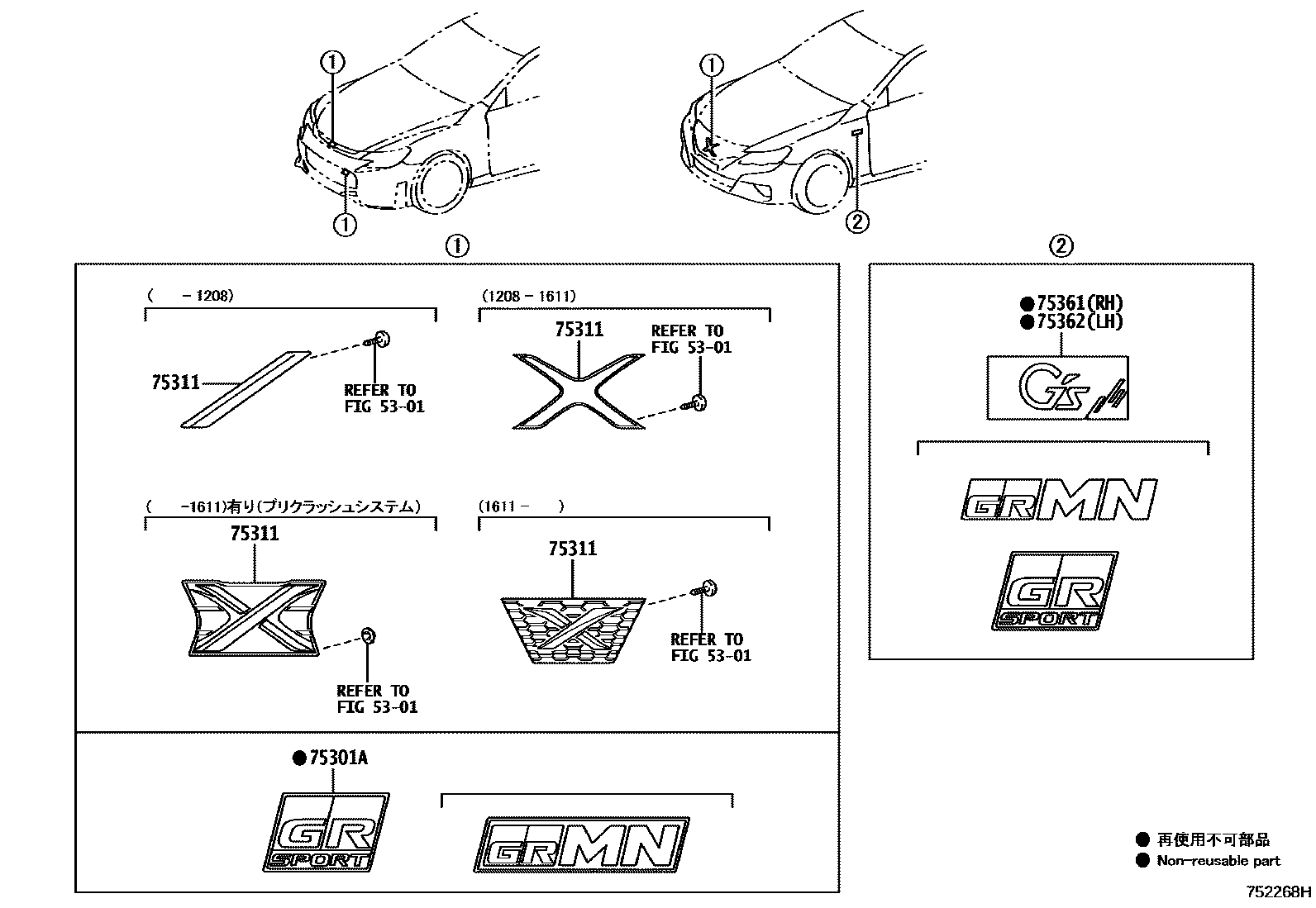

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1���� & ���� 0002 1��

5301RADIATOR GRILLE

→ Go to FIG 53-01

75301AEMBLEM SUB-ASSY, FRONT BUMPER

main75301-22430iGRX130,133..250S,35RDS201709

main75301-22440iGRX133201903

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-22160iGRX13#; GRX130,133..250S,35RDS; GRX130,133..25RDS,35RDS; GRX133201611-201912

main75311-22760iGRX130,135;GRX133..350S; GRX130..250G; GRX133..350S201208-201611

main53141-22120supersedes 53141-22140iGRX133..PREM200910-201208

main75311-22740iGRX13#; GRX133..PREM200910-201208

main75311-22770iGRX133..350S201505-201510

75361PLATE, FRONT FENDER NAME, NO.1 (MODEL MARK)

main75350-52010iGRX133201903

main75361-22100iGRX130,133..250S,35RDS201709

main75362-WY010iGRX130,133..250G,350S201210-201611

75362PLATE, FRONT FENDER NAME, NO.2

main75350-52020iGRX133201903

main75362-22030iGRX130,133..250S,35RDS201709

main75362-WY010iGRX130,133..250G,350S201210-201611

5 parts on this diagram · 2 diagrams in section
