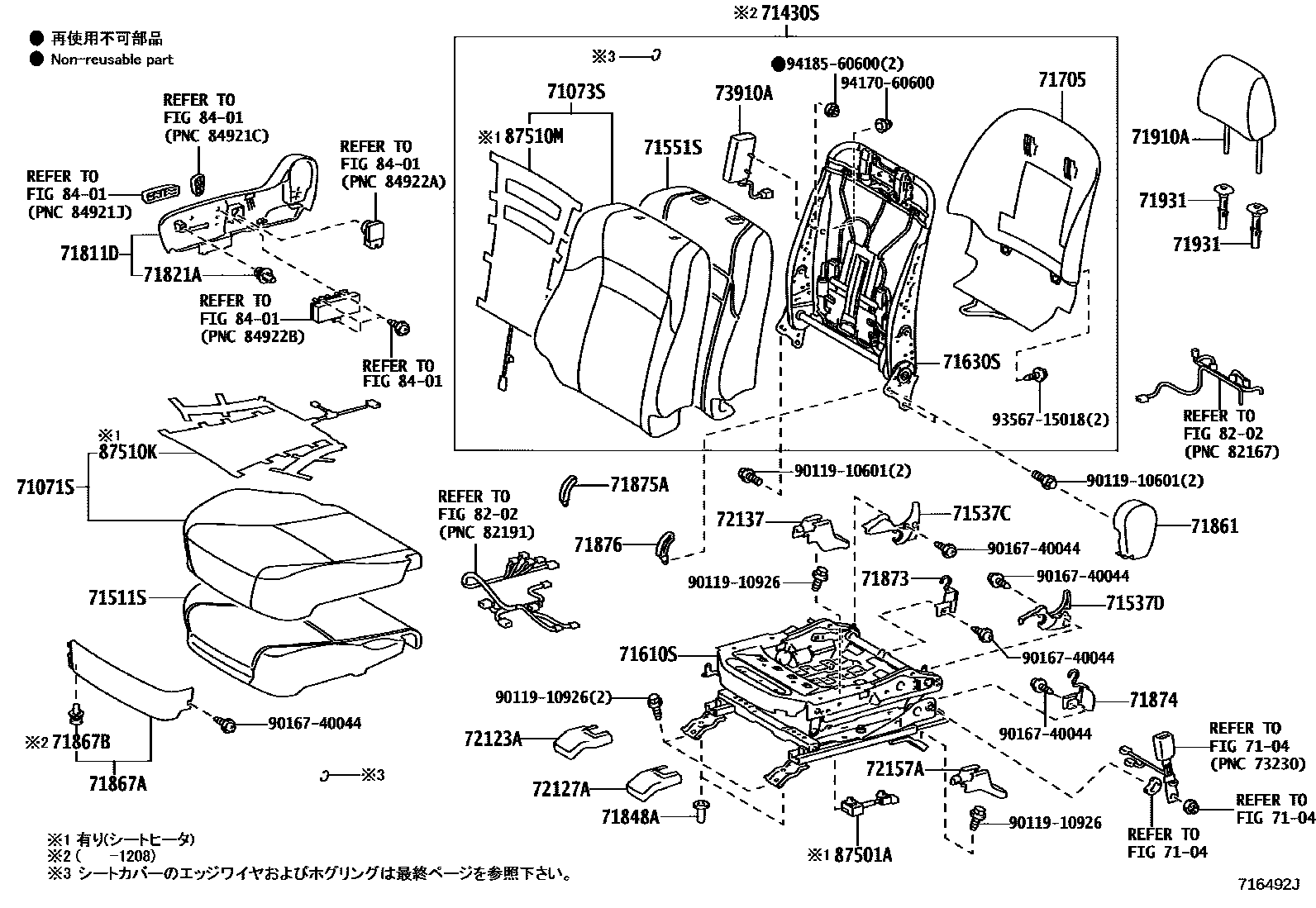

FRONT SEAT & SEAT TRACK

0001 1������,������� 0002 1������,�������� 0003 1������,GRMN 6MT 0004 1������,GRMN 0005 1�������,������� 0006 1�������,�������� 0007 1�������,GRMN 6MT 0008 1�������,GRMN 0009 1�������������� & �������

7104

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-22A60-E2iGRX130,135200910-201010

GREGE,TRIM4#

sub71071-22A61

main71071-22B50-A1iGRX13#..PREM201407-201611

IVORY BLACK,TRIM20

sub71071-22B51

main71071-22B50-C0iGRX13#..PREM201407-201611

BLACK,TRIM22

sub71071-22B51

main71071-22D30-C0iGRX130,133..25RDS,35RDS201611

BLACK,TRIM23

main71071-22D30-C1supersedes 71071-22D20-C0iGRX130,133..25RDS,35RDS201611

BLACK/RED,TRIM22

main71071-22A60-C0supersedes 71071-22A60-E2iGRX130,135201010-201208

sub71071-22A61

main71071-22A70-A2supersedes 71071-22D00-A0iGRX130,135200910-201208

sub71071-22A71

main71071-22A70-E2iGRX130,135200910-201208

sub71071-22A71

main71071-22B00-A2supersedes 71071-22A90-A2iGRX133..PREM200910-201206

main71071-22B00-C2iGRX133..350S200910-201206

main71071-22B01-A2supersedes 71071-22A90-A2iGRX133..PREM201207-201208

main71071-22B01-A5iGRX13#..PREM201208-201611

main71071-22B01-C2supersedes 71071-22B10-C5iGRX135201207-201208

main71071-22B01-C3supersedes 71071-22B10-C5iGRX130..250G201208-201611

main71071-22B10-C2iGRX133..350S200910-201208

sub71071-22B11

main71071-22B40-A1supersedes 71071-22B30-A1iGRX130,135..250G201208-201611

sub71071-22B41

main71071-22B40-C1supersedes 71071-22B30-C2iGRX130,135..250G201208-201611

sub71071-22B41

main71071-22B60-C1supersedes 71071-22B10-C5iGRX130..250G201210-201611

sub71071-22B61

main71071-22C10-C0iGRX130,133..250S,35RDS201709

main71071-22C30-C0iGRX130..250G201407-201611

sub71071-22C31

main71071-22C30-C1iGRX130..250G201407-201611

sub71071-22C31

main71071-22D10-A0supersedes 71071-22D00-A0iGRX130,135..250G201611

main71071-22D10-C0supersedes 71071-22D00-C0iGRX130,135..250G201611

main71071-22D40-C1iGRX13#..250S,25RDS,35RDS201611

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-22A90-A0iGRX130,135200910-201208

SHELL,TRIM0#

sub71073-22A91

main71073-22A90-E0iGRX130,135200910-201010

GREGE,TRIM4#

sub71073-22A91

main71073-22B30-A1iGRX130,135..250G201208-201611

IVORY BLACK,TRIM20

sub71073-22B31

main71073-22B30-C2iGRX130,135..250G201208-201611

BITTER BLACK,TRIM24

sub71073-22B31

main71073-22B40-A1iGRX13#..PREM201407-201611

IVORY BLACK,TRIM20

sub71073-22B41

main71073-22B40-C0iGRX13#..PREM201407-201611

BLACK,TRIM22

sub71073-22B41

main71073-22D00-A0iGRX130,135..250G201611

FLAXEN,TRIM0#

main71073-22D00-C0iGRX130,135..250G201611

BLACK,TRIM2#

main71073-22D20-C0iGRX130,133..25RDS,35RDS201611

BLACK,TRIM23

main71073-22D20-C1supersedes 71073-22D10-C0iGRX130,133..25RDS,35RDS201611

BLACK/RED,TRIM22

main71073-22A90-C0supersedes 71073-22A90-E0iGRX130,135201010-201208

sub71073-22A91

main71073-22B20-A0supersedes 71073-22B10-A1iGRX130200910-201208

main71073-22B20-A3iGRX13#..PREM201208-201611

main71073-22B20-C0iGRX133..350S200910-201208

main71073-22B20-C1iGRX130..250G201208-201611

main71073-22B50-C1iGRX130..250G201210-201412

main71073-22B51-C1supersedes 71073-22B00-C3iGRX130..250G201501-201611

sub71073-22B52

main71073-22C40-C0iGRX130..250G201407-201611

sub71073-22C41

main71073-22C40-C1iGRX130..250G201407-201611

sub71073-22C41

main71073-22D30-C1iGRX13#..250S,25RDS,35RDS201611

main71073-22D40-C0iGRX130,133..250S,35RDS201709

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-22A20-E2iGRX130,135201010-201208

sub71430-22A21

main71430-22A30-A1supersedes 71430-22A20-A1iGRX130,135200910-201208

sub71430-22A31

main71430-22A30-E1supersedes 71430-22A20-E1iGRX130,135200910-201208

sub71430-22A31

main71430-22A60-A1supersedes 71430-22A50-A2iGRX130200910-201208

main71430-22A60-C1supersedes 71430-22A40-C1iGRX133..350S200910-201208

main71430-22A60-E0supersedes 71430-22A20-E1iGRX130,135201105-201208

main71430-22A70-C0supersedes 71430-22A40-C1iGRX133..350S200910-201208

sub71430-22A71

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-22670iGRX133..350S200910-201208

main71511-22700supersedes 71511-22680iGRX130..250G201210-201611

71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH

main71537-47010-A1iGRX13#..250G,PREM200910-201208

SHELL,TRIM0#

main71537-47010-C0supersedes 71537-47010-E2iGRX130,133..250G,350S200910-201208

main71537-47010-E2iGRX135200910-201010

ASH BROWN,TRIM4#

71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH

main71538-47010-A1iGRX13#..250G,PREM200910-201208

SHELL,TRIM0#

main71538-47010-C0supersedes 71538-47010-E2iGRX130,133..250G,350S200910-201208

main71538-47010-E2iGRX135200910-201010

ASH BROWN,TRIM4#

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-22690iGRX13#201611

main71551-22700iGRX13#..PREM201208-201611

main71551-22730iGRX130..250G201210-201611

main71551-74080iGRX133..350S201505-201510

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-22490iGRX13#..250G,350S201208-201611

main71610-22500supersedes 71610-22560iGRX133..350S200910-201208

main71610-22540iGRX130..250G201210-201611

main71610-22550supersedes 71610-22510iGRX133..350S201505-201510

main71610-22570iGRX133201903

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-22750iGRX13#201611

main71630-22760iGRX133..350S200910-201208

main71630-22780iGRX130..250G201210-201611

main71630-22790iGRX133201903

main71630-52450supersedes 71630-22770iGRX133..350S201505-201510

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-22700-A0iGRX13#..250G,PREM200910-201208

SHELL,TRIM0#

main71705-22700-A1iGRX130,135..250G201611

FLAXEN,TRIM0#

main71705-22700-A3iGRX130,135..250G201208-201611

IVORY BLACK,TRIM20

main71705-22700-C0supersedes 71705-22700-E0iGRX130,133..250G,350S200910-201208

main71705-22700-C1iGRX13#201611

BLACK,TRIM2#

main71705-22700-E0iGRX135200910-201010

ASH BROWN,TRIM4#

main71705-22710iGRX133..350S201505-201510

main71705-22710-C2iGRX133201903

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-22430-A0iGRX13#..250G,PREM200910-201208

SHELL,TRIM0#

main71811-22430-C0supersedes 71811-22430-E0iGRX130,135..250G201611

BLACK,TRIM2#

main71811-22430-E0iGRX135200910-201010

ASH BROWN,TRIM4#

main71811-22440-A0iGRX130,135200910-201208

main71811-22440-E0iGRX130,135200910-201208

71821ACLIP (FOR FRONT SEAT SIDE SHIELD)

main90467-10161×2iGRX13#201208-201611

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-33010×2iGRX13#201611

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-22150-A0iGRX13#..250G,PREM200910-201208

SHELL,TRIM0#

main71861-22150-C0supersedes 71861-22150-E0iGRX13#201208-201611

BLACK,TRIM2#

main71861-22150-E0iGRX135200910-201010

ASH BROWN,TRIM4#

main71861-47040-A0iGRX130,135200910-201208

main71861-47040-E0iGRX130,135200910-201208

71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

main71867-60050-A2iGRX13#..250G,PREM200910-201208

SHELL,TRIM0#

main71867-60050-C0supersedes 71867-60050-E3iGRX130,135..250G201611

BLACK,TRIM2#

main71867-60050-E3iGRX135200910-201010

ASH BROWN,TRIM4#

71867BCLIP(FOR FRONT SEAT CUSHION INNER SHIELD)

main62217-12050×2supersedes 62217-12050iGRX133..PREM200910-201208

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-60030iGRX133..350S200910-201208

main71873-74040supersedes 71873-47040iGRX133..350S201505-201510

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-60110iGRX13#201208-201611

main71874-74040supersedes 71874-47040iGRX133..350S201505-201510

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-60210-A1iGRX13#..250G,PREM200910-201208

SHELL,TRIM0#

main71875-60210-C0supersedes 71875-47030-C0iGRX13#201208-201611

BLACK,TRIM2#

main71875-60210-E2iGRX135200910-201010

ASH BROWN,TRIM4#

main71875-47030-A1iGRX130,135200910-201208

main71875-47030-E3supersedes 71875-60210-E2iGRX135200910-201208

main71875-60260-C0iGRX133201903

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-60210-A1iGRX13#..250G,PREM200910-201208

SHELL,TRIM0#

main71876-60210-C0supersedes 71876-47030-C0iGRX13#201208-201611

BLACK,TRIM2#

main71876-60210-E2iGRX135200910-201010

ASH BROWN,TRIM4#

main71876-47030-A1iGRX130,135200910-201208

main71876-47030-E3supersedes 71876-60210-E2iGRX135200910-201208

main71876-60270-C0iGRX133201903

71910AHEADREST ASSY, FRONT SEAT

main71910-22A40-A0×2iGRX130,135200910-201208

SHELL,TRIM0#

sub71910-22A41

main71910-22A40-E0×2iGRX130,135200910-201010

GREGE,TRIM4#

sub71910-22A41

main71910-22A80-A3×2iGRX130,135..250G201208-201611

IVORY BLACK,TRIM20

sub71910-22A81

main71910-22A80-C3×2iGRX130,135..250G201208-201611

BITTER BLACK,TRIM24

sub71910-22A81

main71910-22A90-A1×2iGRX13#..PREM201208-201407

IVORY BLACK,TRIM2#

sub71910-22A91

main71910-22A90-C0×2iGRX13#..PREM201407-201611

BLACK,TRIM22

sub71910-22A91

main71910-22C00-A0×2iGRX130,135..250G201611

FLAXEN,TRIM0#

main71910-22C00-C0×2iGRX130,135..250G201611

BLACK,TRIM2#

main71910-22C20-C0×2supersedes 71910-22C10-C0iGRX130,133..25RDS,35RDS201611

BLACK,TRIM2#

main71910-22A40-C0×2supersedes 71910-22A40-E0iGRX130,135201010-201208

sub71910-22A41

main71910-22A70-A0×2supersedes 71910-22A60-A0iGRX133..PREM200910-201208

main71910-22A70-A6×2iGRX13#..PREM201208-201502

main71910-22A70-C0×2iGRX133..350S200910-201208

main71910-22A70-C3×2iGRX130..250G201208-201502

main71910-22A71-A6×2iGRX13#..PREM201503-201611

main71910-22A71-C3×2supersedes 71910-22A50-C3iGRX130..250G201503-201611

main71910-22B00-C1×2supersedes 71910-22A50-C3iGRX130..250G201210-201611

main71910-22B00-C2×2iGRX130,133..250S,35RDS201709

main71910-22B40-C0×2iGRX130..250G201407-201611

main71910-22B40-F0×2iGRX130..250G201407-201611

main71910-22C30-C0×2iGRX13#..250S,25RDS,35RDS201611

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-A0×2iGRX13#..250G,PREM200910-201208

main71930-47020-A7×2iGRX13#..PREM201208-201407

main71930-47020-C0×2iGRX133..350S200910-201208

main71930-47020-C4×2iGRX13#201710

main71930-47020-E3×2iGRX130,135200910-201010

main71931-47020-A0×2iGRX13#..250G,PREM200910-201208

main71931-47020-A7×2iGRX13#..PREM201208-201407

main71931-47020-C0×2supersedes 71931-47020-E3iGRX130..250G201208-201611

main71931-47020-C4×2iGRX13#201710

main71931-47020-E3×2iGRX130,135200910-201010

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-22110-A0iGRX13#..250G,PREM200910-201208

SHELL,TRIM0#

main72123-22110-C0supersedes 72123-22110-E0iGRX130200910-201208

main72123-22110-E0iGRX135200910-201010

ASH BROWN,TRIM4#

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72127-22100-A0iGRX13#..250G,PREM200910-201208

SHELL,TRIM0#

main72127-22100-C0supersedes 72127-22100-E0iGRX130200910-201208

main72127-22100-E0iGRX135200910-201010

ASH BROWN,TRIM4#

72137COVER, SEAT TRACK, OUTER RH

main72137-22130-A0iGRX13#..250G,PREM200910-201208

SHELL,TRIM0#

main72137-22130-C0supersedes 72137-22130-E0iGRX130,135..250G201611

BLACK,TRIM2#

main72137-22130-E0iGRX135200910-201010

ASH BROWN,TRIM4#

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-22150-A0iGRX13#..250G,PREM200910-201208

SHELL,TRIM0#

main72157-22150-C0supersedes 72157-22150-E0iGRX130200910-201208

main72157-22150-E0iGRX135200910-201010

ASH BROWN,TRIM4#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-22050iGRX13#201208-201611

main73910-52161iGRX133201903

8202

8401

87501ACONTROL SUB-ASSY, SEAT HEATER, RH

main87501-60030iGRX133..350S200910-201202

main87501-60040iGRX13#..PREM201410-201611

main87501-60050iGRX130,135201203-201208

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-22120iGRX13#..250S,25RDS,35RDS201611

87510MHEATER ASSY, FRONT SEATBACK, RH

main87530-22010iGRX133..350S200910-201208

9011910601

main90119-10601

9011910926

main90119-10926

9016740044

main90167-40044

9356715018

main93567-15018

9417060600

main94170-60600

9418560600

main94185-60600

39 parts on this diagram · 9 diagrams in section
