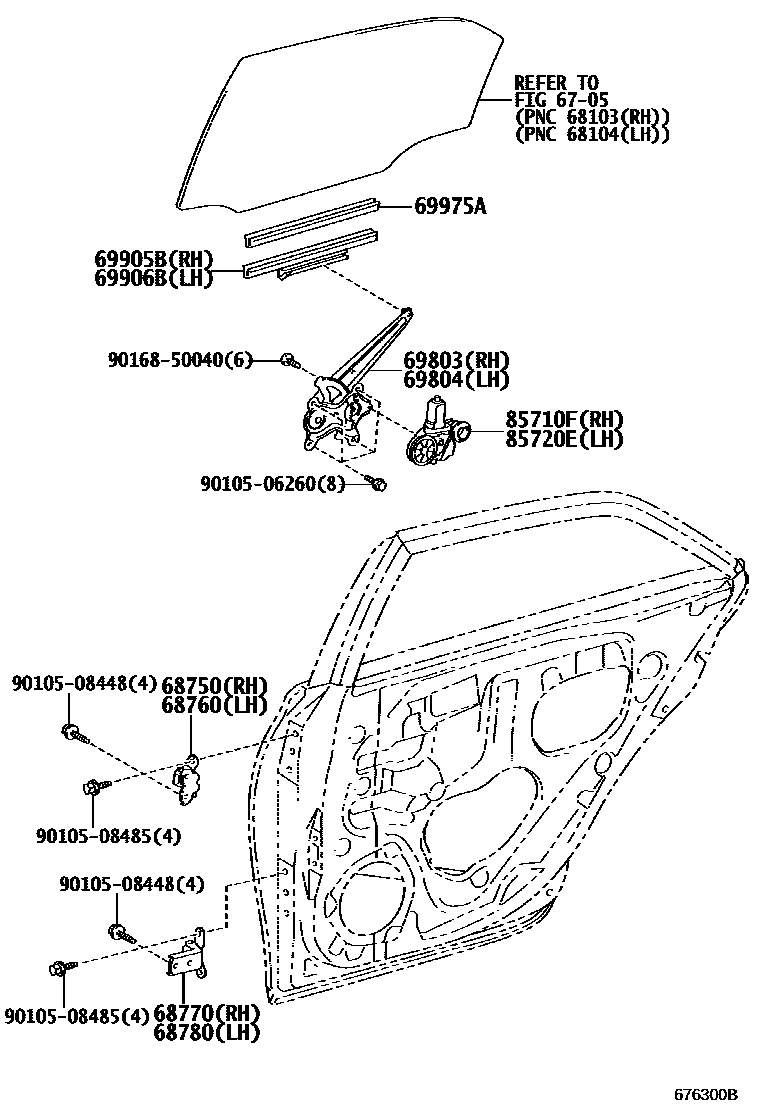

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iGRX13#200910-201205

main68750-20122iGRX13#201206-201208

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iGRX13#200910-201205

main68760-20122iGRX13#201206-201208

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iGRX13#200910-201208

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iGRX13#200910-201208

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-33050iGRX13#200910-201208

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-33050iGRX13#200910-201208

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-22060iGRX13#200910-201208

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-22050iGRX13#200910-201208

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-22030×2iGRX13#200910-201208

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-30351iGRX13#200910-201208

main85720-30411iGRX13#201304-201310

main85720-30412iGRX13#201311-201611

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-30411iGRX13#200910-201208

main85710-30461iGRX13#201304-201310

main85710-30462iGRX13#201311-201611

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
