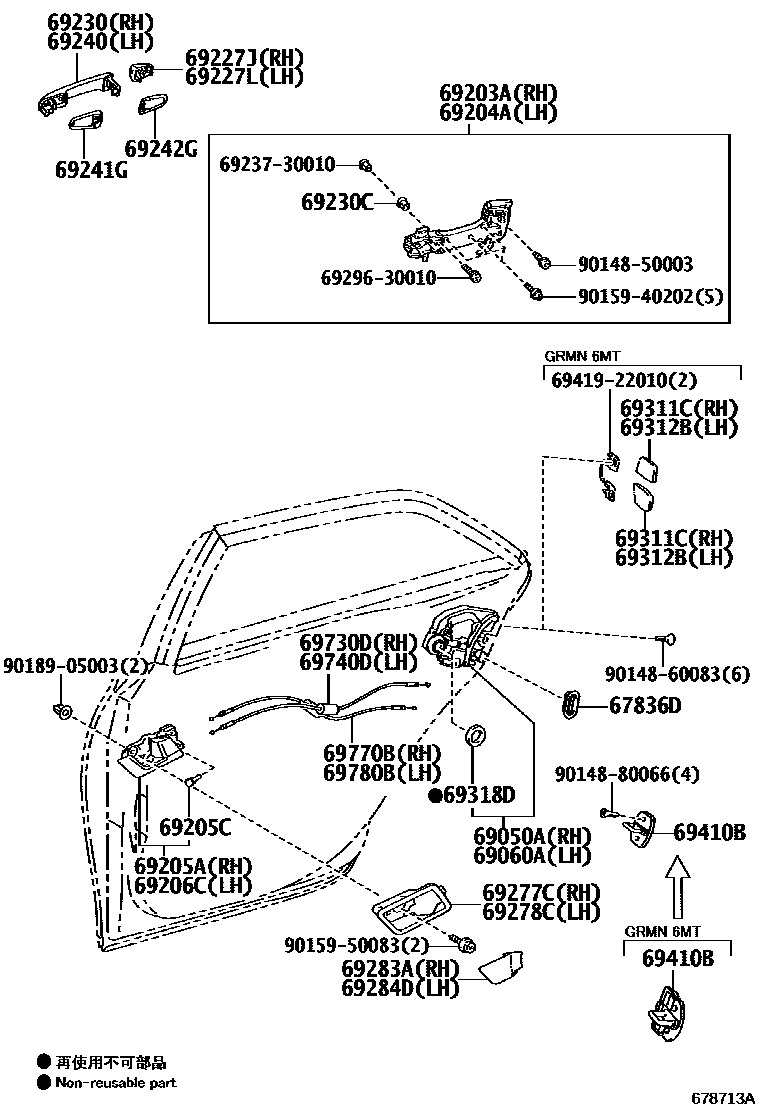

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
sub69227-47010
sub69250-30050
sub69250-30050
sub69250-30050
sub69250-30050
sub69250-30050
sub69250-30050
sub69250-30050
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
sub69227-47010
sub69250-30050
sub69250-30050
sub69250-30050
sub69250-30050
sub69250-30050
sub69250-30050
sub69250-30050
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,062
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
PRECIOUS BLACK,219
GINGER RED M.M.,3R6
DK. RED M.M.,3Q3
BRONZE M.M.,4T3
BRILLIANT YELLOW,5B7
TRUE BLUE M.M.,8W1
DK.BLUE MC.,8S6
DK.BLUE MC.,8T5
sub69211-74020
69230CBUSH(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,062
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
PRECIOUS BLACK,219
GINGER RED M.M.,3R6
DK. RED M.M.,3Q3
BRONZE M.M.,4T3
BRILLIANT YELLOW,5B7
TRUE BLUE M.M.,8W1
DK.BLUE MC.,8S6
DK.BLUE MC.,8T5
sub69211-74020
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
BLACK,TRIM0#
BLACK,TRIM0#,2#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
BLACK,TRIM2#
BLACK,TRIM0#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69311CPLATE, DOOR LOCK BASE, RH
69312BPLATE, DOOR LOCK BASE, LH
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
6941922010STOP, SLIDE DOOR OPEN, LH
main69419-22010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9015940202
main90159-40202
9015950083
main90159-50083
9018905003
main90189-05003
36 parts on this diagram · 1 diagram in section
