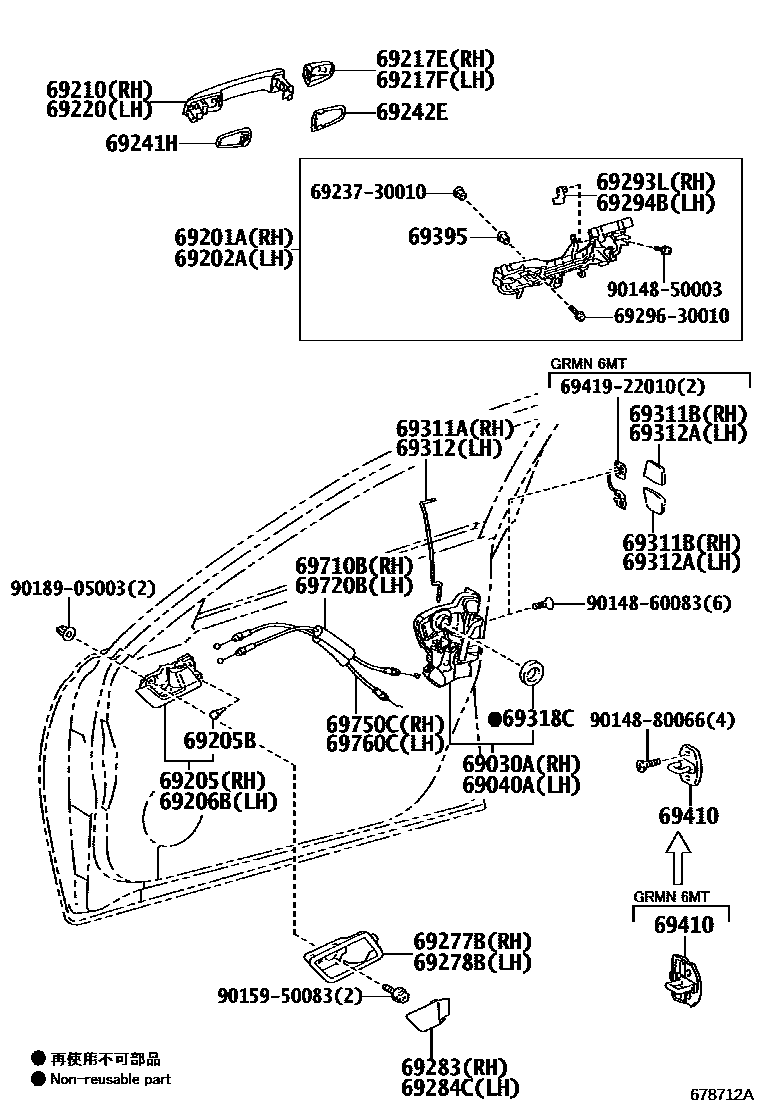

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-42210iGRX13#200910-201611

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-12560iGRX13#200910-201611

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-30071iGRX13#200910-201611

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-30061iGRX13#200910-201611

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30200-C0iGRX133..350S200910-201208

BLACK,TRIM0#,2#,4#

main69205-30200-C0iGRX133..PREM200910-201208

BLACK,TRIM2#,4#

main69205-30200-C0iGRX133..PREM200910-201208

BLACK,TRIM0#,2#

main69205-30200-C0iGRX13#201208-201611

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iGRX13#200910-201611

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30200-C0iGRX133..350S200910-201208

BLACK,TRIM0#,2#,4#

main69206-30200-C0iGRX133..350S200910-201208

BLACK,TRIM2#,4#

main69206-30200-C0iGRX133..350S200910-201208

BLACK,TRIM0#,2#

main69206-30200-C0iGRX13#201208-201611

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-30320-A1iGRX133200910-201208

sub69210-30320

main69210-30320-A1iGRX135200910-201611

WHITE PEARL CS.,062

sub69210-30320

main69210-30320-B0iGRX13#200910-201611

SILVER ME.,1F7

sub69210-30320

main69210-30320-B0iGRX133200910-201208

sub69210-30320

main69210-30320-B2iGRX133200910-201611

ICE TITANIUM M.M.,1H4

sub69210-30320

main69210-30320-B2iGRX133200910-201208

sub69210-30320

main69210-30320-C0iGRX135200910-201611

BLACK,202

sub69210-30320

main69210-30320-C0iGRX135200910-201208

sub69210-30320

main69210-30320-C4iGRX13#201611

PRECIOUS BLACK,219

sub69210-30320

main69210-30320-D2iGRX130200910-201208

GINGER RED M.M.,3R6

sub69210-30320

main69210-30320-D2iGRX133200910-201208

sub69210-30320

main69210-30320-D4iGRX13#201208-201611

DK. RED M.M.,3Q3

sub69210-30320

main69210-30320-E2iGRX130200910-201208

BRONZE M.M.,4T3

sub69210-30320

main69210-30320-E2iGRX135200910-201208

sub69210-30320

main69210-30320-F2iGRX13#..250G,350S201407-201611

BRILLIANT YELLOW,5B7

sub69210-30320

main69210-30320-J0iGRX135201010-201208

DK.BLUE MC.,8S6

sub69210-30320

main69210-30320-J0iGRX130,133..250G,350S201010-201208

sub69210-30320

main69210-30320-J2iGRX13#201208-201611

DK.BLUE MC.,8T5

sub69210-30320

main69210-30320-J7iGRX13#201611

TRUE BLUE M.M.,8W1

sub69210-30320

main69211-74020-A2iGRX135200910-201208

WHITE PEARL CS.,062

sub69211-74020

main69211-74020-B0iGRX135200910-201208

SILVER ME.,1F7

sub69211-74020

main69211-74020-B3iGRX135200910-201208

ICE TITANIUM M.M.,1H4

sub69211-74020

main69211-74020-C0iGRX130200910-201208

BLACK,202

sub69211-74020

main69211-74020-D2iGRX135200910-201208

GINGER RED M.M.,3R6

sub69211-74020

main69211-74020-E0iGRX135200910-201208

BRONZE M.M.,4T3

sub69211-74020

main69211-74020-J0iGRX130201010-201208

sub69211-74020

main69211-74020-J0iGRX130201010-201208

DK.BLUE MC.,8S6

sub69211-74020

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-74010-A2iGRX130200910-201208

WHITE PEARL CS.,062

sub69217-74010

main69217-74010-B0iGRX135200910-201208

SILVER ME.,1F7

sub69217-74010

main69217-74010-B3iGRX130200910-201208

ICE TITANIUM M.M.,1H4

sub69217-74010

main69217-74010-C0iGRX135200910-201208

BLACK,202

sub69217-74010

main69217-74010-D2iGRX130200910-201208

GINGER RED M.M.,3R6

sub69217-74010

main69217-74010-E0iGRX135200910-201208

BRONZE M.M.,4T3

sub69217-74010

main69217-74010-J0iGRX130201010-201208

sub69217-74010

main69217-74010-J0iGRX135201010-201208

DK.BLUE MC.,8S6

sub69217-74010

main69250-30030-A1iGRX130200910-201611

WHITE PEARL CS.,062

sub69250-30030

main69250-30030-A1iGRX133200910-201208

sub69250-30030

main69250-30030-B0iGRX133200910-201208

sub69250-30030

main69250-30030-B0iGRX13#200910-201611

SILVER ME.,1F7

sub69250-30030

main69250-30030-B2iGRX133200910-201208

sub69250-30030

main69250-30030-B2iGRX133200910-201611

ICE TITANIUM M.M.,1H4

sub69250-30030

main69250-30030-C0iGRX135200910-201208

sub69250-30030

main69250-30030-C0iGRX13#200910-201611

BLACK,202

sub69250-30030

main69250-30030-C4iGRX13#201611

PRECIOUS BLACK,219

sub69250-30030

main69250-30030-D1iGRX130200910-201208

GINGER RED M.M.,3R6

sub69250-30030

main69250-30030-D1iGRX133200910-201208

sub69250-30030

main69250-30030-D3iGRX13#201208-201611

DK. RED M.M.,3Q3

sub69250-30030

main69250-30030-E1iGRX133200910-201208

BRONZE M.M.,4T3

sub69250-30030

main69250-30030-E1iGRX135200910-201208

sub69250-30030

main69250-30030-F2iGRX13#..250G,350S201407-201611

BRILLIANT YELLOW,5B7

sub69250-30030

main69250-30030-J0iGRX135201010-201208

sub69250-30030

main69250-30030-J0iGRX130,133..250G,350S201010-201208

DK.BLUE MC.,8S6

sub69250-30030

main69250-30030-J2iGRX13#201611

TRUE BLUE M.M.,8W1

sub69250-30030

main69250-30030-J4iGRX13#201208-201611

DK.BLUE MC.,8T5

sub69250-30030

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69250-30040-A1iGRX133200910-201208

sub69250-30040

main69250-30040-A1iGRX13#200910-201611

WHITE PEARL CS.,062

sub69250-30040

main69250-30040-B0iGRX13#200910-201611

SILVER ME.,1F7

sub69250-30040

main69250-30040-B0iGRX135200910-201208

sub69250-30040

main69250-30040-B2iGRX133200910-201611

ICE TITANIUM M.M.,1H4

sub69250-30040

main69250-30040-B2iGRX133200910-201208

sub69250-30040

main69250-30040-C0iGRX13#200910-201611

BLACK,202

sub69250-30040

main69250-30040-C0iGRX133200910-201208

sub69250-30040

main69250-30040-C4iGRX13#201611

PRECIOUS BLACK,219

sub69250-30040

main69250-30040-D1iGRX135200910-201208

GINGER RED M.M.,3R6

sub69250-30040

main69250-30040-D1iGRX133200910-201208

sub69250-30040

main69250-30040-D3iGRX13#201208-201611

DK. RED M.M.,3Q3

sub69250-30040

main69250-30040-E1iGRX133200910-201208

sub69250-30040

main69250-30040-E1iGRX130200910-201208

BRONZE M.M.,4T3

sub69250-30040

main69250-30040-F2iGRX13#..250G,350S201407-201611

BRILLIANT YELLOW,5B7

sub69250-30040

main69250-30040-J0iGRX135201010-201208

DK.BLUE MC.,8S6

sub69250-30040

main69250-30040-J0iGRX130,133..250G,350S201010-201208

sub69250-30040

main69250-30040-J2iGRX13#201611

TRUE BLUE M.M.,8W1

sub69250-30040

main69250-30040-J4iGRX13#201208-201611

DK.BLUE MC.,8T5

sub69250-30040

main69250-74010-A2iGRX130200910-201208

WHITE PEARL CS.,062

sub69250-74010

main69250-74010-B0iGRX130200910-201208

SILVER ME.,1F7

sub69250-74010

main69250-74010-B3iGRX130200910-201208

ICE TITANIUM M.M.,1H4

sub69250-74010

main69250-74010-C0iGRX135200910-201208

BLACK,202

sub69250-74010

main69250-74010-D2iGRX135200910-201208

GINGER RED M.M.,3R6

sub69250-74010

main69250-74010-E1iGRX135200910-201208

BRONZE M.M.,4T3

sub69250-74010

main69250-74010-J4iGRX135201010-201208

DK.BLUE MC.,8S6

sub69250-74010

main69250-74010-J4iGRX135201010-201208

sub69250-74010

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-30320-A1iGRX13#200910-201611

WHITE PEARL CS.,062

sub69210-30320

main69210-30320-A1iGRX133200910-201208

sub69210-30320

main69210-30320-B0iGRX133200910-201611

SILVER ME.,1F7

sub69210-30320

main69210-30320-B0iGRX133200910-201208

sub69210-30320

main69210-30320-B2iGRX133200910-201611

ICE TITANIUM M.M.,1H4

sub69210-30320

main69210-30320-B2iGRX133200910-201208

sub69210-30320

main69210-30320-C0iGRX133200910-201208

sub69210-30320

main69210-30320-C0iGRX133200910-201611

BLACK,202

sub69210-30320

main69210-30320-C4iGRX13#201611

PRECIOUS BLACK,219

sub69210-30320

main69210-30320-D2iGRX130200910-201208

GINGER RED M.M.,3R6

sub69210-30320

main69210-30320-D2iGRX135200910-201208

sub69210-30320

main69210-30320-D4iGRX13#201208-201611

DK. RED M.M.,3Q3

sub69210-30320

main69210-30320-E2iGRX133200910-201208

sub69210-30320

main69210-30320-E2iGRX133200910-201208

BRONZE M.M.,4T3

sub69210-30320

main69210-30320-F2iGRX13#..250G,350S201407-201611

BRILLIANT YELLOW,5B7

sub69210-30320

main69210-30320-J0iGRX135201010-201208

DK.BLUE MC.,8S6

sub69210-30320

main69210-30320-J0iGRX135201010-201208

sub69210-30320

main69210-30320-J2iGRX13#201208-201611

DK.BLUE MC.,8T5

sub69210-30320

main69210-30320-J7iGRX13#201611

TRUE BLUE M.M.,8W1

sub69210-30320

main69211-74020-A2iGRX130200910-201208

WHITE PEARL CS.,062

sub69211-74020

main69211-74020-B0iGRX135200910-201208

SILVER ME.,1F7

sub69211-74020

main69211-74020-B3iGRX130200910-201208

ICE TITANIUM M.M.,1H4

sub69211-74020

main69211-74020-C0iGRX130200910-201208

BLACK,202

sub69211-74020

main69211-74020-D2iGRX135200910-201208

GINGER RED M.M.,3R6

sub69211-74020

main69211-74020-E0iGRX130200910-201208

BRONZE M.M.,4T3

sub69211-74020

main69211-74020-J0iGRX130201010-201208

sub69211-74020

main69211-74020-J0iGRX130201010-201208

DK.BLUE MC.,8S6

sub69211-74020

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-30110iGRX13#200910-201611

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-30090iGRX13#200910-201611

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-22120-C0iGRX130,135..250G201611

BLACK,TRIM0#,2#

main69277-22120-C0iGRX130,135..250G200910-201611

BLACK,TRIM2#

main69277-22120-C0iGRX130,135200910-201010

BLACK,TRIM0#,4#

main69277-22120-C0iGRX133..350S200910-201208

BLACK,TRIM0#

main69277-22120-C0iGRX133..350S200910-201208

main69277-22120-C0iGRX130,135201010-201208

BLACK,TRIM0#,2#,4#

main69277-22120-C0iGRX130,135201010-201208

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-22090-C0iGRX130200910-201208

main69278-22090-C0iGRX130,135200910-201010

BLACK,TRIM0#,4#

main69278-22090-C0iGRX133..350S200910-201611

BLACK,TRIM2#

main69278-22090-C0iGRX133..350S200910-201208

BLACK,TRIM0#

main69278-22090-C0iGRX130,135201010-201208

BLACK,TRIM0#,2#,4#

main69278-22090-C0iGRX130,135201010-201208

main69278-22090-C0iGRX130,135..250G201611

BLACK,TRIM0#,2#

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-20020-C0iGRX133..350S200910-201208

BLACK,TRIM2#,4#

sub69283-20020

main69283-20020-C0iGRX133..350S200910-201208

BLACK,TRIM0#,2#

sub69283-20020

main69283-20020-C0iGRX133..350S200910-201208

BLACK,TRIM0#,2#,4#

sub69283-20020

main69283-20020-C0iGRX13#201208-201611

BLACK,TRIM2#

sub69283-20020

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-20010-C0iGRX133..350S200910-201208

BLACK,TRIM2#,4#

sub69284-20010

main69284-20010-C0iGRX133..350S200910-201208

BLACK,TRIM0#,2#

sub69284-20010

main69284-20010-C0iGRX133..350S200910-201208

BLACK,TRIM0#,2#,4#

sub69284-20010

main69284-20010-C0iGRX13#201208-201611

BLACK,TRIM2#

sub69284-20010

69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iGRX13#200910-201611

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iGRX13#200910-201611

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-22130iGRX13#200910-201611

69311BPLATE, DOOR LOCK BASE, RH

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-22130iGRX13#200910-201611

69312APLATE, DOOR LOCK BASE, LH

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iGRX13#200910-201611

69395BUSH(FOR DOOR OUTSIDE HANDLE)

main69239-30010iGRX13#200910-201611

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33010iGRX13#200910-201611

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-22090iGRX13#200910-201611

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-22090iGRX13#200910-201611

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-22080iGRX13#200910-201611

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-22080iGRX13#200910-201611

6923730010RETAINER, DOOR OUTSIDE HANDLE

main69237-30010

6929630010SCREW, DOOR INSIDE HANDLE

main69296-30010

6941922010STOP, SLIDE DOOR OPEN, LH

main69419-22010

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9015950083

main90159-50083

9018905003

main90189-05003

38 parts on this diagram · 1 diagram in section
