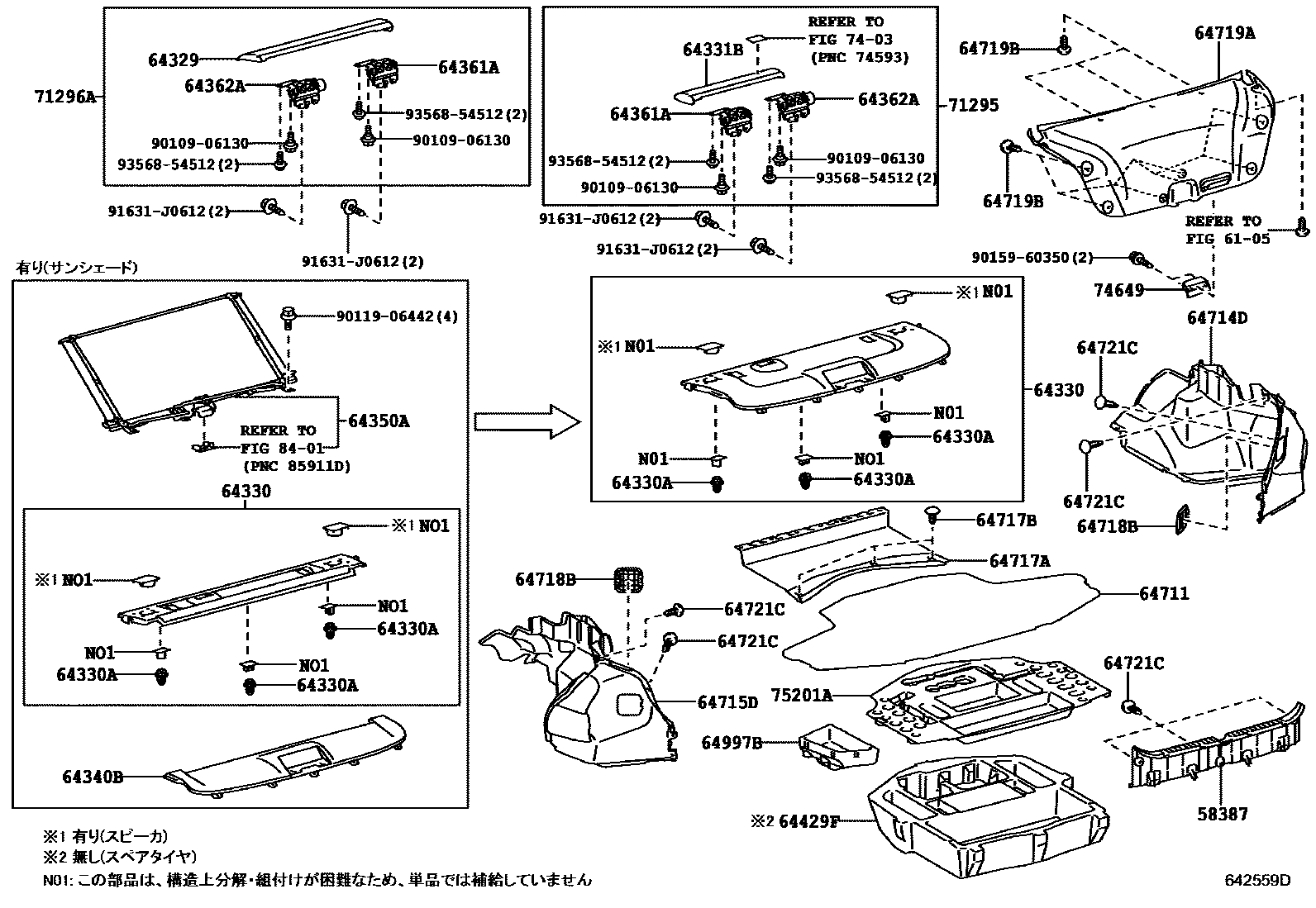

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-22120-C0iGRX13#..250S,25RDS,35RDS201611

BLACK,TRIM2#

6105

64329BOARD, PACKAGE TRAY TRIM, REAR

main64329-22010-A2iGRX13#..250G,PREM200910-201208

SHELL,TRIM0#

main64329-22010-C1iGRX13#..250G,350S200910-201208

BLACK,TRIM2#,4#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-22B30-A0supersedes 64330-22B20-A0iGRX13#..250G,PREM200910-201208

main64330-22B30-C0supersedes 64330-22B20-C0iGRX13#..250G,350S200910-201208

main64330-22B40-A0iGRX133..PREM200910-201208

main64330-22B50-A0iGRX133..PREM200910-201208

main64330-22B50-C1supersedes 64330-22B40-C0iGRX133..PREM201208-201611

main64330-22B60-A0iGRX133..PREM200910-201208

main64330-22B60-C1supersedes 64330-22B20-C0iGRX130,135;GRX133..350S201208-201611

main64330-22B70-A0iGRX133..PREM200910-201208

main64330-22B70-C1supersedes 64330-22B20-C0iGRX130,135;GRX133..350S201208-201611

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161×3iGRX13#200910-201208

64331BBOARD, PACKAGE TRAY TRIM, FRONT

main64331-22370-A2iGRX13#..250G,PREM200910-201208

SHELL,TRIM0#

main64331-22370-C1iGRX135201112-201208

BLACK,TRIM2#

64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2

main64340-22010-A0iGRX133..PREM200910-201208

main64340-22020-A0iGRX133..PREM200910-201208

main64340-22020-C0supersedes 64340-22010-C0iGRX133..PREM201208-201611

64350ASHADE ASSY, REAR WINDOW

64361AHINGE, PACKAGE TRAY TRIM, NO.1

main64361-22020×2iGRX13#201611

64362AHINGE, PACKAGE TRAY TRIM, NO.2

main64362-22030×2iGRX13#201611

64429FBOX, LUGGAGE COMPARTMENT TRIM

main64993-22010iGRX130,133..250G,350S201210-201611

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-22380-C2iGRX133..350S200910-201208

BLACK,TRIM2#,4#

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-22340-C1iGRX133..350S200910-201208

BLACK,TRIM2#,4#

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-22320-C1iGRX133..350S200910-201208

BLACK,TRIM2#,4#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-22180-C1iGRX13#..250S,25RDS,35RDS201611

BLACK,TRIM2#

main64717-22190-C0iGRX133..350S201505-201510

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-08186-C0×3iGRX133..350S200910-201208

BLACK,TRIM2#,4#

main90467-08186-C3×3iGRX13#201610-201611

BLACK,TRIM2#

64718BCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-33010×2iGRX13#200910-201208

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-22110-C1iGRX133..350S200910-201208

BLACK,TRIM2#,4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0×10iGRX133..350S200910-201208

BLACK,TRIM2#,4#

main90467-08186-C3×10iGRX13#201610-201611

BLACK,TRIM2#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C0×7iGRX133..350S200910-201208

BLACK,TRIM2#,4#

main90467-08186-C3×7iGRX13#201610-201611

BLACK,TRIM2#

64997BBOX, DECK FLOOR, LH

main64997-22010iGRX13#200910-201208

71295PLATE, REAR SEATBACK, UPPER RH

main71295-22020-A2iGRX13#..250G,PREM200910-201111

SHELL,TRIM0#

main71295-22020-C1iGRX13#..250G,350S200910-201111

BLACK,TRIM2#,4#

main71295-22021-A2iGRX13#..250G,PREM201112-201208

SHELL,TRIM0#

main71295-22021-C1iGRX135201112-201208

BLACK,TRIM2#

71296APLATE, REAR SEATBACK, UPPER LH

main71296-22020-A2iGRX13#..250G,PREM200910-201208

SHELL,TRIM0#

main71296-22020-C1iGRX13#..250G,350S200910-201208

BLACK,TRIM2#,4#

7403

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-51010-C0iGRX133..350S200910-201208

BLACK,TRIM2#,4#

main74649-51010-C3iGRX13#..250S,25RDS,35RDS201702

BLACK,TRIM2#

75201ABOX, TOOL

main75201-22020-C0iGRX135200910-200911

BLACK,TRIM2#

main75201-22021-C0iGRX133..350S200911-201208

BLACK,TRIM2#,4#

8401

9010906130

main90109-06130

9011906442

main90119-06442

9015960350

main90159-60350

91631J0612

main91631-J0612

9356854512

main93568-54512

32 parts on this diagram · 1 diagram in section
