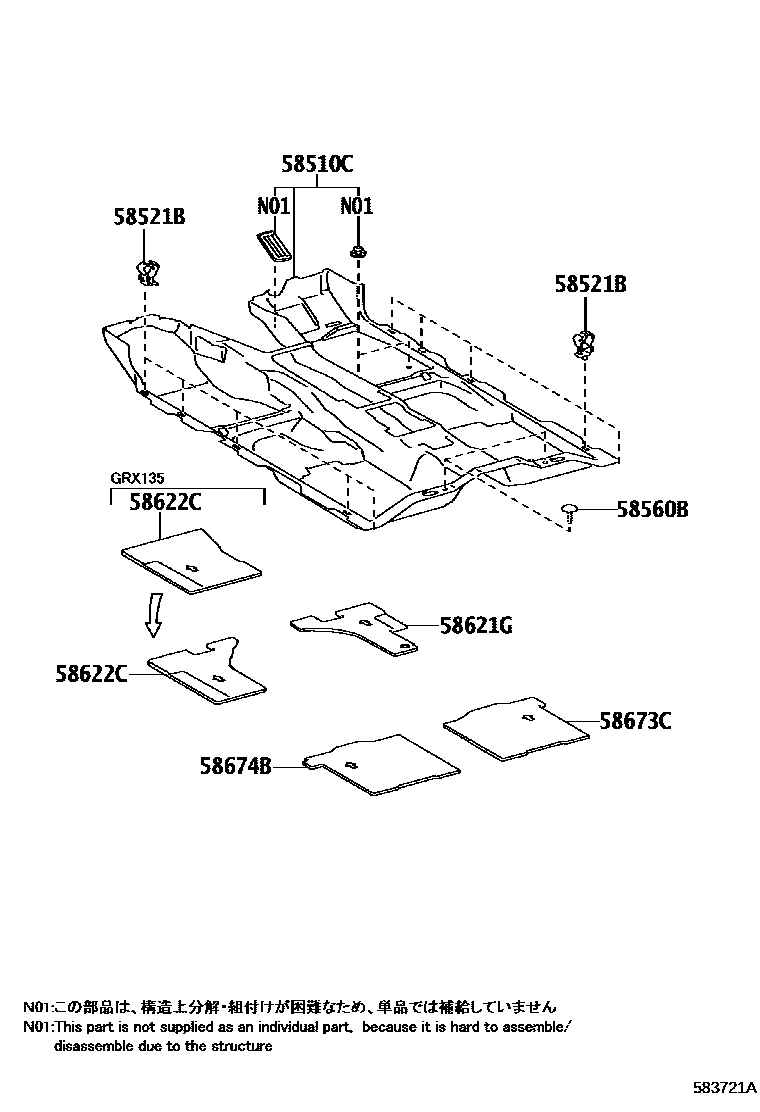

MAT & CARPET

0001 1 0002 1 0003 1GRMN

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-22A50-A0iGRX130,133..250G,PREM200910-201208

SHELL,TRIM0#

main58510-22A50-C0iGRX130,133..250G,PREM201112-201208

BLACK,TRIM2#

main58510-22A50-E0iGRX130200910-201208

ASH.BROWN,TRIM4#

main58510-22A60-C0iGRX130200910-201208

BLACK,TRIM2#

main58510-22A70-A0iGRX135200910-201208

SHELL,TRIM0#

main58510-22A70-E0iGRX135200910-201208

ASH.BROWN,TRIM4#

main58510-22A90-C1iGRX130,133..250G,PREM201208-201407

BLACK,TRIM2#

main58510-22A91-C1iGRX130..250G201611

BLACK,TRIM0#,2#

main58510-22B01-C0iGRX130,133..250S,25RDS,35RDS201611

BLACK,TRIM2#

main58510-22B11-C1iGRX135..250G201611

BLACK,TRIM0#,2#

main58510-22B60-C0iGRX135..250S201611

BLACK,TRIM2#

main58510-22A80-A0iGRX133..PREM200910-201208

main58510-22B20-C1iGRX130201208-201407

main58510-22B21-C1iGRX130201407-201611

main58510-22B30-C0supersedes 58510-22B00-C0iGRX130..250G201208-201407

main58510-22B31-C0supersedes 58510-22B01-C0iGRX130..250G201407-201611

main58510-22B40-C1supersedes 58510-22B10-C1iGRX135201208-201407

main58510-22B41-C1supersedes 58510-22B11-C1iGRX135201407-201611

main58510-22B50-C0iGRX133..350S201505-201510

58521BHOOK, FLOOR CARPET

main58521-22110×10iGRX13#201611

58560BCLIP(FOR FLOOR CARPET, REAR)

main90467-05164-B8×2iGRX13#200910-201208

LT.GRAY

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-22130iGRX13#200910-201208

main58621-22131iGRX13#201305-201611

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-22090iGRX130,133201208-201304

main58622-22091iGRX130,133201305-201611

main58622-22100iGRX135201208-201304

main58622-22101iGRX135201305-201611

58673CPAD, REAR FLOOR SILENCER, NO.1

main58673-22030iGRX13#200910-201208

main58673-22031iGRX13#201611

58674BPAD, REAR FLOOR SILENCER, NO.2

main58674-22030iGRX13#201208-201304

main58674-22031iGRX13#201305-201611

7 parts on this diagram · 3 diagrams in section
