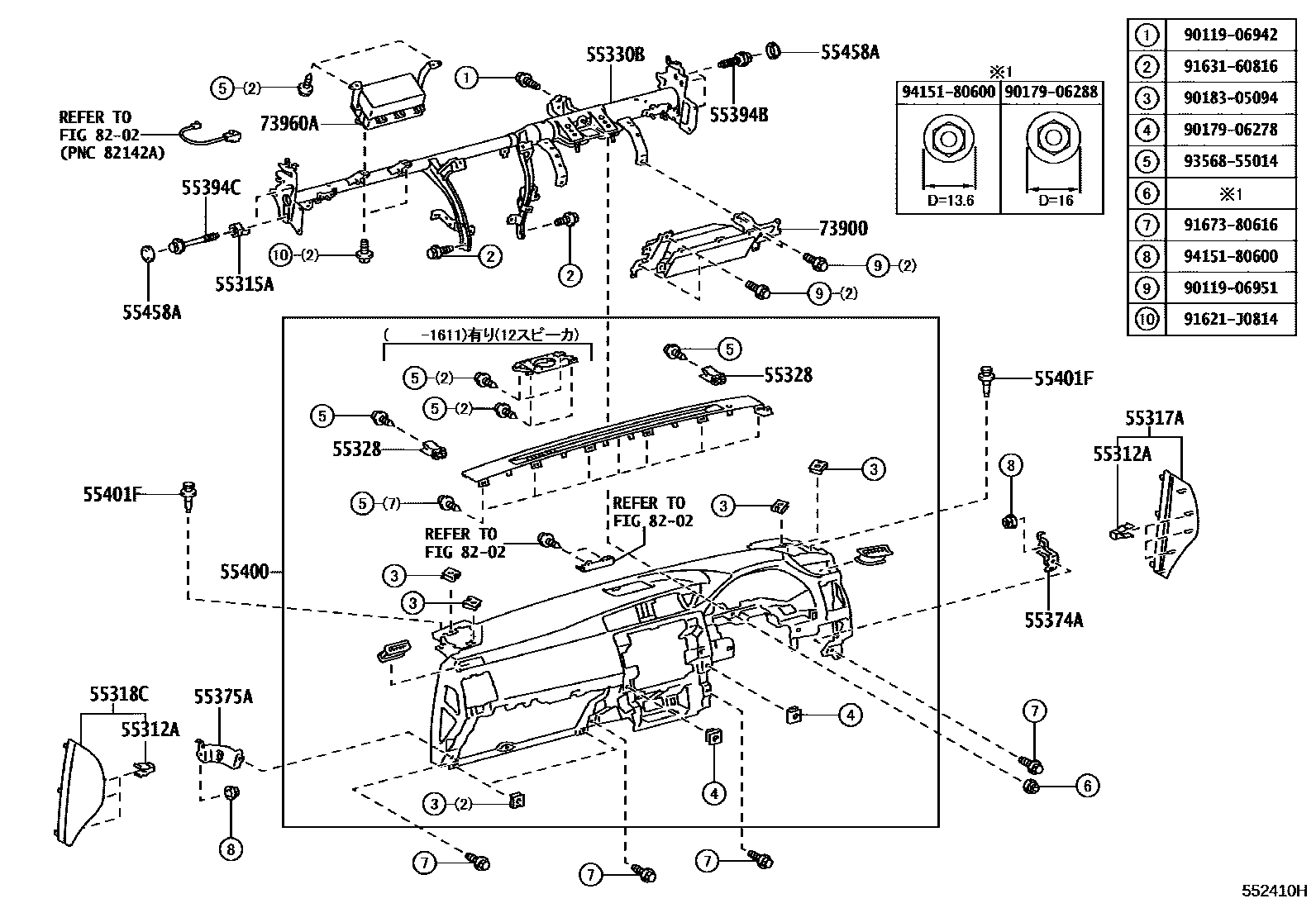

INSTRUMENT PANEL & GLOVE COMPARTMENT
55312ACLIP, INSTRUMENT PANEL
MELLOW WHITE
55315ASPACER, INSTRUMENT PANEL, NO.1
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM0#,2#
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM0#,2#
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH
55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH
55394BBOLT, INSTRUMENT PANEL
55394CBOLT, INSTRUMENT PANEL
55400PAD ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
55401FCLIP(FOR SAFETY PAD)
55458ACAP, INSTRUMENT PANEL SAFETY PAD
73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1
BLACK,TRIM2#
BLACK,TRIM2#
SHELL,TRIM0#
BLACK,TRIM2#
ASH BROWN,TRIM4#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
9011906942
main90119-06942
9011906951
main90119-06951
9017906278
main90179-06278
9017906288
main90179-06288
9018305094
main90183-05094
91621J0814
main91621-J0814
9163160816
main91631-60816
9167380616
main91673-80616
9356855014
main93568-55014
9415180600
main94151-80600
26 parts on this diagram · 4 diagrams in section
