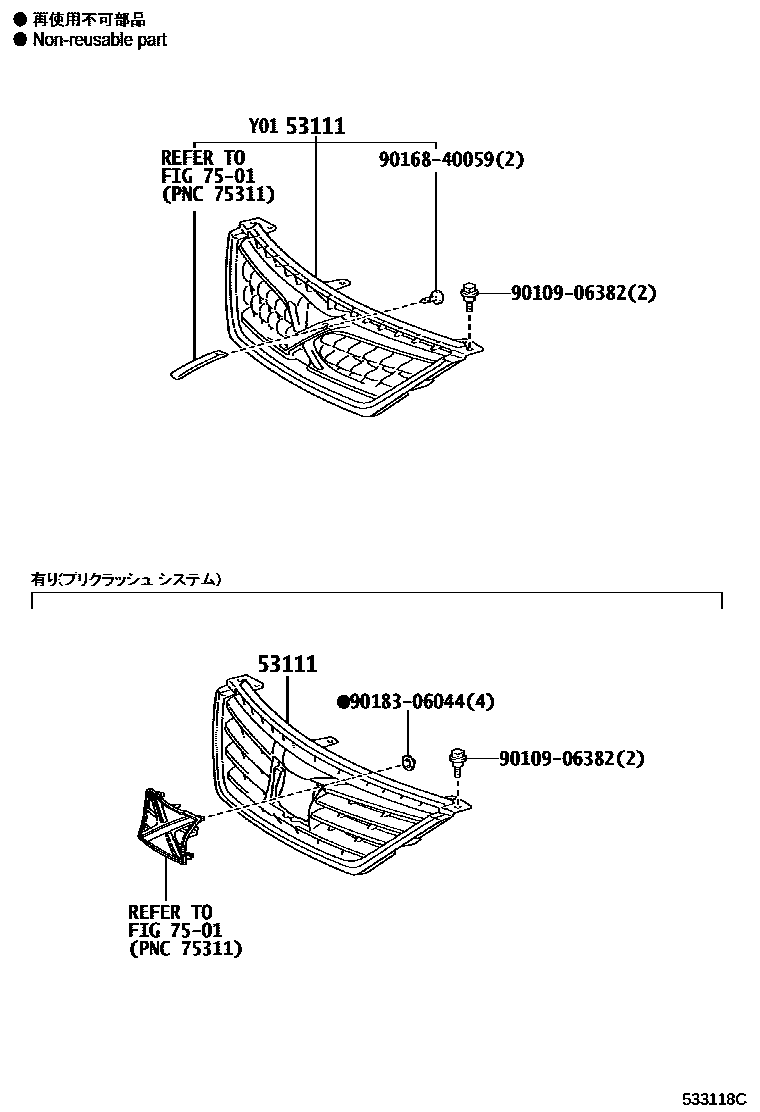

RADIATOR GRILLE

0001 1 0002 1 0003 1 0004 1GRMN

53111GRILLE, RADIATOR

main53101-22730iGRX130,135;GRX133..350S; GRX130..250G; GRX133..350S201208-201611

main53111-22A00iGRX13#; GRX130,133..250S,35RDS; GRX130,133..25RDS,35RDS; GRX133201611-201912

main53101-22670iGRX13#..250G,350S200910-201208

main53101-22680supersedes 53111-22870iGRX133..PREM200910-201208

main53101-22700iGRX133..350S201505-201510

main53111-22840supersedes 53111-22870iGRX133..PREM200910-201208

main53111-22880iGRX130..250G; GRX133..350S201210-201611

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9010906382

main90109-06382

9016840059

main90168-40059

9018306044

main90183-06044

5 parts on this diagram · 4 diagrams in section
