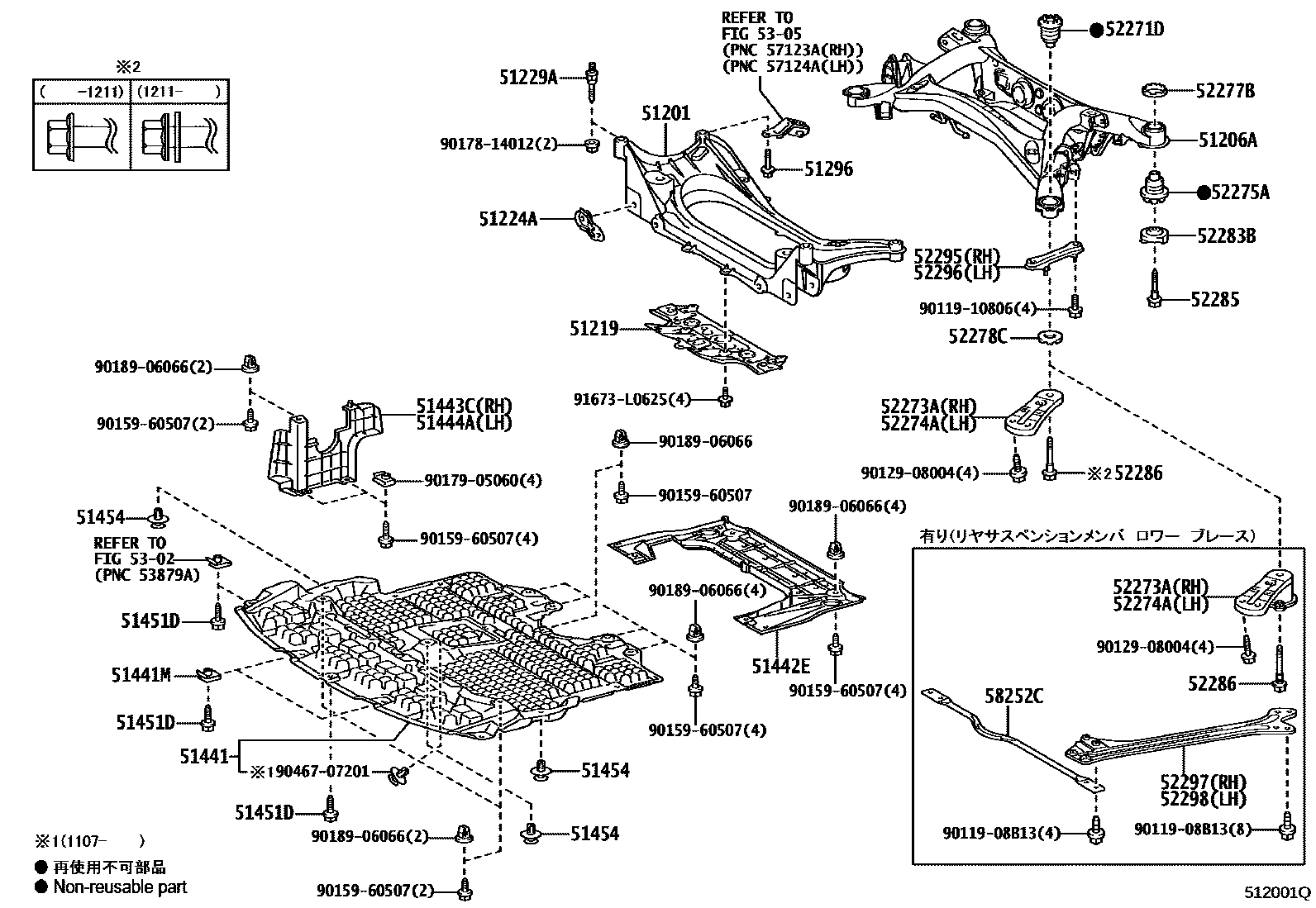

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1G'S OR GR SPORT OR GRMN

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30130iGRX130,133200910-201107

main51201-30140iGRX130,133201108-201208

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30081iGRX130,135200910-201208

main51206-30082iGRX130,135201611

main51206-30101iGRX133200910-201208

main51206-30121iGRX133201611

main51206-30160iGRX133201505-201506

main51206-30161iGRX133201507-201508

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-30031iGRX130,133201611

main51403-WY030iGRX133201903

51224APLATE, FRONT SUSPENSION MENBER BRACE

main51224-30030×2iGRX130,133201611

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main90951-01004×2iGRX130,133200910-201111

main90951-01005×2iGRX135200910-201111

main90951-01006×2iGRX130,133201611

main90951-01007×2iGRX135201208-201611

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main90119-16013×2iGRX130,133200910-201111

main90119-16017×2iGRX135200910-201111

main90119-16021×2iGRX130,133201111-201208

main90119-16022×2iGRX135201611

51441COVER, ENGINE UNDER, NO.1

main51441-22370iGRX130,133200910-201106

main51441-22371iGRX130,133201611

main51441-22380iGRX135201611

51441MNUT

main90179-05060×2iGRX13#200910-201208

51442ECOVER, ENGINE UNDER, NO.2

main51442-30181iGRX130,133200910-201208

51443CCOVER, ENGINE UNDER, REAR RH

main51443-30141iGRX130,133200910-201208

51444ACOVER, ENGINE UNDER, REAR LH

main51444-30171iGRX130,133200910-201208

51451DSCREW, NO.1

main90159-60477×5iGRX13#200910-201208

51454CLIP

main90467-07166×3iGRX13#200910-201003

main90467-07214×3iGRX13#201004-201208

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-30120×2iGRX13#200910-201208

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-30070iGRX130200910-201208

main52273-30080iGRX13#..250G,PREM201208-201611

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-30050iGRX130..250G201208-201611

main52273-30080iGRX130,135..250G,250S201611

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30130×2iGRX13#201611

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30060×2iGRX13#200910-200912

main52277-30070×2iGRX13#201611

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-30050×2iGRX13#200910-200912

main52278-30080×2iGRX13#201611

52283BSTOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30060×2iGRX13#201208-201611

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021×2iGRX13#201208-201209

main90119-14154×2iGRX13#201210-201611

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-53020×2iGRX13#201208-201211

main90119-14148×2iGRX13#201611

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30030iGRX13#200910-201208

main52295-WY020iGRX130..250G201210-201611

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-30030iGRX13#201208-201611

main52295-WY020iGRX130..250G201210-201611

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-53030iGRX130,133..25RDS,35RDS201611

main52297-30040supersedes 52297-53030iGRX133201903

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-53030iGRX130,133..25RDS,35RDS201611

main52298-30040supersedes 52298-53030iGRX130..250S201709

5302

5305

58252CBRACE, FLOOR PANEL, REAR NO.1

main58252-30020iGRX130,133..25RDS,35RDS201611

main58252-30050iGRX130..250S201709

main58252-WY020supersedes 58252-30020iGRX130..250G201210-201305

9011908B13

main90119-08B13

9011910806

main90119-10806

9012908004

main90129-08004

9015960507

main90159-60507

9017814012

main90178-14012

9017905060

main90179-05060

9018906066

main90189-06066

9046707201

main90467-07201

91673L0625

main91673-L0625

38 parts on this diagram · 3 diagrams in section
