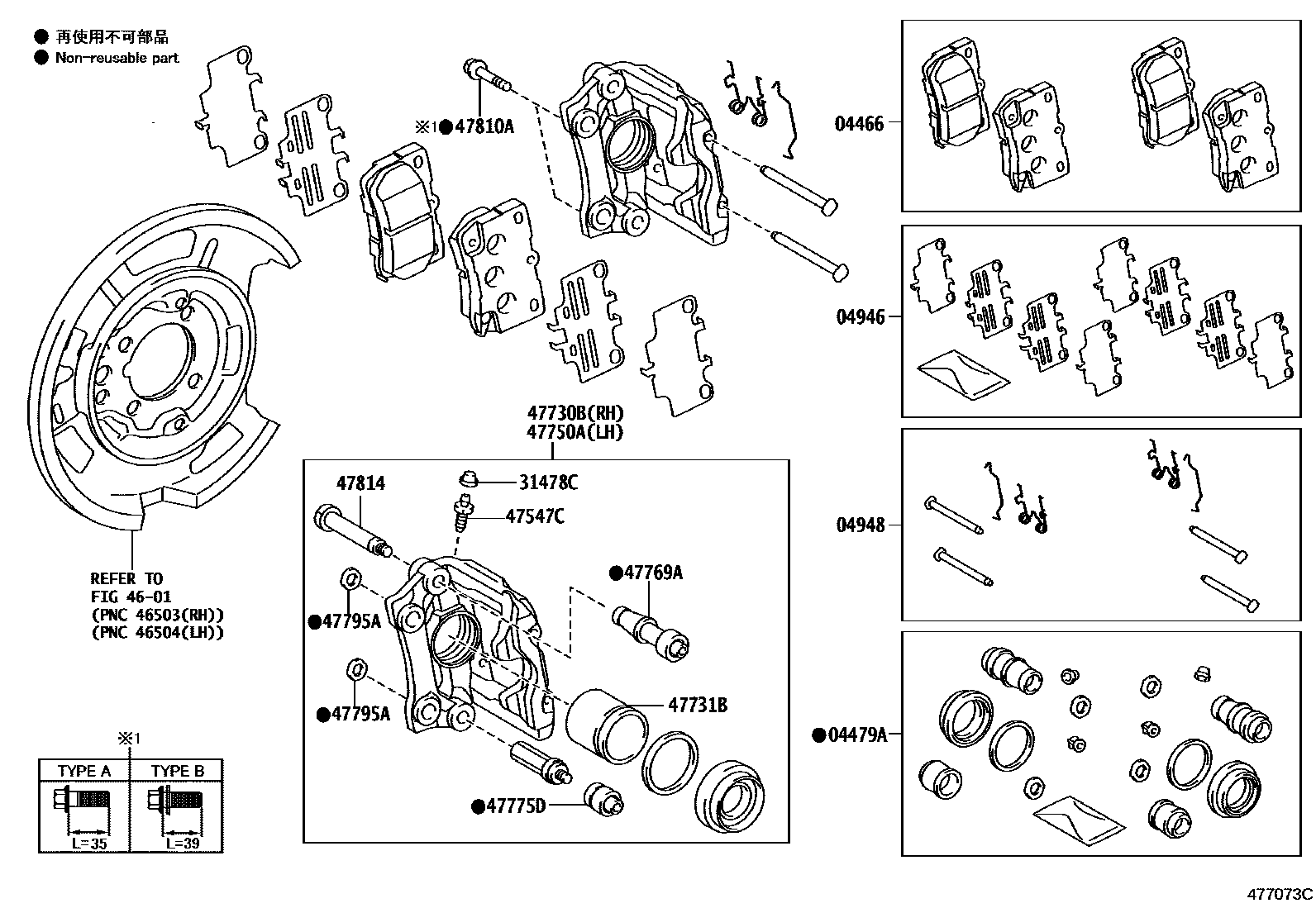

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0005 1G'S 0006 1G'S & GR-SPORT & GRMN

04466PAD KIT, DISC BRAKE, REAR

main04466-22190iGRX133200910-201309

main04466-30230iGRX130200910-201406

main04466-30300iGRX135201309-201611

main04466-30330iGRX130201406-201611

main04466-53010iGRX135200910-201406

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-22170iGRX133201104-201309

main04479-30510iGRX130,135200910-201104

sub04479-53070

main04479-30590iGRX133201309-201611

main04479-53070iGRX130,135201104-201406

main04479-53090iGRX130,135201406-201611

main04479-61040iGRX133200910-201104

sub04479-22170

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-22090iGRX133200910-201309

main04946-30110iGRX130,135200910-201406

main04946-47080iGRX133201309-201611

04948FITTING KIT, DISC BRAKE, REAR

main04948-30210iGRX133200910-201309

main04948-30220iGRX130,135200910-201406

main04948-30240iGRX13#201309-201611

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGRX13#200910-201611

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iGRX133201309-201611

main47547-27030iGRX13#200910-201406

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-22221iGRX133200910-201208

main47830-22221iGRX133201208-201211

main47830-30370iGRX130201212-201406

main47830-30400iGRX133201211-201309

main47830-30410iGRX133201309-201611

main47830-30420iGRX130,135201406-201611

main47830-53051iGRX130,135201208-201212

main47830-53051iGRX130,135200910-201208

main47830-53052iGRX135201212-201406

47731BPISTON, REAR DISC BRAKE

main47831-22220iGRX133200910-201611

main47831-30300iGRX130,135200910-201611

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-22221iGRX133200910-201208

main47850-22221iGRX133201208-201211

main47850-30370iGRX130201212-201406

main47850-30400iGRX133201211-201309

main47850-30410iGRX133201309-201611

main47850-30420iGRX130,135201406-201611

main47850-53051iGRX130,135200910-201208

main47850-53051iGRX130,135201208-201212

main47850-53052iGRX135201212-201406

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-30300iGRX130,135200910-201406

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-30340iGRX13#200910-201104

sub47875-30341

main47875-30341iGRX133201104-201406

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300iGRX13#200910-201611

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525iGRX13#200910-201208

main90105-10525iGRX133201208-201212

main90105-12401iGRX13#201709

main90119-12416iGRX133201212-201611

main90119-12416iGRX13#201611-201708

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300iGRX133200910-201406

main47814-33240iGRX133201309-201611
