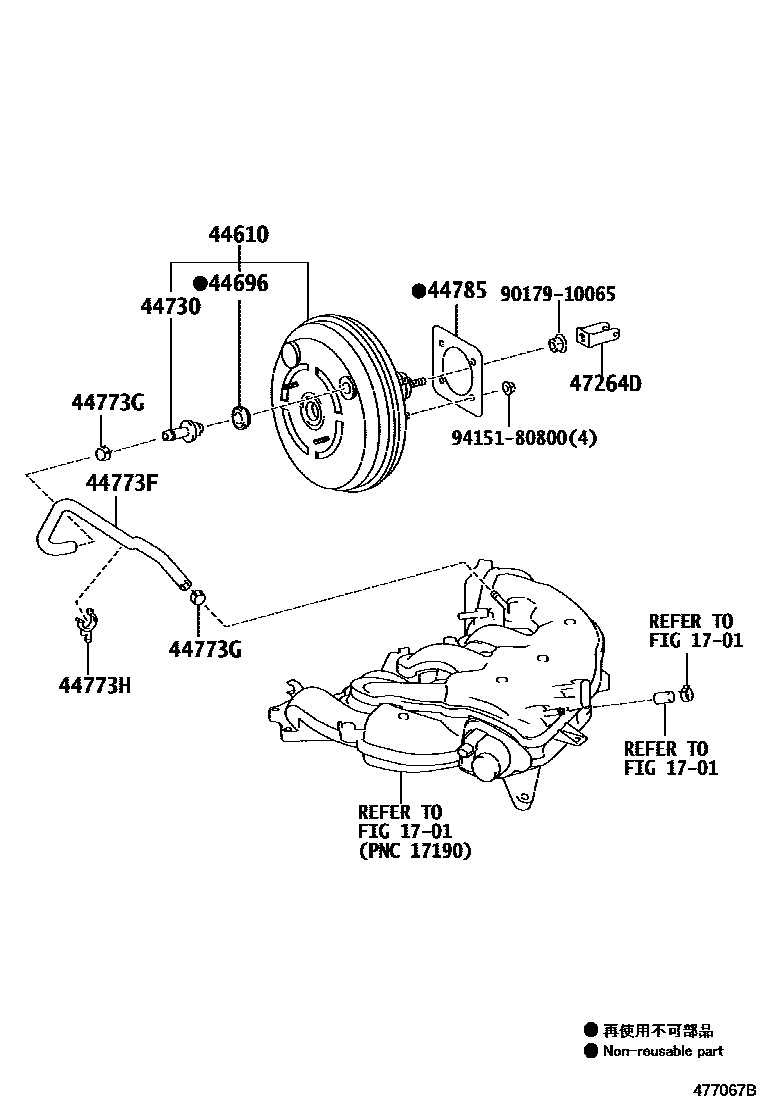

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1GRMN 6MT

1701

44610BOOSTER ASSY, BRAKE

main44610-30B21iGRX130,135200910-201208

main44610-30B31iGRX133200910-201208

main44610-22A40supersedes 44610-30B31iGRX133..350S201505-201510

44696GROMMET, CHECK VALVE

main90480-24439iGRX13#200910-201208

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iGRX13#201208-201611

main44730-20170iGRX133201903

44773FHOSE, UNION TO CHECK VALVE

main44773-22540iGRX130,135200910-201208

main44773-22550iGRX133201208-201611

main44773-30580iGRX133201208-201611

main44773-22560supersedes 44773-30580iGRX133201903

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014×2iGRX130,135200910-201208

44773HCLAMP(FOR UNION TO CHECK VALVE HOSE)

main90469-17003iGRX130,135200910-201208

44785GASKET, BRAKE BOOSTER

main44785-47010iGRX13#200910-201208

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iGRX13#200910-201208

9017910065

main90179-10065

9415180800

main94151-80800

11 parts on this diagram · 3 diagrams in section
