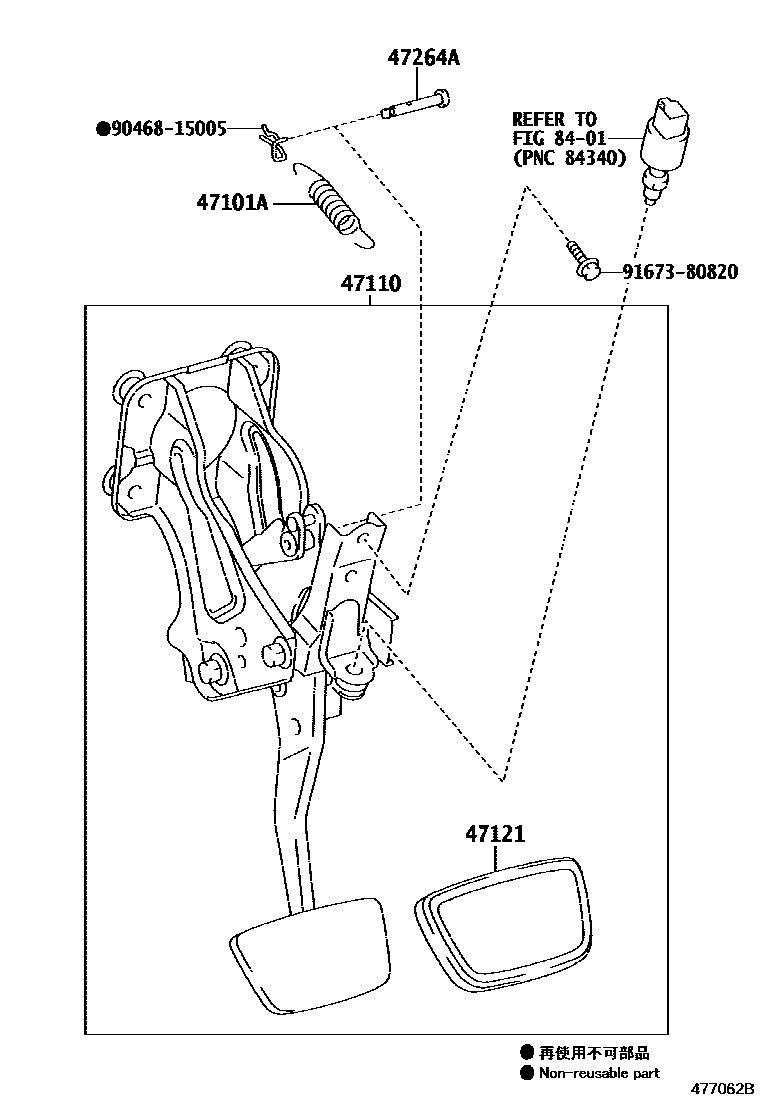

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-13009iGRX13#201611

47110SUPPORT ASSY, BRAKE PEDAL

main47110-22452iGRX13#..250S,25RDS,35RDS201611

main47110-30452iGRX13#..250G,PREM200910-201208

main47110-30453iGRX130,135..250G201611

main47110-22460supersedes 47110-22452iGRX133201903

47121PAD, BRAKE PEDAL

main47121-22040iGRX13#..250S,25RDS,35RDS201611

main47121-50020iGRX13#..250G,PREM200910-201208

main31321-53010supersedes 47121-22040iGRX133201903

47264APIN(FOR PUSH ROD)

main90249-06180iGRX13#201611

8401

9046815005

main90468-15005

9167380820

main91673-80820

7 parts on this diagram · 1 diagram in section
