Toyota MARK X — STEERING WHEEL

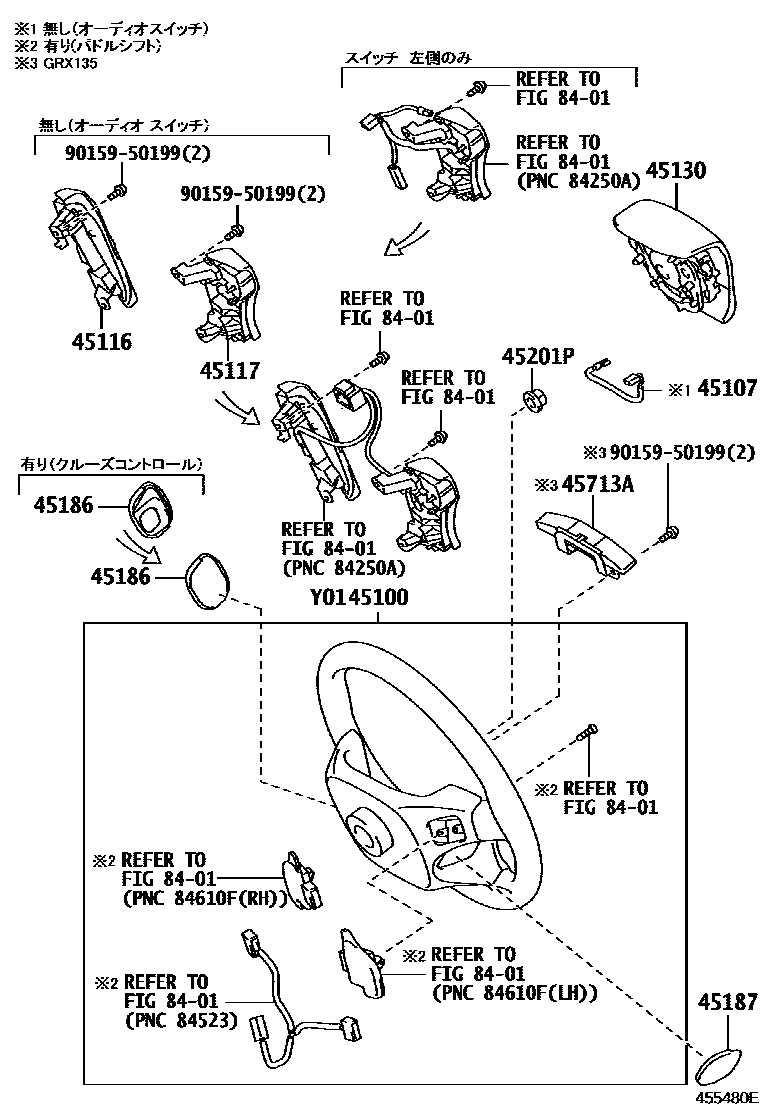

Parts diagram

45100WHEEL ASSY, STEERING

45107WIRE SUB-ASSY, HORN BUTTON

45116ORNAMENT, STEERING WHEEL, NO.1

45117ORNAMENT, STEERING WHEEL, NO.2

45130BUTTON ASSY, HORN

45186COVER, STEERING WHEEL, LOWER NO.2

45187COVER, STEERING WHEEL, LOWER NO.3

45201PNUT, STEERING WHEEL SET

45713ADAMPER, STEERING SHAKE

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950199

11 parts on this diagram · 3 diagrams in section

STEERING WHEEL for Toyota MARK X

This section contains 13 genuine Toyota parts for the STEERING WHEEL system of the Toyota MARK X. Key components include: WHEEL ASSY, STEERING, WIRE SUB-ASSY, HORN BUTTON, ORNAMENT, STEERING WHEEL, NO.1, ORNAMENT, STEERING WHEEL, NO.2, ORNAMENT, STEERING WHEEL MARK.
