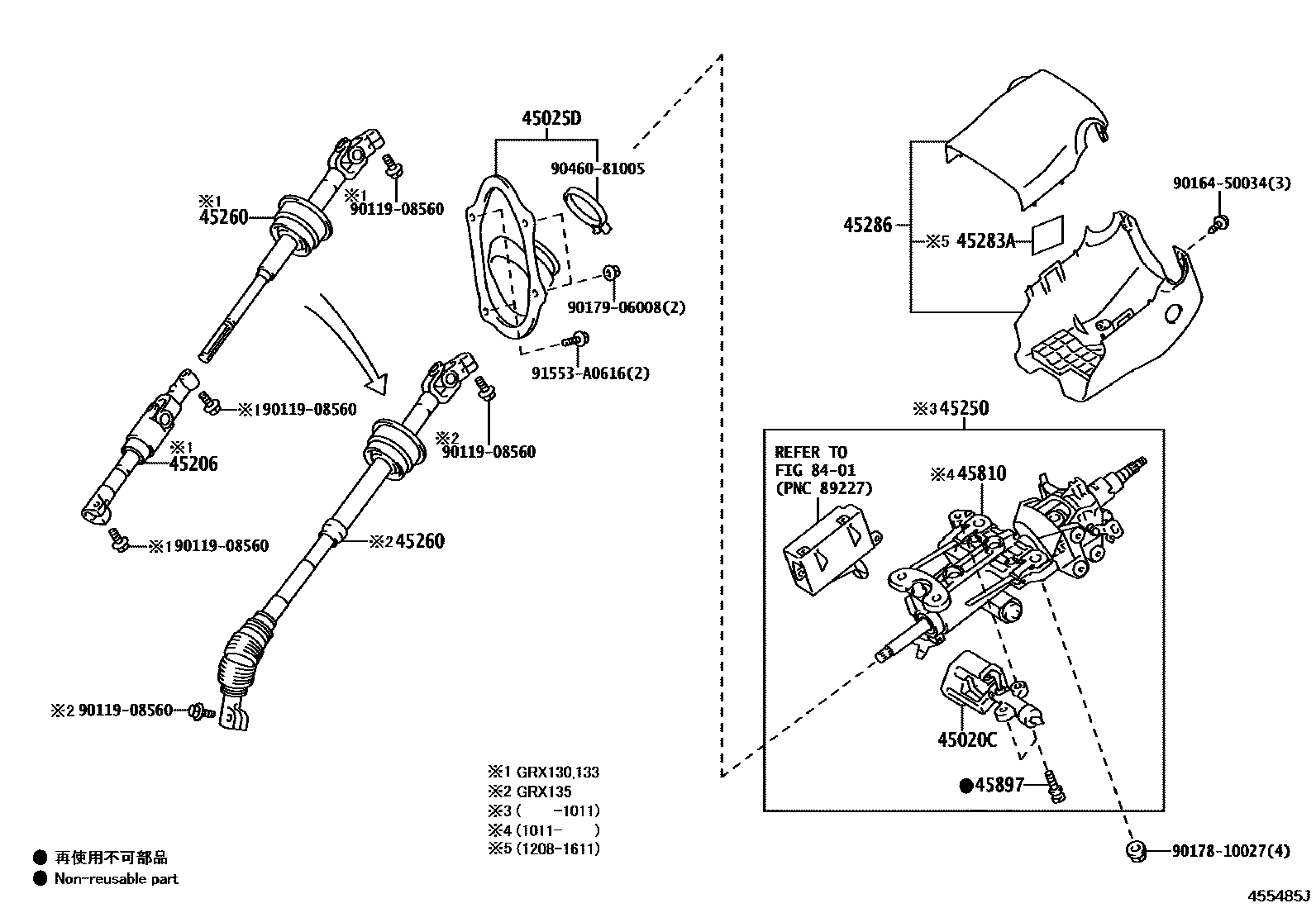

STEERING COLUMN & SHAFT

0001 1 0002 1VGRS 0003 1 0004 1��(��������)

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30A70iGRX133200910-201208

main45020-68040supersedes 45020-68040iGRX130,135..250G201611-201912

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-22130iGRX130..250G201208-201611

main45025-22140iGRX135..250G201611

main45025-30350supersedes 45025-30370iGRX130,133..250S,25RDS,35RDS201611

main45025-30360iGRX135..PREM201208-201303

main45025-30361iGRX135..PREM201303-201611

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-30100iGRX130,133..250G,PREM200910-201112

sub45206-30140

main45206-30102iGRX130,133..250G,PREM201112-201208

main45206-30160iGRX133..350S200910-201112

main45206-30161iGRX133..350S201112-201208

main45206-30210iGRX130,133201208-201611

main45206-30141iGRX130,133..250G,350S201210-201611

main45206-30190iGRX133..350S201505-201510

45250COLUMN ASSY, STEERING

main45250-30A80iGRX133200910-201011

sub89227-30050

sub93219-15010

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-22370iGRX130,133..250G,PREM200910-201208

main45260-22371iGRX130,133..250G,PREM201301-201611

main45260-22380iGRX135200910-201112

sub45260-30210

main45260-22381iGRX135201112-201208

main45260-22382iGRX135201611

main45260-WY010iGRX130,133..250G,350S201210-201212

main45260-WY011iGRX130,133..250S,35RDS201709

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iGRX13#..350S,PREM201208-201611

45286COVER, STEERING COLUMN

main45024-30902-C0iGRX133..350S200910-201208

BLACK,TRIM2#,4#

main45286-22964-C0iGRX13#..250S,25RDS,35RDS201611

BLACK,TRIM2#

45810GEAR ASSY, TILT STEERING, W/MOTOR

main45810-30180iGRX133201011-201208

45897BOLT, STEERING LOCK SET

main45897-12020×2supersedes 45897-12020iGRX135200910-201208

8401

9011908560

main90119-08560

9016450034

main90164-50034

9017810027

main90178-10027

9017906008

main90179-06008

9046081005

main90460-81005

91553A0616

main91553-A0616

16 parts on this diagram · 4 diagrams in section
