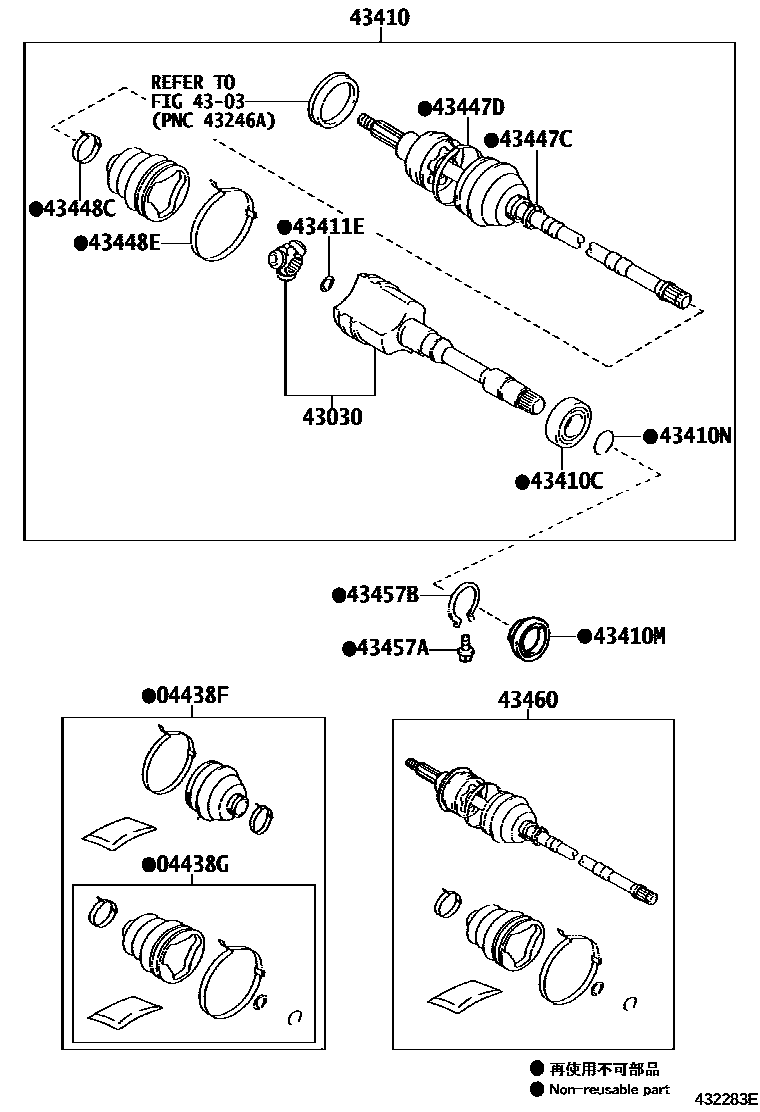

FRONT DRIVE SHAFT

0001 1��� 0002 1���

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-30010iGRX135200910-201009

main04427-30080iGRX135201009-201208

sub04427-30081

main04427-30090iGRX135201611

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-30070iGRX135200910-201208

sub04437-30071

main04437-30130iGRX135201211-201611

4303

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-30020iGRX135200910-201208

main43030-30040iGRX135201211-201611

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-30020iGRX135200910-201008

main43410-30021iGRX135201009-201208

main43410-30050iGRX135201211-201611

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36010iGRX135200910-201208

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35030iGRX135200910-201208

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iGRX135200910-201208

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-20065iGRX135200910-201208

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-22030iGRX135200910-201208

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-22040iGRX135201611

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-30100iGRX135201211-201611

main90949-01804iGRX135200910-201208

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-30090iGRX135201611

main90949-01803iGRX135201208-201211

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90901-19060iGRX135200910-201208

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90520-65002iGRX135200910-201208

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-39215iGRX135200910-201009

main43460-39216iGRX135201009-201208

sub43460-39217

main43460-39315iGRX135201211-201611

16 parts on this diagram · 2 diagrams in section
