DISC WHEEL & WHEEL CAP

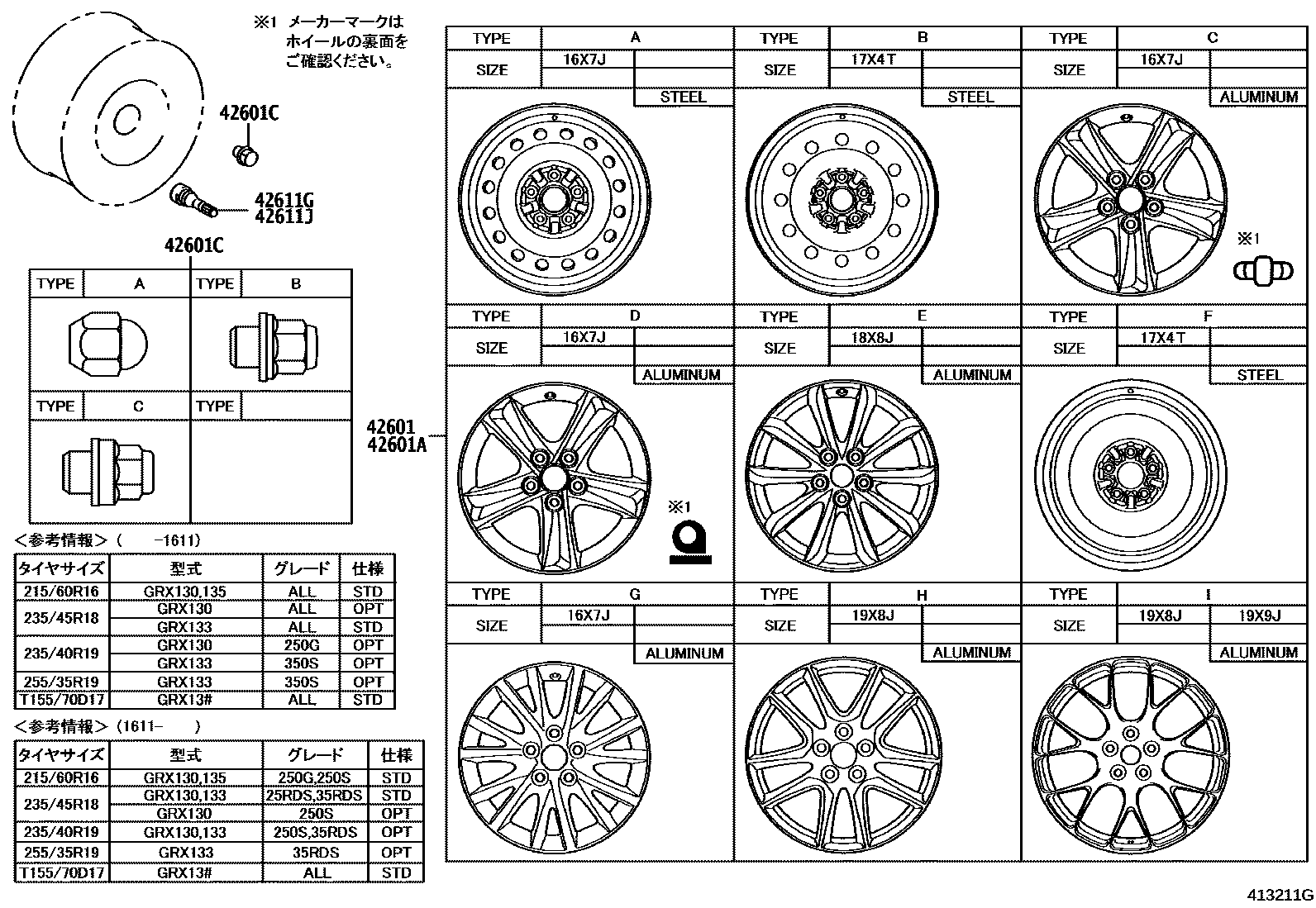

Parts diagram
42601WHEEL, DISC
main42611-22A90×4i201208-201611
main42611-22B50×4i201611
main42611-22B60×4i201611
main4261A-22010×4i200910-201208
main4261A-22040×4i201208-201611
main42611-22A60×4supersedes 42611-22B40i200910-201208
main42611-22B00×4i201709
main42611-22B20×2i201903
main42611-22B30×2i201505-201510
main42611-WY170×4i201210-201611
main42611-WY180×4i201709
main4261A-22020×4supersedes 42611-22B40i201407-201611
42601AWHEEL, DISC (FOR SPARE)
main42611-24430i201611-201908
main42611-24431i201909
main42611-30A60i200910-201208
main42611-50090i201208-201611
sub42611-50091
main42611-53320i201611-201908
main42611-53321i201909
42601CNUT, HUB (FOR AXLE)
main90942-01033×20i200910-201208
main90942-01021×20i201208-201611
main90942-01114×20i201903
42611GVALVE (FOR TUBELESS TIRE)
main90942-05009×4i201611
main90942-05028×4i201903
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i201611

5 parts on this diagram · 4 diagrams in section
