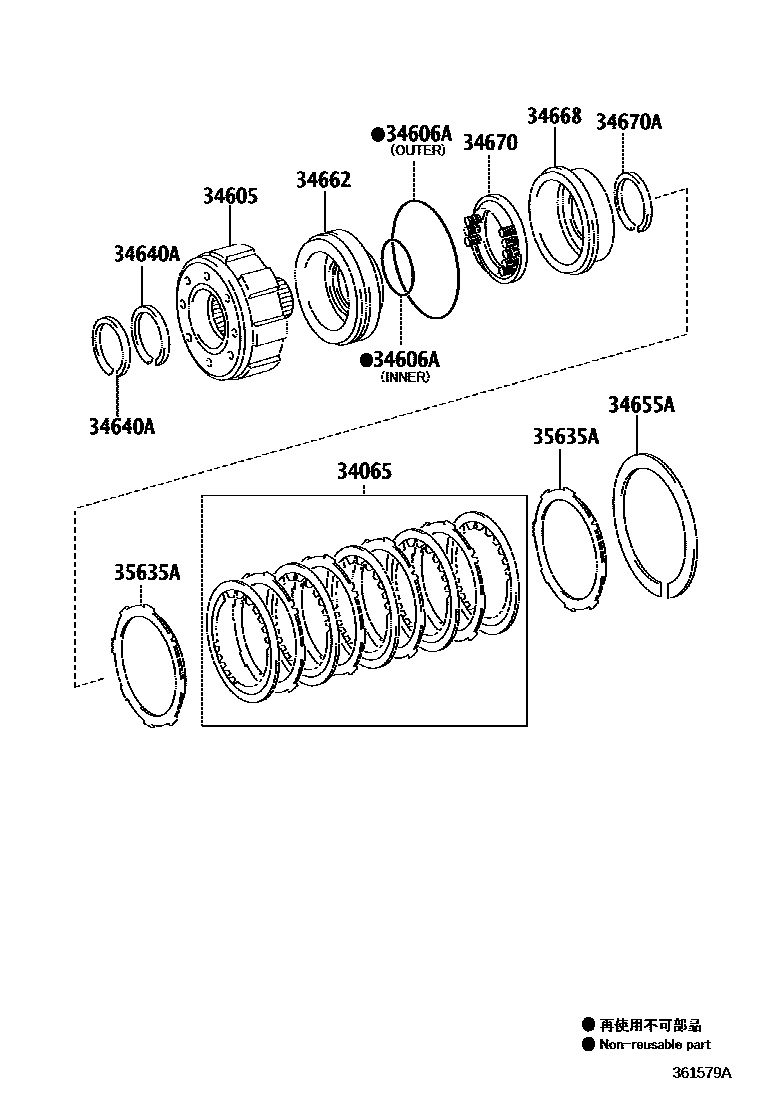

TRANSFER DIRECT CLUTCH, LOW BRAKE & SUPPORT

34065DISC SET, CENTER DIFFERENTIAL CLUTCH

main34065-30010iGRX135200910-201208

34605DRUM SUB-ASSY, TRANSFER DIRECT CLUTCH

main34605-30010iGRX135201208-201611

34606ARING, O (FOR TRANSFER DIRECT CLUTCH PISTON)

main90301-56004iGRX135200910-201208

main90301-99058iGRX135201208-201611

34640ARING, SEAL(FOR TRANSFER CENTER SUPPORT)

main35617-30030×2iGRX135200910-201208

34655ARING, SNAP (FOR TRANSFER DIRECT CLUTCH FLANGE)

main90521-99001iGRX135200910-201208

34662PISTON, CENTER DIFFERENTIAL CLUTCH

main34662-30010iGRX135201208-201611

34668BALANCER, CENTER DIFFERENTIAL CLUTCH PRESSURE

main34668-30010iGRX135200910-201208

34670SPRING ASSY, TRANSFER DIRECT CLUTCH RETURN

main34670-30010iGRX135200910-201208

34670ARING, SNAP (FOR TRANSFER DIRECT CLUTCH RETURN SPRING)

main90520-53002iGRX135200910-201208

35635AFLANGE, CENTER DIFFERENTIAL CLUTCH DISC

main35635-30070iGRX135200910-201208

main35635-30080iGRX135201611

main35635-30090×2iGRX135201208-201611

10 parts on this diagram · 1 diagram in section
