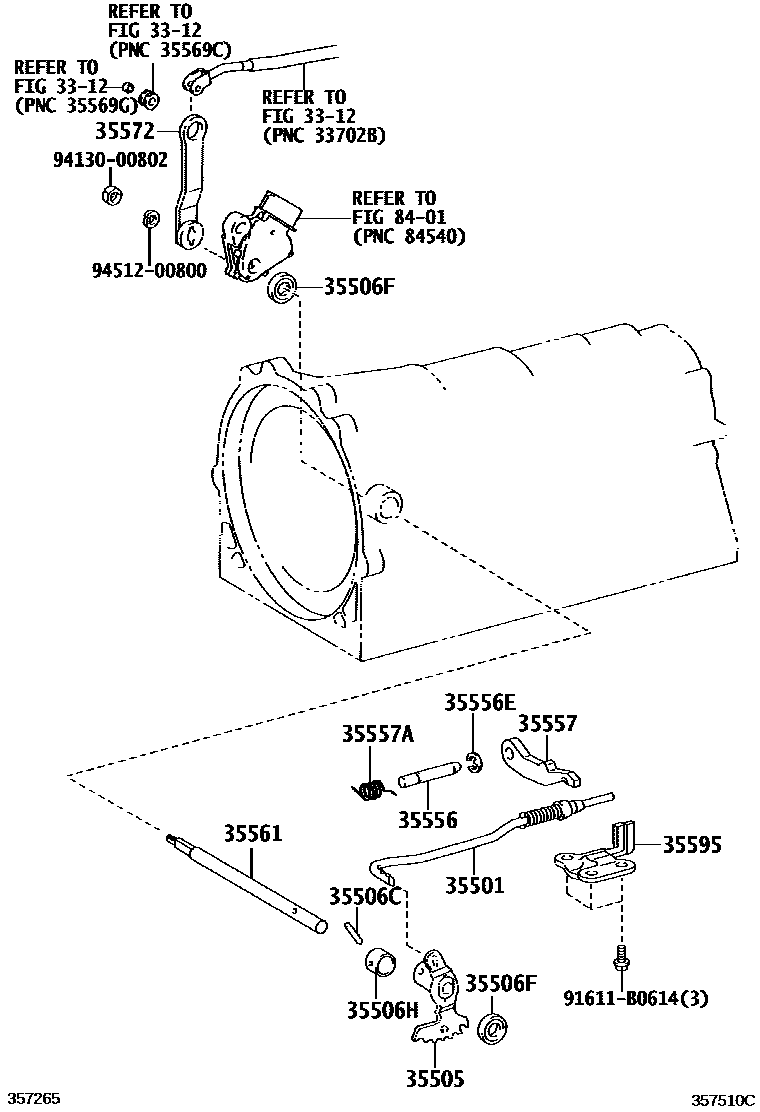

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A760E,A960E 0002 1A760H

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-22030iGRX130200910-201208

main35501-30050iGRX135201611

main35501-30060iGRX130201407-201611

main35501-50010iGRX135201208-201212

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-53030iGRX133,135200910-201208

main35505-53040iGRX130201611

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGRX13#200910-201208

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iGRX13#200910-201208

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGRX13#200910-201208

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGRX13#200910-201208

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGRX13#200910-201208

35557PAWL, PARKING LOCK

main35557-22020iGRX130200910-201005

main35557-22030iGRX130201208-201407

main35557-30050iGRX135201212-201611

main35590-50010iGRX135201208-201212

main35590-50030iGRX133201409-201611

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03130iGRX133,135200910-201208

main90949-03137iGRX130201611

35561SHAFT, MANUAL VALVE LEVER

main35561-50020iGRX130,133200910-201208

main35561-60030iGRX135200910-201208

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-30070iGRX130,133201208-201611

35595BRACKET, PARKING LOCK PAWL

main35595-50010iGRX13#200910-201208

8401

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

17 parts on this diagram · 2 diagrams in section
