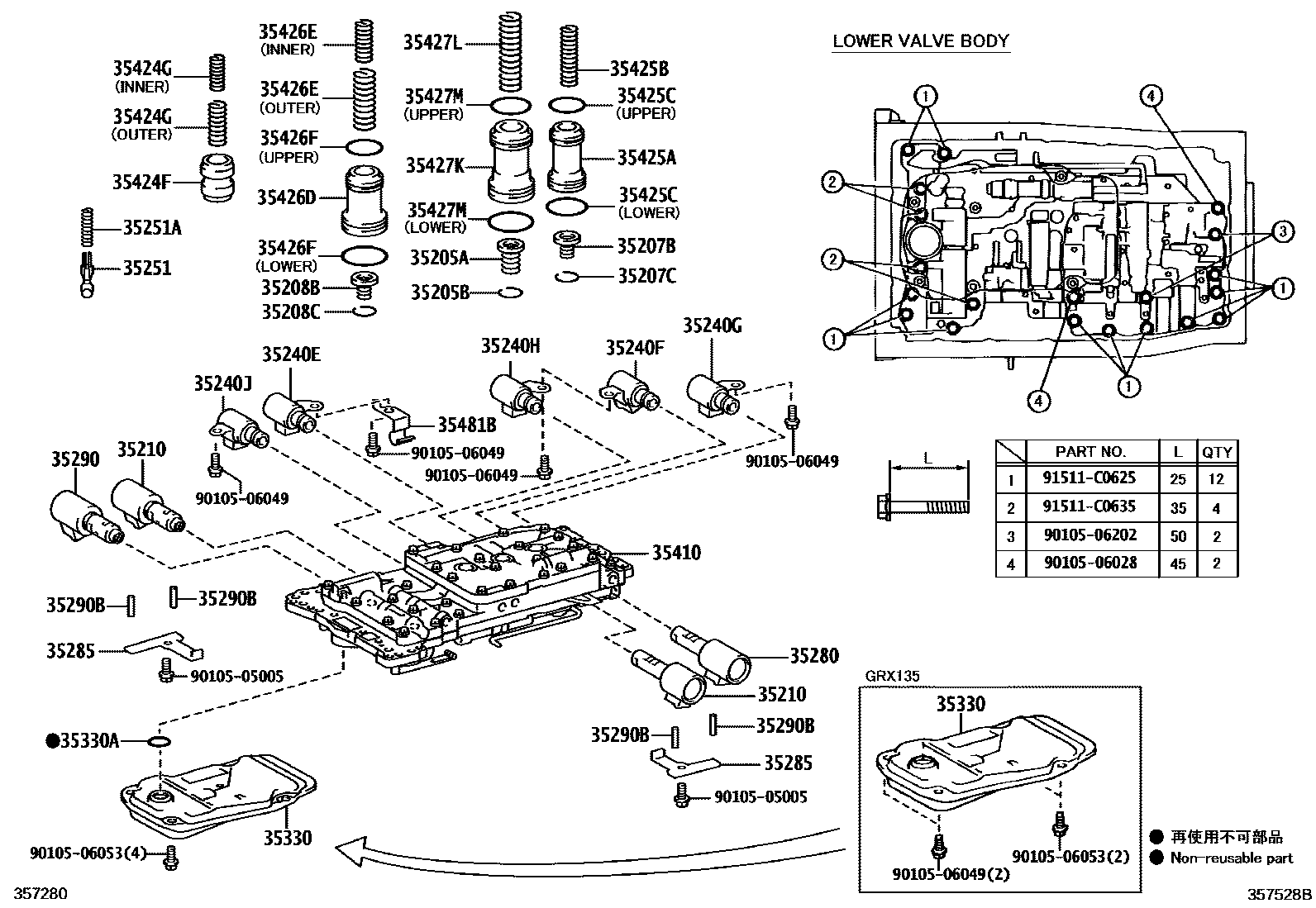

VALVE BODY & OIL STRAINER (ATM)
35205ASPRING SUB-ASSY, B-3 ACCUMULATOR
35205BRING, HOLE SNAP (FOR B-3 ACCUMULATOR SPRING)
35207BSPRING SUB-ASSY, C-2 ACCUMULATOR
35207CRING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
35208BSPRING SUB-ASSY, C-3 ACCUMULATOR
35208CRING, HOLE SNAP (FOR C-3 ACCUMULATOR SPRING)
35210SOLENOID ASSY, CLUTCH CONTROL, NO.1
35240EVALVE, SOLENOID(S1)
35240FVALVE, SOLENOID(S2)
35240GVALVE, SOLENOID(S3)
35240HVALVE, SOLENOID(S4)
35240JVALVE, SOLENOID(SR)
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35280SOLENOID ASSY, LOCK UP CONTROL
35285PLATE, SOLENOID LOCK
35290SOLENOID ASSY, LINE PRESSURE CONTROL
35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)
35330STRAINER ASSY, VALVE BODY OIL
35330ARING, O (FOR OIL STRAINER)
35410BODY ASSY, TRANSMISSION VALVE
35424FVALVE, C-1 ACCUMULATOR
35424GSPRING, COMPRESSION (FOR C-1 ACCUMULATOR VALVE)
35425APISTON, C-2 ACCUMULATOR
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
35426DPISTON, C-3 ACCUMULATOR
35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
35426FRING, O (FOR C-3 ACCUMULATOR PISTON)
35427KPISTON, B-3 ACCUMULATOR
35427LSPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)
35427MRING, O (FOR B-3 ACCUMULATOR PISTON)
35481BCLAMP, VALVE BODY WIRE HARNESS
9010505005
main90105-05005
9010506028
main90105-06028
9010506049
main90105-06049
9010506053
main90105-06053
9010506202
main90105-06202
91511C0625
main91511-C0625
91511C0635
main91511-C0635
40 parts on this diagram · 3 diagrams in section
