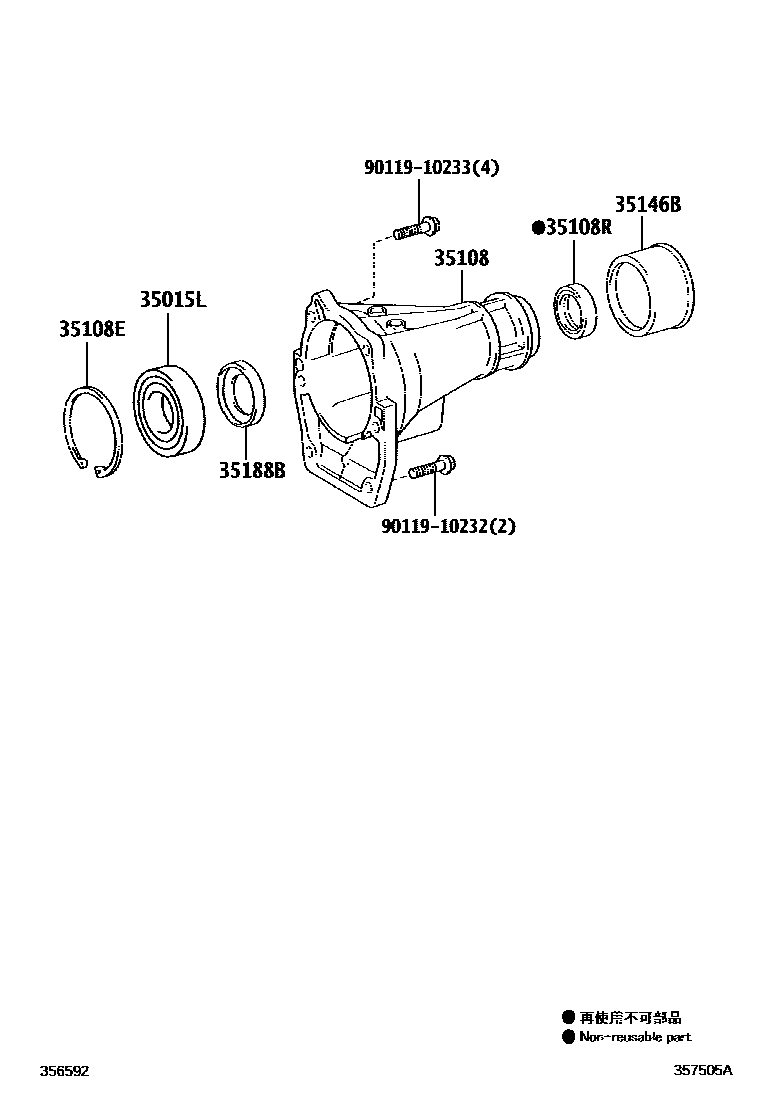

EXTENSION HOUSING (ATM)

0001 1A960E 0002 1A760E

35015LBEARING, RADIAL BALL(FOR TRANSMISSION CASE ADAPTER)

main90363-34001iGRX133200910-201611

main90363-34006iGRX130200910-201611

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-30260iGRX130200910-201611

main35108-50030iGRX133200910-201611

35108ERING, HOLE SNAP (FOR ATM EXTENSION HOUSING)

main90521-66006iGRX130200910-201611

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-40034iGRX130200910-201512

main90311-40045iGRX130201601-201611

main90311-42024iGRX133200910-201611

35146BGASKET, ACCUMULATOR BACK PRESSURE

main33146-30020iGRX130200910-201611

35188BRETAINER, EXTENSION HOUSING BUSH

main35188-35020iGRX130200910-201611

9011910232

main90119-10232

9011910233

main90119-10233

8 parts on this diagram · 2 diagrams in section
