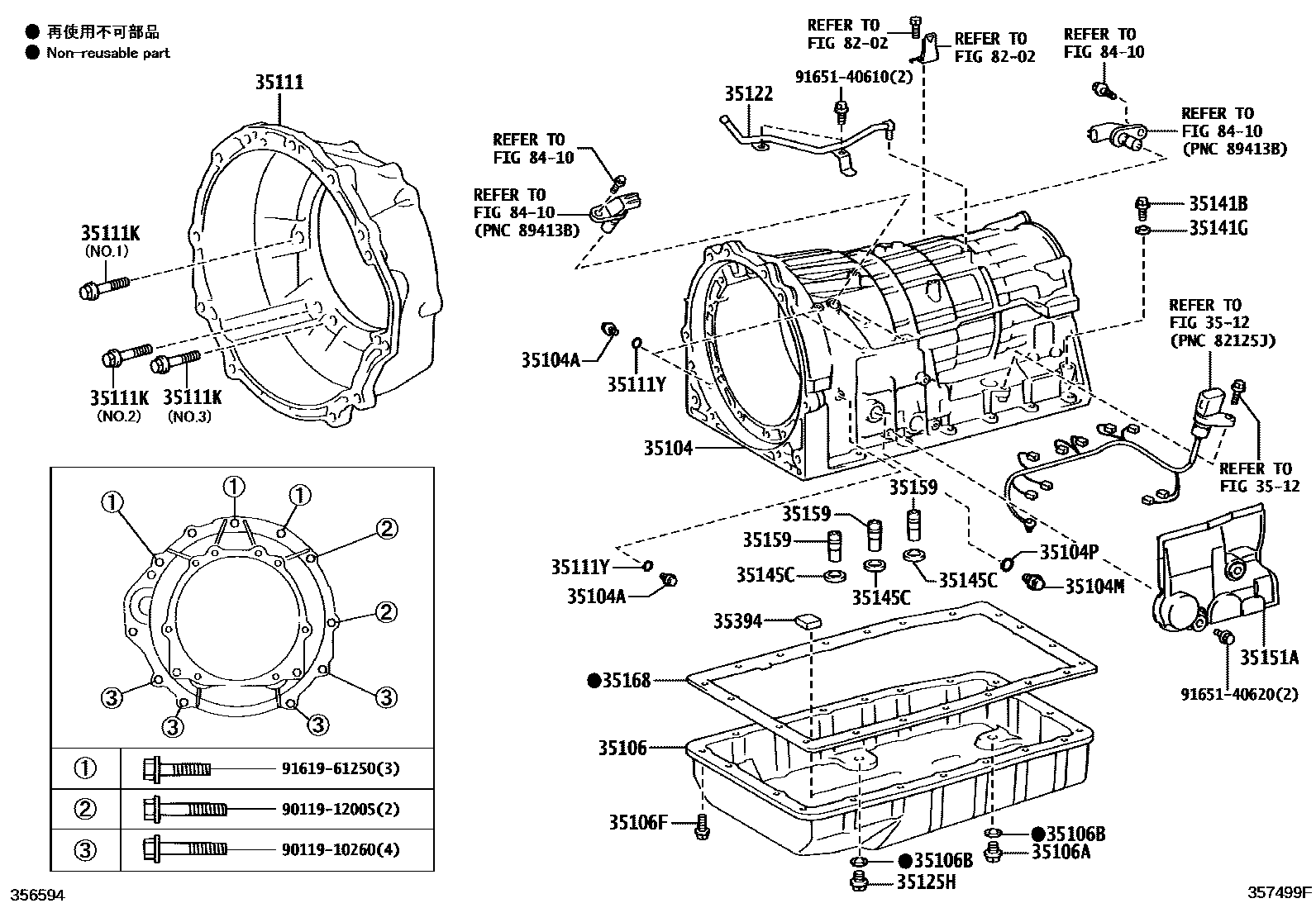

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A960E 0002 1A760E 0003 1A760H

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22080iGRX130201208-201611

main35104-30220iGRX135200910-201208

main35104-50020iGRX133200910-201208

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×5iGRX13#200910-201208

35104MPLUG, REFILL(ATM)

main90341-18059iGRX13#200910-201208

35104PGASKET, REFILL PLUG(ATM)

main90301-15004iGRX13#200910-201208

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22120iGRX130200910-201208

main35106-30260iGRX135201208-201611

main35106-50040iGRX133201208-201611

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGRX13#200910-201208

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iGRX13#200910-201208

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06173×20iGRX13#201208-201611

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22110iGRX130200910-201208

main35111-30190iGRX133,135200910-201208

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232×6iGRX13#200910-201208

main90119-10947×2iGRX13#201611

main90119-12378×2iGRX13#201611

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×5iGRX13#200910-201208

3512

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main90930-03171iGRX133,135201003-201208

main90930-03181iGRX130201611

main90930-03184iGRX133,135200910-201003

35125HPLUG, OVERFLOW(ATM)

main90341-10021iGRX13#201208-201611

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGRX13#200910-201208

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iGRX13#200910-201208

35145CGASKET, TRANSAXLE CASE

main35145-60020×3iGRX13#200910-201208

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-22020iGRX130201208-201611

main35151-30040iGRX133201208-201611

35159GASKET, BRAKE DRUM

main35159-60010×3iGRX13#201611

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22020iGRX130200910-201208

main35168-60010iGRX133,135201611

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iGRX135201611

8202

8410

9011910260

main90119-10260

9011912005

main90119-12005

9161961250

main91619-61250

9165140610

main91651-40610

9165140620

main91651-40620

28 parts on this diagram · 3 diagrams in section
