TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

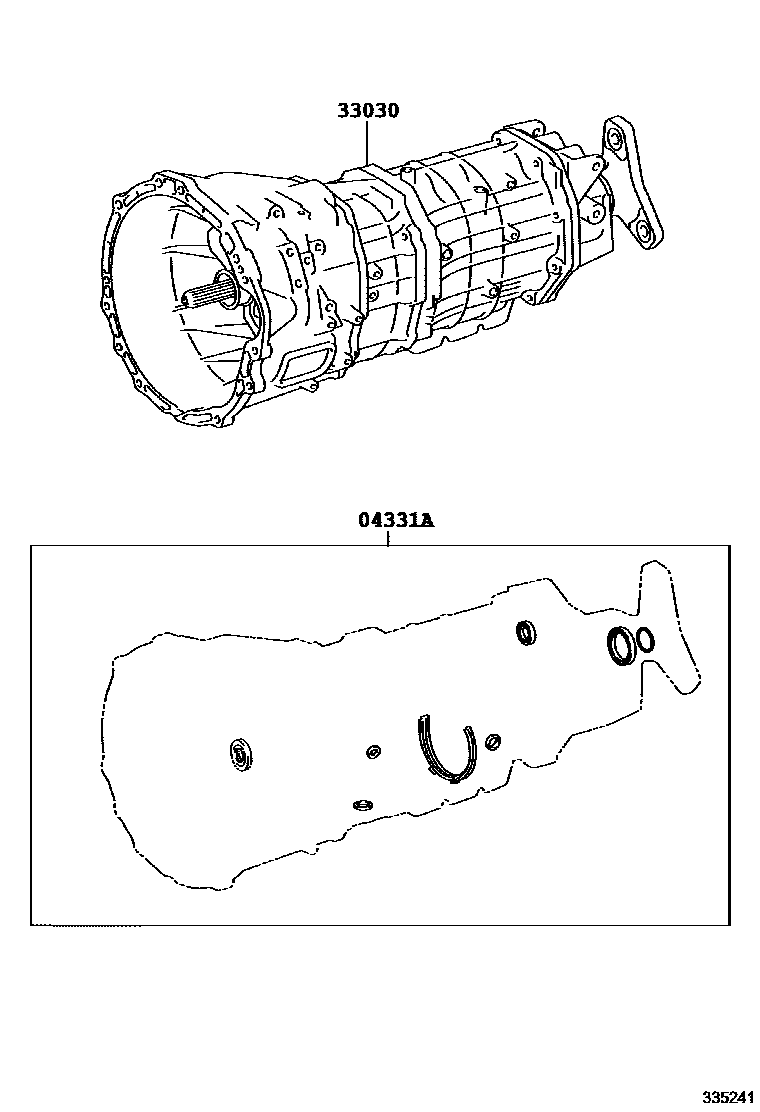

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-22080i201903

main04331-53010i201505-201510

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-22A10i201903

main33030-2A640i201505-201510

2 parts on this diagram · 1 diagram in section
