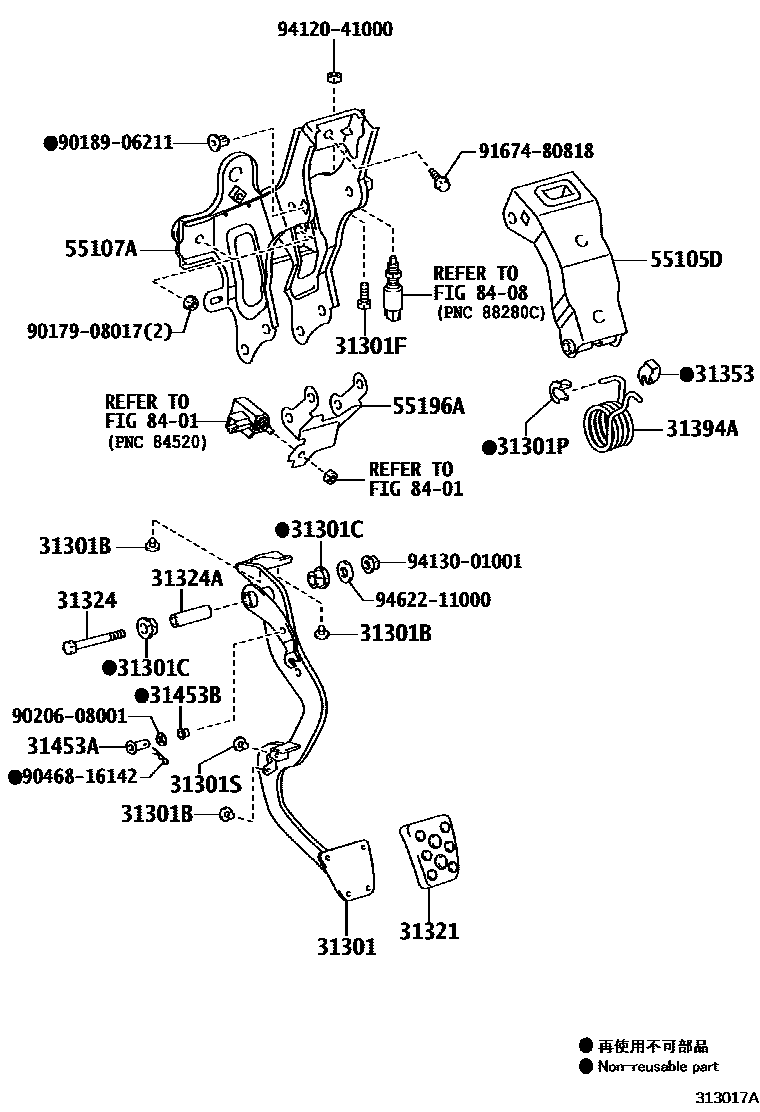

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1GRMN 6MT,��������� 0003 1GRMN 6MT,���������

31301PEDAL SUB-ASSY, CLUTCH

main31301-53100iGRX133..350S201505-201510

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036×3iGRX133..350S201505-201510

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iGRX133..350S201505-201510

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iGRX133..350S201505-201510

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iGRX133..350S201505-201510

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90541-06046iGRX133..350S201505-201510

31321PAD, CLUTCH PEDAL

main31321-53010iGRX133..350S201505-201510

31324SHAFT, CLUTCH PEDAL

main90101-10164iGRX133..350S201505-201510

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10105iGRX133..350S201505-201510

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iGRX133..350S201505-201510

31394ASPRING, PEDAL W/HOOK

main31394-53010iGRX133..350S201505-201510

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iGRX133..350S201505-201510

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08036iGRX133..350S201505-201510

55105DBRACKET SUB-ASSY, CLUTCH PEDAL

main55105-53010iGRX133..350S201505-201510

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-53040iGRX133..350S201505-201510

55196ABRACKET, CLUTCH START SWITCH MOUNTING

main55196-53020iGRX133..350S201505-201510

8401

8408

9017908017

main90179-08017

9018906211

main90189-06211

9020608001

main90206-08001

9046816142

main90468-16142

9167480818

main91674-80818

9412041000

main94120-41000

9413001001

main94130-01001

9462211000

main94622-11000

26 parts on this diagram · 2 diagrams in section
