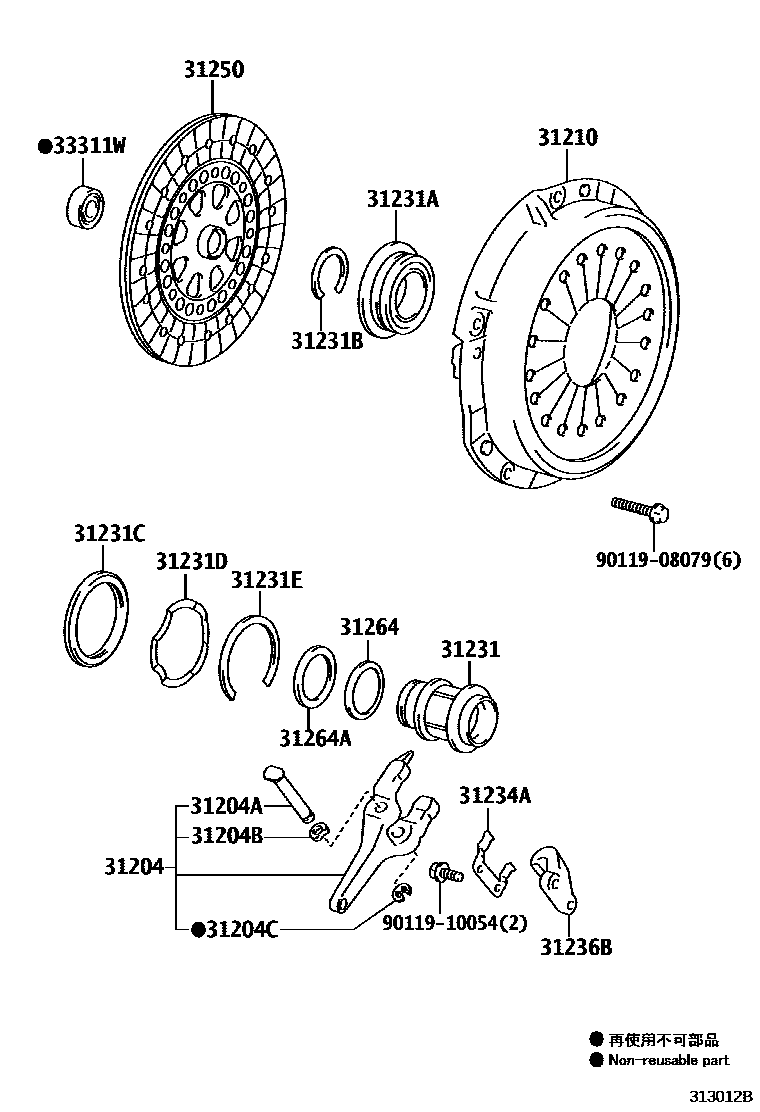

CLUTCH & RELEASE FORK

31204FORK SUB-ASSY, CLUTCH RELEASE

main90206-80001

main31204-53010

main90249-12044

main96160-00900

31204APIN(FOR CLUTCH RELEASE FORK)

31204BWASHER, WAVE(FOR CLUTCH RELEASE FORK)

31204CRING, E(FOR CLUTCH RELEASE FORK)

31210COVER ASSY, CLUTCH

main31210-22180

31231HUB, CLUTCH RELEASE BEARING

main90520-75001

main90903-63001

main90560-79001

main90206-12006

main31231-53040

main96152-00500

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

31231BRING, SNAP(FOR CLUTCH RELEASE HUB)

31231CWASHER, PLATE(FOR CLUTCH RELEASE BEARING)

31231DWASHER, WAVE(FOR CLUTCH RELEASE BEARING)

31231ERING, SHAFT SNAP(FOR CLUTCH RELEASE BEARING)

31234ASPRING, RELEASE FORK SUPPORT

31236BSUPPORT, RELEASE FORK

31250DISC ASSY, CLUTCH

main31250-22380

31264SPRING, CLUTCH THRUST CONE

main90560-50001

main31264-14060

31264AWASHER, PLATE(FOR CLUTCH THRUST CONE SPRING)

33311WBEARING (FOR INPUT SHAFT)

9011908079

main90119-08079

9011910054

main90119-10054

19 parts on this diagram · 1 diagram in section
