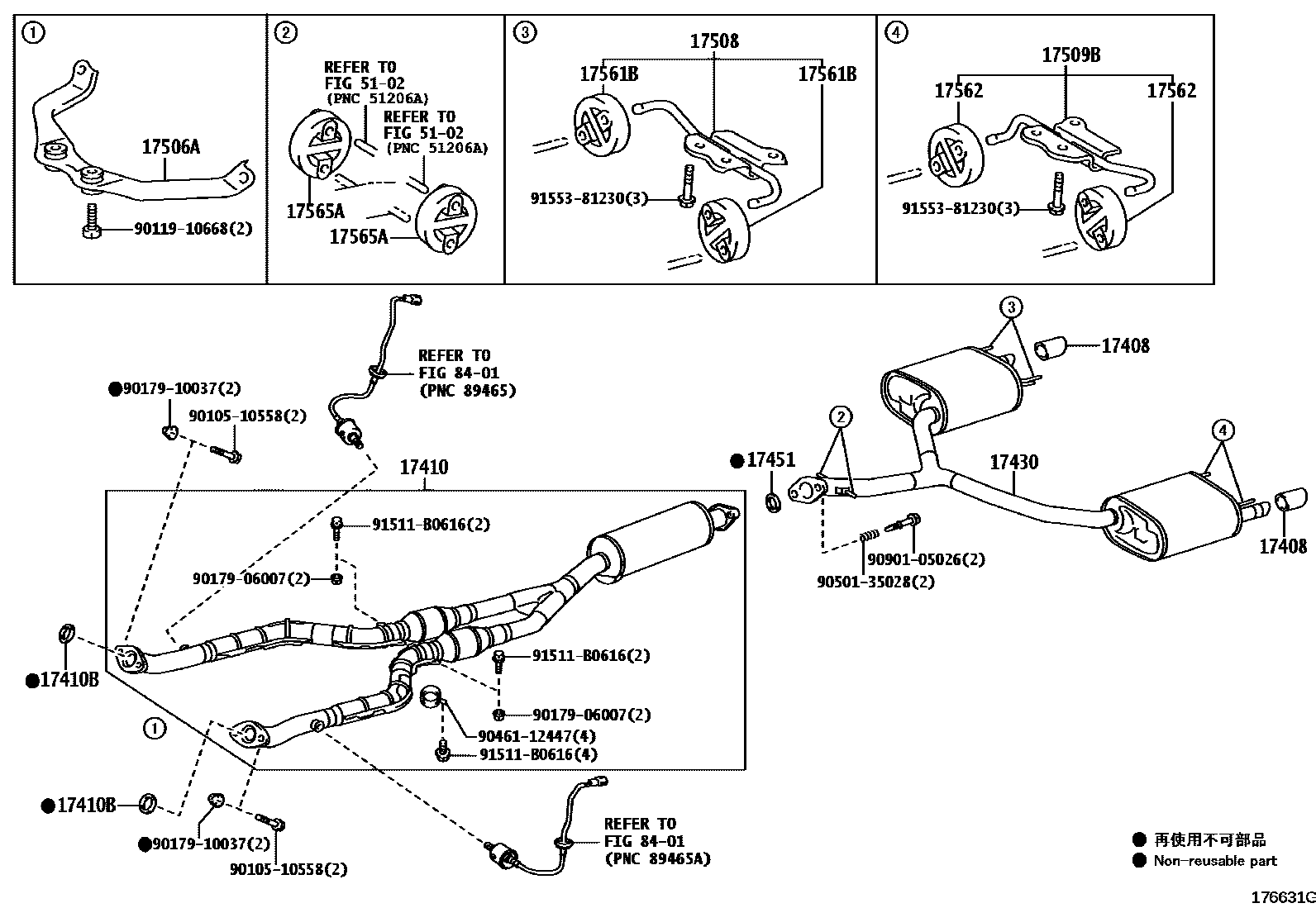

EXHAUST PIPE

0001 1 0002 1 0003 1G'S OR GRMN OR GRS

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-74080×2i2GRFSE,4GRFSE..GRX13#201208-201611

17410PIPE ASSY, EXHAUST, FRONT

main17410-31A70i2GRFSE..GRX133200910-201001

main17410-31A71i2GRFSE..GRX133201002-201205

main17410-31A72i2GRFSE..GRX133201206-201208

main17410-31A80i4GRFSE..GRX130200910-201001

main17410-31A81i4GRFSE..GRX130201002-201205

main17410-31A82i4GRFSE..GRX130201206-201208

main17410-31A90i4GRFSE..GRX135200910-201001

main17410-31A91i4GRFSE..GRX135201002-201205

main17410-31A92i4GRFSE..GRX135201206-201208

main17410-31F70i2GRFSE..GRX133201611

main17410-31F80i4GRFSE..GRX130201611

main17410-31F90i4GRFSE..GRX135201611

17410BGASKET, EXHAUST PIPE

main90917-06078×2i2GRFSE,4GRFSE..GRX13#200910-201208

17430PIPE ASSY, EXHAUST, TAIL

main17430-31880i2GRFSE..GRX133200910-201208

main17430-31890i4GRFSE..GRX130,135200910-201111

main17430-31891i4GRFSE..GRX130,135201112-201208

main17430-31E70i2GRFSE..GRX133..350S201505-201510

main17430-WY040supersedes 17430-31880i2GRFSE..GRX133201709

main17430-WY050i4GRFSE..GRX130..250G201210-201611

main17430-WY120supersedes 17430-31880i2GRFSE..GRX133201903

17451GASKET, EXHAUST PIPE

main17451-31011i2GRFSE,4GRFSE..GRX13#200910-201102

main17451-31012i2GRFSE,4GRFSE..GRX13#201103-201208

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-31030i4GRFSE..GRX130200910-201208

main17506-31040i4GRFSE..GRX135200910-201208

sub17506-31041

17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3

main17508-31110i2GRFSE,4GRFSE..GRX13#200910-201208

main17508-31150i2GRFSE..GRX133..350S201505-201510

17509BSUPPORT, EXHAUST PIPE NO.4

main17509-31070i2GRFSE,4GRFSE..GRX13#201208-201611

main17509-31100i2GRFSE..GRX133..350S201505-201510

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22030×2i2GRFSE,4GRFSE..GRX13#200910-201208

main17565-28010×2i2GRFSE..GRX133..350S201505-201510

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-22030×2i2GRFSE,4GRFSE..GRX13#201208-201611

main17565-28010×2i2GRFSE..GRX133..350S201505-201510

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040×2i2GRFSE,4GRFSE..GRX13#200910-201208

main17565-28010×2i2GRFSE..GRX133..350S201505-201510

5102

8401

9010510558

main90105-10558

9011910668

main90119-10668

9017906007

main90179-06007

9017910037

main90179-10037

9046112447

main90461-12447

9050135028

main90501-35028

9090105026

main90901-05026

91511B0616

main91511-B0616

9155381230

main91553-81230

22 parts on this diagram · 3 diagrams in section
