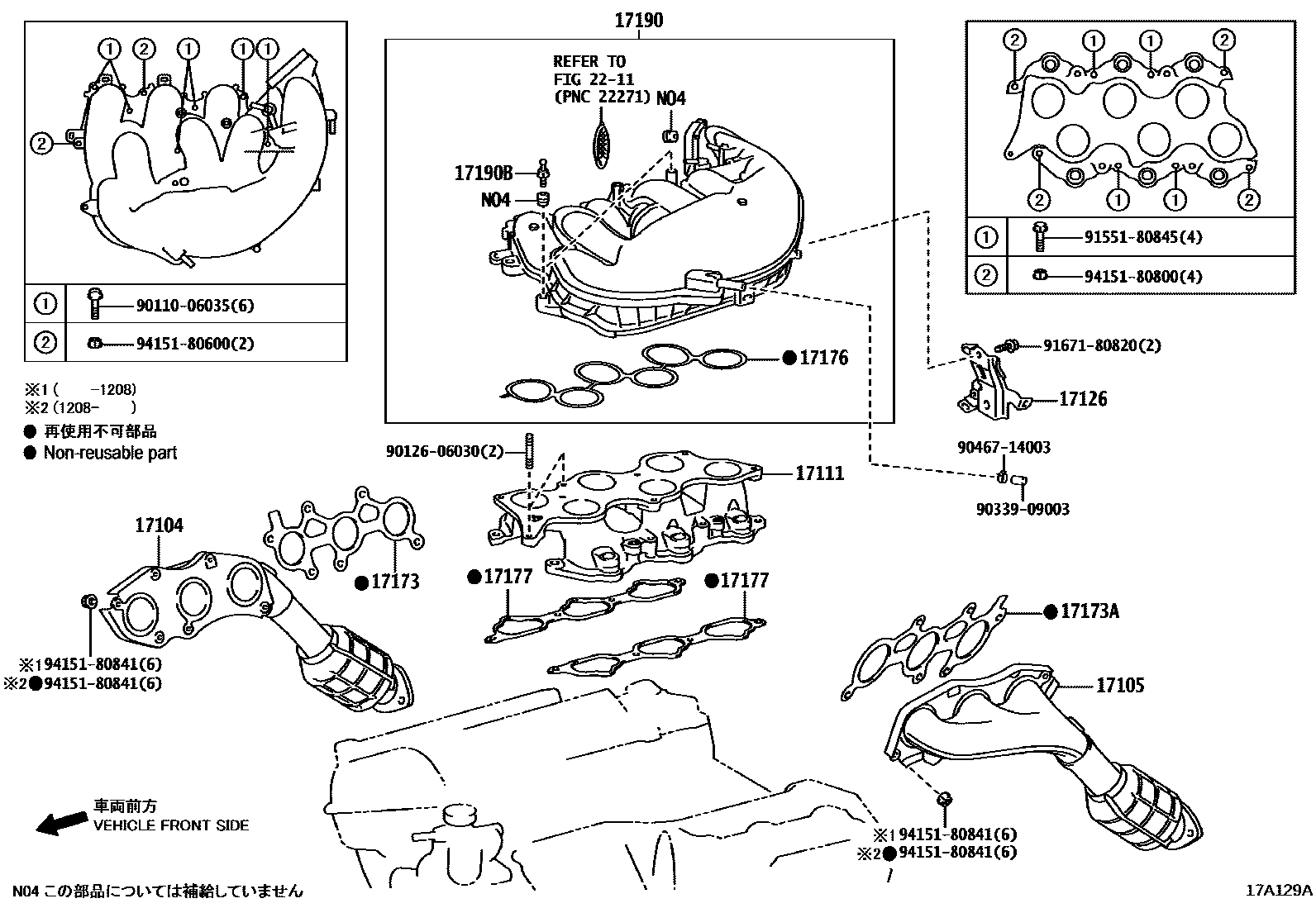

MANIFOLD

0001 1 0002 1

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17140-31570i2GRFSE..GRX133200910-201208

main17140-31580i4GRFSE..GRX135200910-201208

main17140-31640i4GRFSE..GRX130200910-201208

main17140-31760i2GRFSE,4GRFSE..GRX130,133201611

main17140-31780i4GRFSE..GRX135201208-201611

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17150-31570i2GRFSE..GRX133200910-201208

main17150-31580i4GRFSE..GRX135200910-201004

main17150-31640i4GRFSE..GRX130200910-201208

main17150-31700i4GRFSE..GRX135201005-201208

main17150-31760i2GRFSE,4GRFSE..GRX130,133201208-201611

main17150-31780i4GRFSE..GRX135201208-201611

17111MANIFOLD, INTAKE

main17111-31170i2GRFSE..GRX133200910-201107

main17111-31171i2GRFSE..GRX133201107-201208

main17120-31020i4GRFSE..GRX130,135201208-201611

17126STAY, SURGE TANK, NO.2

main17126-31020i4GRFSE..GRX130,135201208-201611

main17126-31050i2GRFSE..GRX133200910-201208

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31020i2GRFSE,4GRFSE..GRX13#200910-201208

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-31020i2GRFSE,4GRFSE..GRX13#200910-201208

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-31050×3i4GRFSE..GRX130,135201611

main17176-31060i2GRFSE..GRX133201208-201410

main17176-31120i2GRFSE..GRX133201611

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-31020×2i4GRFSE..GRX130,135200910-201110

main17177-31021×2i4GRFSE..GRX130,135201611

main17177-31060×2i2GRFSE..GRX133200910-201107

main17177-31061×2i2GRFSE..GRX133201611

17190TANK ASSY, INTAKE AIR SURGE

main17190-31040i4GRFSE..GRX130,135201611

main17190-31100i2GRFSE..GRX133201208-201410

main17190-31170i2GRFSE..GRX133201611

17190BBRACKET, INTAKE AIR SURGE TANK, NO.2

main11254-31020×2i2GRFSE..GRX133200910-201208

2211

9011006035

main90110-06035

9012606030

main90126-06030

9033909003

main90339-09003

9046714003

main90467-14003

9155180845

main91551-80845

9167180820

main91671-80820

9415180600

main94151-80600

9415180800

main94151-80800

9415180841

main94151-80841

20 parts on this diagram · 2 diagrams in section
