ENGINE OIL COOLER

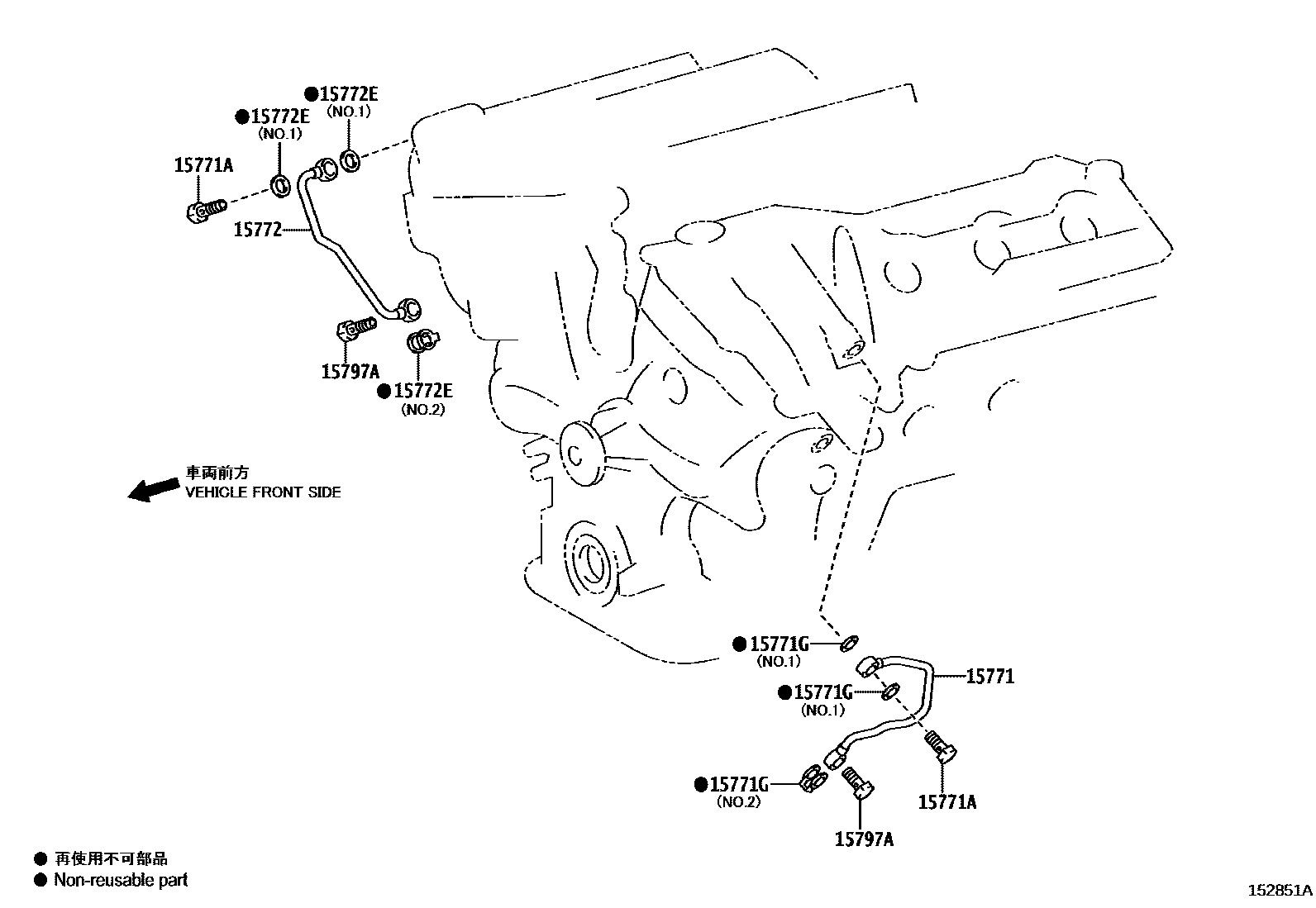

Parts diagram

15771PIPE, OIL, NO.1

main15771-31010i200910-201208

15771AUNION(FOR OIL PIPE)

main90401-16043×2i200910-201208

15771GGASKET

main90430-16012×2i200910-201208

main90430-16016i201208-201611

15772PIPE, OIL, NO.2

main15772-31010i200910-201208

15772EGASKET(FOR OIL PIPE)

main90430-16012×2i200910-201208

main90430-16016i201208-201611

15797ABOLT, OIL CHECK VALVE

main15797-31010×2i201611

6 parts on this diagram · 1 diagram in section
