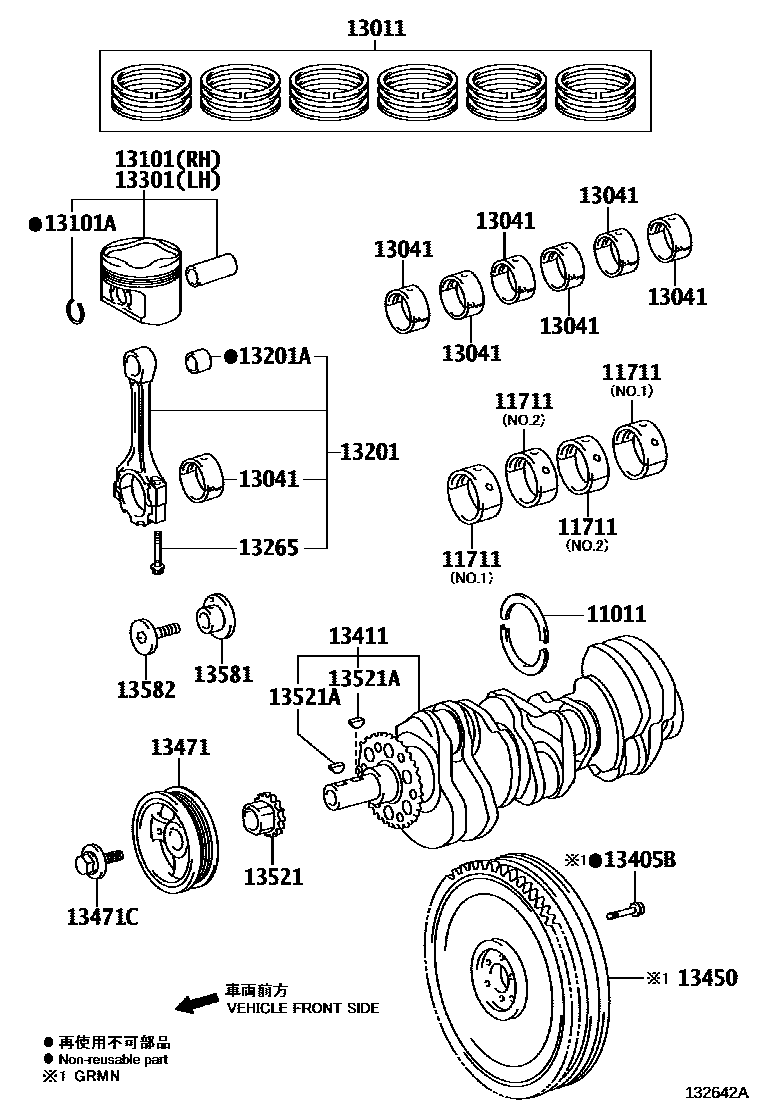

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
11711BEARING, CRANKSHAFT
13011RING SET, PISTON
13041BEARING, CONNECTING ROD
MARK1
MARK2
MARK3
MARK4
MARK1
MARK2
MARK3
MARK4
MARK 1
MARK 2
MARK 3
MARK 4
13101PISTON SUB-ASSY, W/PIN
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
13301PISTON SUB-ASSY, W/PIN, LH
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13450FLYWHEEL ASSY, W/DAMPER
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13581SHAFT, IDLE GEAR, NO.1
13582SHAFT, IDLE GEAR, NO.2
19 parts on this diagram · 1 diagram in section
