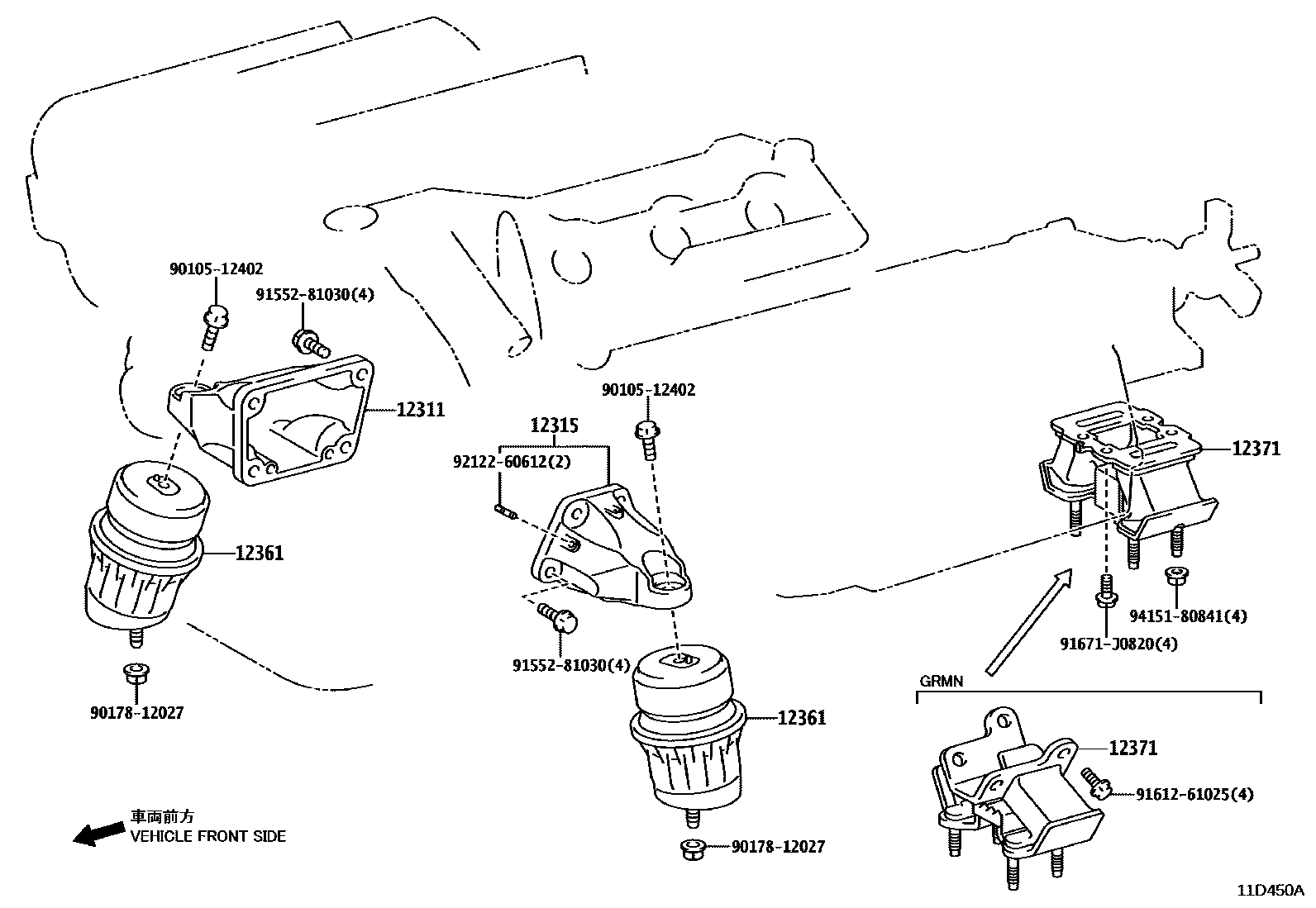

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31040i2GRFSE,4GRFSE..GRX130,133200910-201208

main12311-31050i4GRFSE..GRX135201208-201611

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-31010i2GRFSE,4GRFSE..GRX130,133201208-201611

main12302-31020i4GRFSE..GRX135200910-201208

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31100×2i4GRFSE..GRX130201208-201411

main12361-31101×2i4GRFSE..GRX130201611

main12361-31111×2i4GRFSE..GRX135201611-201705

main12361-31112×2i4GRFSE..GRX135201706

main12361-31200×2i2GRFSE..GRX133200910-201208

main12361-31201×2i2GRFSE..GRX133201412-201611

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-31070i2GRFSE,4GRFSE..GRX130,133201208-201611

main12371-31081i4GRFSE..GRX135201208-201508

main12371-31082i4GRFSE..GRX135201509-201611

main12371-31400i2GRFSE..GRX133201903

9010512402

main90105-12402

9017812027

main90178-12027

9155281030

main91552-81030

9161261025

main91612-61025

91671J0820

main91671-J0820

9212260612

main92122-60612

9415180841

main94151-80841

11 parts on this diagram · 2 diagrams in section
