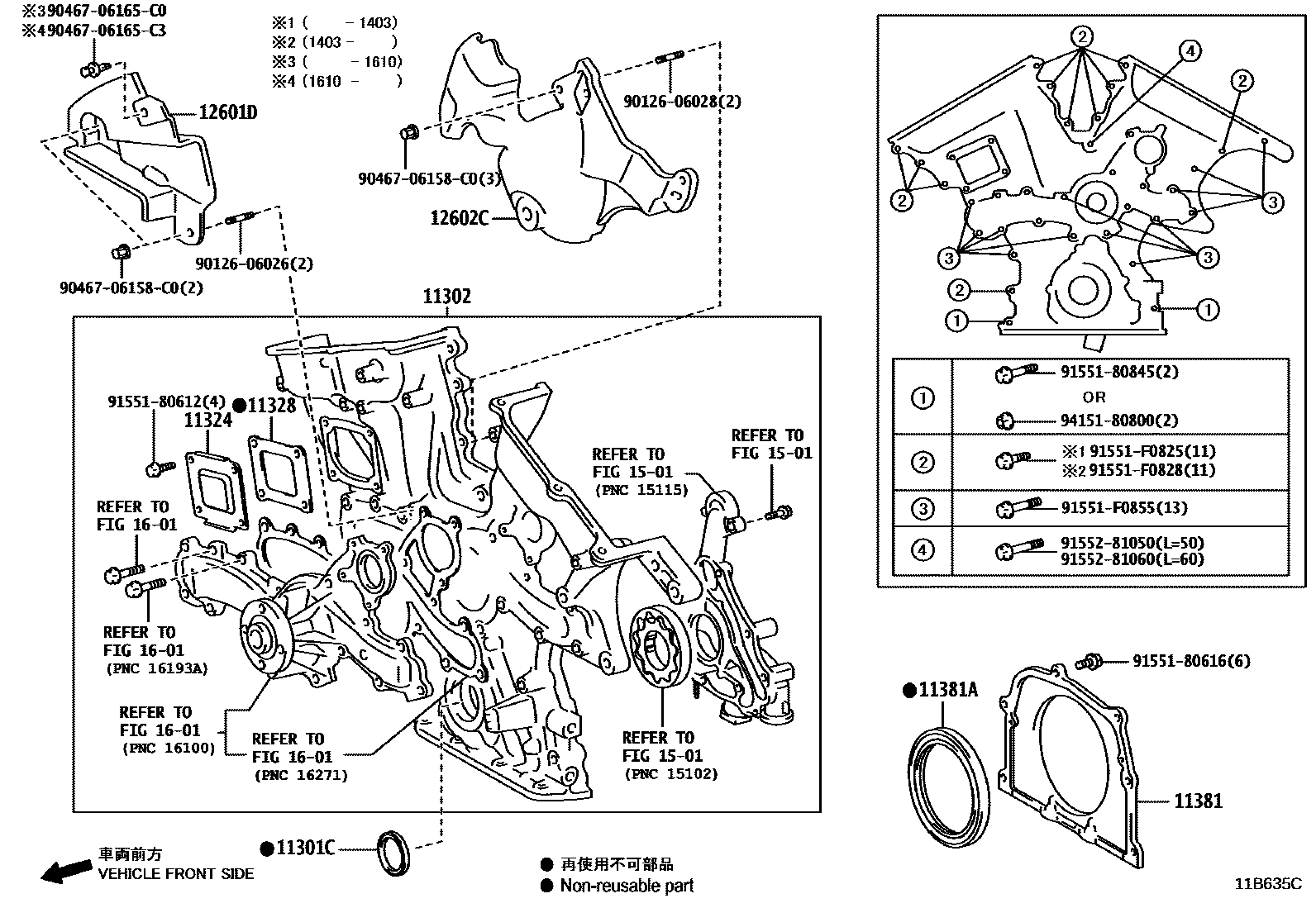

TIMING GEAR COVER & REAR END PLATE

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42045i2GRFSE,4GRFSE..GRX13#201208-201611

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-31042i2GRFSE,4GRFSE..GRX13#200910-201208

sub91552-81060

main11310-31044i2GRFSE,4GRFSE..GRX13#201504-201611

11324PLATE, TIMING CHAIN COVER

main11324-31020i2GRFSE,4GRFSE..GRX13#200910-201208

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i2GRFSE,4GRFSE..GRX13#200910-201208

11381RETAINER, ENGINE REAR OIL SEAL

main11381-31021i2GRFSE,4GRFSE..GRX13#201611

11381ASEAL, ENGINE REAR OIL

main90311-92009i2GRFSE,4GRFSE..GRX13#200910-201009

main90311-92010i2GRFSE,4GRFSE..GRX13#201009-201208

main90311-92011i2GRFSE..GRX133201611

sub90311-92012

12601DCOVER, ENGINE, NO.1

main12601-31010i2GRFSE,4GRFSE..GRX13#200910-201208

12602CCOVER, ENGINE, NO.2

main12602-31012i2GRFSE,4GRFSE..GRX13#200910-201201

main12602-31013i2GRFSE,4GRFSE..GRX13#201201-201208

1501

1601

9012606026

main90126-06026

9012606028

main90126-06028

9046706158C0

main90467-06158C0

9046706165C0

main90467-06165C0

9046706165C3

main90467-06165C3

9155180612

main91551-80612

9155180616

main91551-80616

9155180845

main91551-80845

91551F0825

main91551-F0825

91551F0828

main91551-F0828

91551F0855

main91551-F0855

9155281050

main91552-81050

9155281060

main91552-81060

9415180800

main94151-80800

24 parts on this diagram · 1 diagram in section
