ENGINE OVERHAUL GASKET KIT

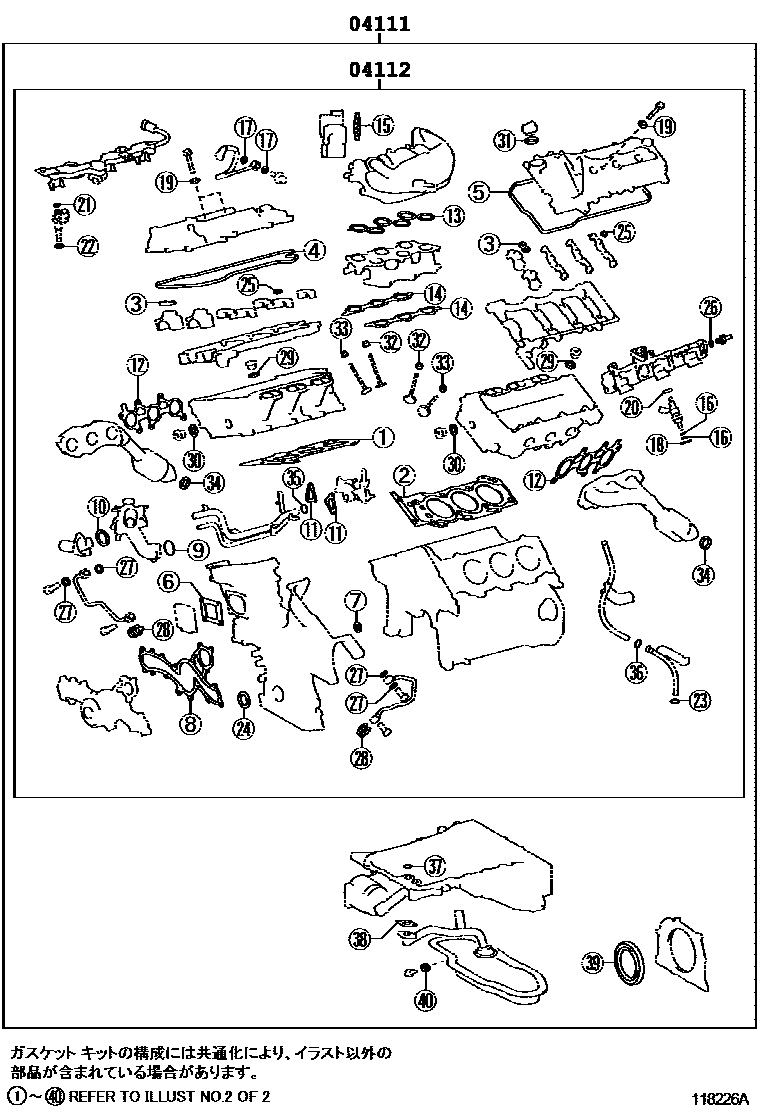

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-31601i201108-201112
main04111-31602i201112-201208
main04111-31760i200910-201108
main04111-31780i200910-201108
main04111-31781i201108-201110
sub04111-31B40
main04111-31782i201110-201111
main04111-31783i201208-201611
sub04111-31D60
main04111-31784i201611
main04111-31941i201411-201503
main04111-31942i201611
04112GASKET KIT, ENGINE VALVE GRIND
main04112-31330i200910-201108
main04112-31331i201108-201110
sub04112-31800
main04112-31332i201110-201111
main04112-31333i201611
sub04112-31334
main04112-31360i200910-201108
main04112-31362i201108-201112
main04112-31363i201208-201411
main04112-31681i201411-201611

2 parts on this diagram · 14 diagrams in section
